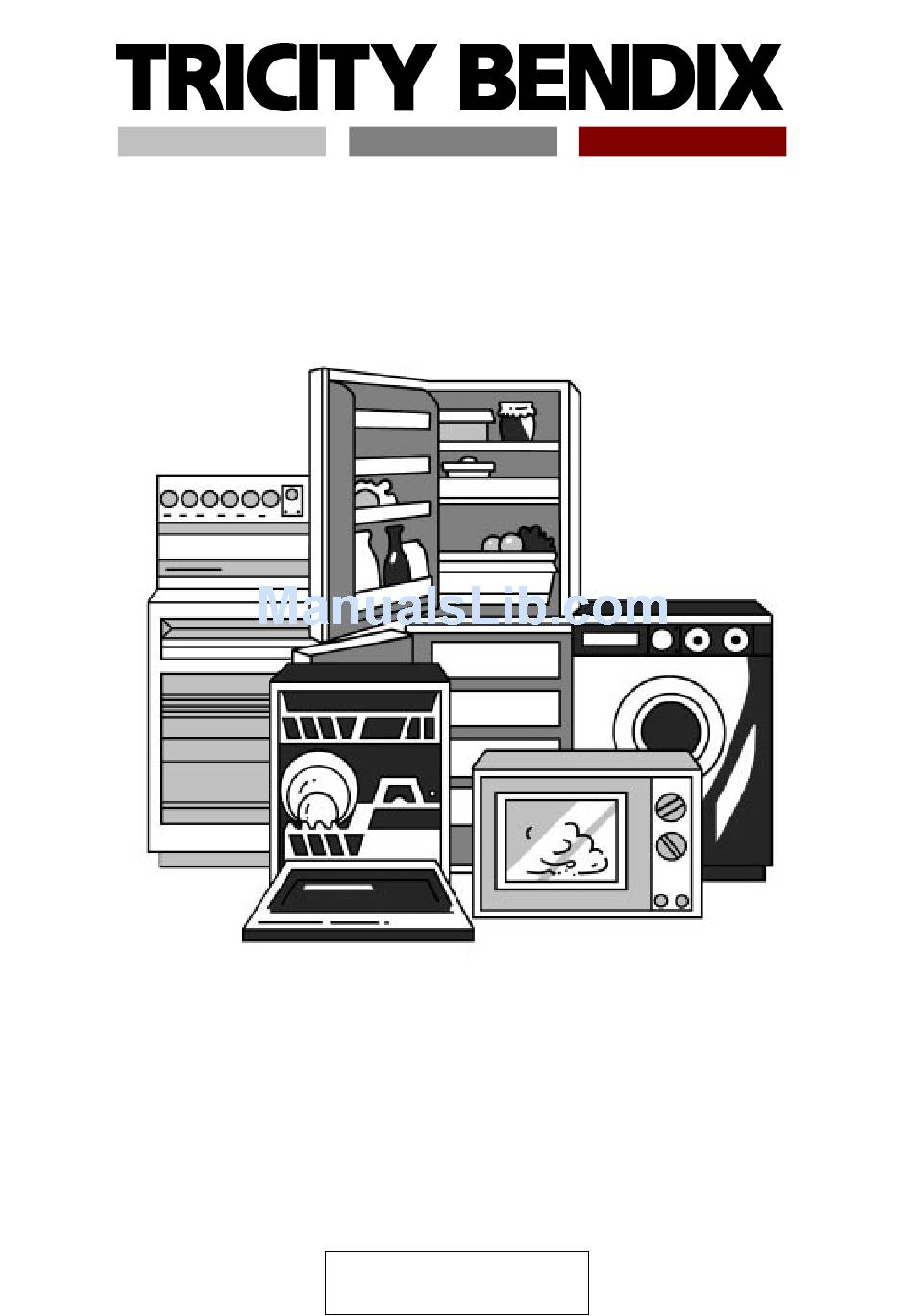

- Page 1 Better Products. Better Value. OPERATING AND INSTALLATION INSTRUCTIONS MODEL NO. SI 452...
-
Page 2: Technical Details
TECHNICAL DETAILS MODEL NO. SI 452 Voltage: 230/240 Volts AC 50Hz Wattage: 10.3/11.2 kW Height: 900mm Width: 550mm Depth: 600mm This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. -
Page 3: Table Of Contents
CONTENTS Technical Details ................. 2 Contents . - Page 4 CONTENTS Oven Cooking Chart ................23 Roasting Chart .
-
Page 5: Preface
They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee. To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker. -
Page 6: Safety
SAFETY THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT THEM ALL BEFORE INSTALLING OR USING THE COOKER. PLEASE READ CAREFULLY BEFORE INSTALLATION This appliance is heavy and care must be taken when moving it. Ensure that all packaging, both inside and outside the appliance, been... -
Page 7: After Use
Always use oven gloves to remove and replace food in the oven. Similarly always use oven gloves to remove and replace the grill pan handle when grilling. Recommendations Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position. -
Page 8: Introduction
INTRODUCTION WARNING: THIS APPLIANCE MUST BE EARTHED RATING PLATE Record the model and serial numbers on the back cover of this instruction book, from the rating plate. This is situated on the lower front frame of the appliance and can be seen upon opening the oven door. -
Page 9: Reversible Main Oven Door
Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob. It is important to ensure that the appliance is level after installation. Levelling feet are fitted to the front of the appliance to accommodate uneven floors. REVERSIBLE MAIN OVEN DOOR If you require the oven door to be hinged on the opposite side, you will need to contact a qualified... -
Page 10: Getting To Know Your Cooker
GETTING TO KNOW YOUR COOKER THE CONTROL PANEL FEATURES Programmer Main Oven Temperature Control Main Oven Indicator Neon Top Oven Temperature Control Top Oven Indicator Neon Dual Grill Control Hotplate Controls... -
Page 11: The Programmer
THE PROGRAMMER AUTO DISPLAY MINUTE MINDER BUTTON COOKING HOURS BUTTON STOP TIME BUTTON COOKING SYMBOL MANUAL SELECTOR BUTTON DECREASE CONTROL INCREASE CONTROL NOTE: STEP 1 BELOW MUST BE FOLLOWED BEFORE THE OVEN WILL OPERATE MANUALLY. 1. SET THE TIME OF DAY When the electricity supply is first switched ON, the display will flash both 0.00 and AUTO. - Page 12 Release the minute minder button and the display will return to the time of day after 5 seconds. During the operation of the minute minder, the remaining time period can be shown in the display by pressing the minute minder button ).
- Page 13 Note: When the automatic timed period starts, the oven neon will cycle ON and OFF during cooking. TO SET THE TIMER TO SWITCH OFF ONLY Ensure the electricity supply is switched ON and that the correct time of day is displayed, e.g.
- Page 14 5. THINGS TO NOTE The time of day cannot be altered whilst the AUTO symbol is lit. A programme may be cancelled by returning the cooking hours to zero. Press the cooking hours button ( ) depress ( - ) button until 0.00 is displayed.
-
Page 15: The Ceramic Hob
THE CERAMIC HOB CAUTION: DO NOT USE THE APPLIANCE IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE APPLIANCE IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT THE CUSTOMER SERVICE CENTRE. To operate the dual hotplate, turn the control knob clockwise for the full area or anti-clockwise for the centre section. -
Page 16: Deep Fat Frying
To prolong the life of the hotplates:- Never use utensils with a skirt, e.g. a bucket Never use an asbestos mat Never leave the hotplates ON when not covered with a saucepan. Ensure that hob and saucepans are clean and dry before the start of cooking to reduce cleaning. -
Page 17: The Dual Grill
THE DUAL GRILL USES OF THE GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 18: Hints And Tips
To correctly locate the grill pan on the shelf, ensure that the cut out on the underside of the handle bracket locates over the front bar of the shelf. To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to tend the food during cooking, or the carrier shelf can be lifted away from the cooker and rested on a heat resistant work surface. -
Page 19: The Top Oven
THE TOP OVEN USES OF THE TOP OVEN The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche. -
Page 20: Hints And Tips
HINTS AND TIPS Most cooking should be carried out using an oven shelf positioned in one of the shelf runners. Larger roasts and casseroles should normally be cooked in the main oven. However, they may be cooked on a flat shelf from the main oven placed on the base of the top oven provided there is sufficient room for air circulation around the food. -
Page 21: The Main Fan Oven
THE MAIN FAN OVEN USES OF THE FAN OVEN PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. -
Page 22: To Fit The Main Oven Shelves
TO FIT THE MAIN OVEN SHELVES The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected. Back of the Oven Straight Rods HINTS AND TIPS... -
Page 23: Oven Cooking Chart
OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10° C to suit individual preferences and requirements. FOOD Biscuits Bread Bread rolls/buns Cakes: Small & Queen Sponges Victoria Sandwich Madeira... -
Page 24: Roasting Chart
ROASTING CHART ROASTING CHART INTERNAL TEMPERATURES - Rare : 50-60°C; Medium : 60-70°C; Well :70-80°C MEAT Beef Beef, boned Mutton and Lamb Pork and Veal Chicken Turkey and Goose Duck Pheasant Rabbit Potatoes with meat Potatoes without meat The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. -
Page 25: Defrost Feature
DEFROST FEATURE USES OF DEFROST FEATURE This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones etc. -
Page 26: Care And Cleaning
CARE AND CLEANING BEFORE CLEANING ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN BEFORE SWITCHING OFF AT THE ELECTRICITY SUPPLY. CLEANING MATERIALS Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer. - Page 27 TO REMOVE DISCOLOURATIONS OR WHITE AND SILVER MARKS These marks sometimes give the impression of being in or underneath the hob glass. They can almost always be removed provided they have not become excessively burnt on. Follow the instructions under 'To Remove more Stubborn Marks' above. If this is unsuccessful, make up a paste of one part water to three parts Cream of Tartar and leave on the discoloured areas overnight.
-
Page 28: Cleaning The Outside Of The Cooker
CLEANING THE OUTSIDE OF THE COOKER DO NOT use abrasive cleaning materials, or scourers on the outside of the cooker as some of the finishes are painted and damage may occur. Regularly wipe over the control panel, oven doors and cooker sides using a soft cloth and liquid detergent. -
Page 29: Cleaning Between The Outer And Inner Door Glass
REPLACING THE OVEN LIGHT BULB The type of bulb required is a 300C 25 watt small Edison Screw. Part number 572 491 5431-00/1 (Available through Tricity Bendix service centres). CAUTION: Disconnect the appliance from the electricity supply before replacing the bulb. -
Page 30: Something Not Working
SOMETHING NOT WORKING? We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one, which you can solve yourself without the expense of a service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee. -
Page 31: Service And Spare Parts
It is a recommendation by the manufacturer that annual servicing of the product is done by the manufacturers approved service organisation. In the event of your appliance requiring service Tricity Bendix Limited have an arrangement with Electrolux Group Service. Before calling out an Engineer, please ensure you have read the details under the heading "Something Not Working?"... -
Page 32: Customer Service Centres
CUSTOMER SERVICE CENTRES The Regional Electricity Companies are responsible for the servicing of cookers sold by their own outlets. The telephone numbers can be found in the telephone directory. Service for cookers bought from other outlets can be obtained by calling the nearest Customer Service Centre on the numbers given below. - Page 33 EH FK G KA KY1-16 ML GLASGOW PA1-23, PH1-7 GUERNSEY All Codes SA33-39 HAVERFORDWEST SA41-44 SA61-73 HR1-9 LD1-8 HEREFORD SY7 ,18 NP7-8 YO11-18 HULL YO25 HU1-19 DN14 IV1-28, 30-36, 52-56, INVERNESS PH19-26, 42-44 KW1-14 INVERNESS PH30-41 IV40-51 ISLE OF WIGHT PO30-41 ISLE OF ARRAN KA27...
- Page 34 LANCASTER LA1-23 BD DN1-7, 10-12, HD HG HX LEEDS LS S WF YO1-3, 5-8 DE NG1-22 & 25 DN21 sub codes 1 2 & 5 only, LN1, 2 , 4,5,6 LINCOLN LN3 sub codes 4 & 5 only LN8-10 NG 23,24 31-34 PE1-13, 20-25 LIVERPOOL FY PR L WN CH CW WA (Not WA 14/15)
- Page 35 REDRUTH TR1-20, 26, 27 PL10-15, 17, 18, 22-35 ROTHSAY PA20 SHETLAND Own Sales SHETLAND Own Sales SHETLAND SY1-6 SHREWSBURY SY8-17 SY19-22 SOUTH COAST BN16-18. GU27-35 PO1-22. BH DT SO TR21-25 DN 8, 9, DN15-20 DN21 sub codes 3,4 only SOUTH HUMBERSIDE DN31-40 LN (3 sub code 6 only), 7 LN11-13...
-
Page 36: Guarantee Conditions
All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent. Any appliance or defective part replaced shall become the Company's property. - Page 38 SI 452 311351700...
- Page 40 This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed. Better Products. Better Value. TRICITY BENDIX,99 OAKLEY ROAD, LUTON, BEDFORDSHIRE, LU4 9QQ A Division of Emaco Limited Registered in England No. 176547 Registered Office. 101 Oakley Road, Luton LU4 9RJ. MODEL NO.
