Nature's Generator Wind Turbine User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Nature's Generator
Wind Turbine
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Nature's Generator Wind Turbine

Summary of Contents for Nature's Generator Wind Turbine

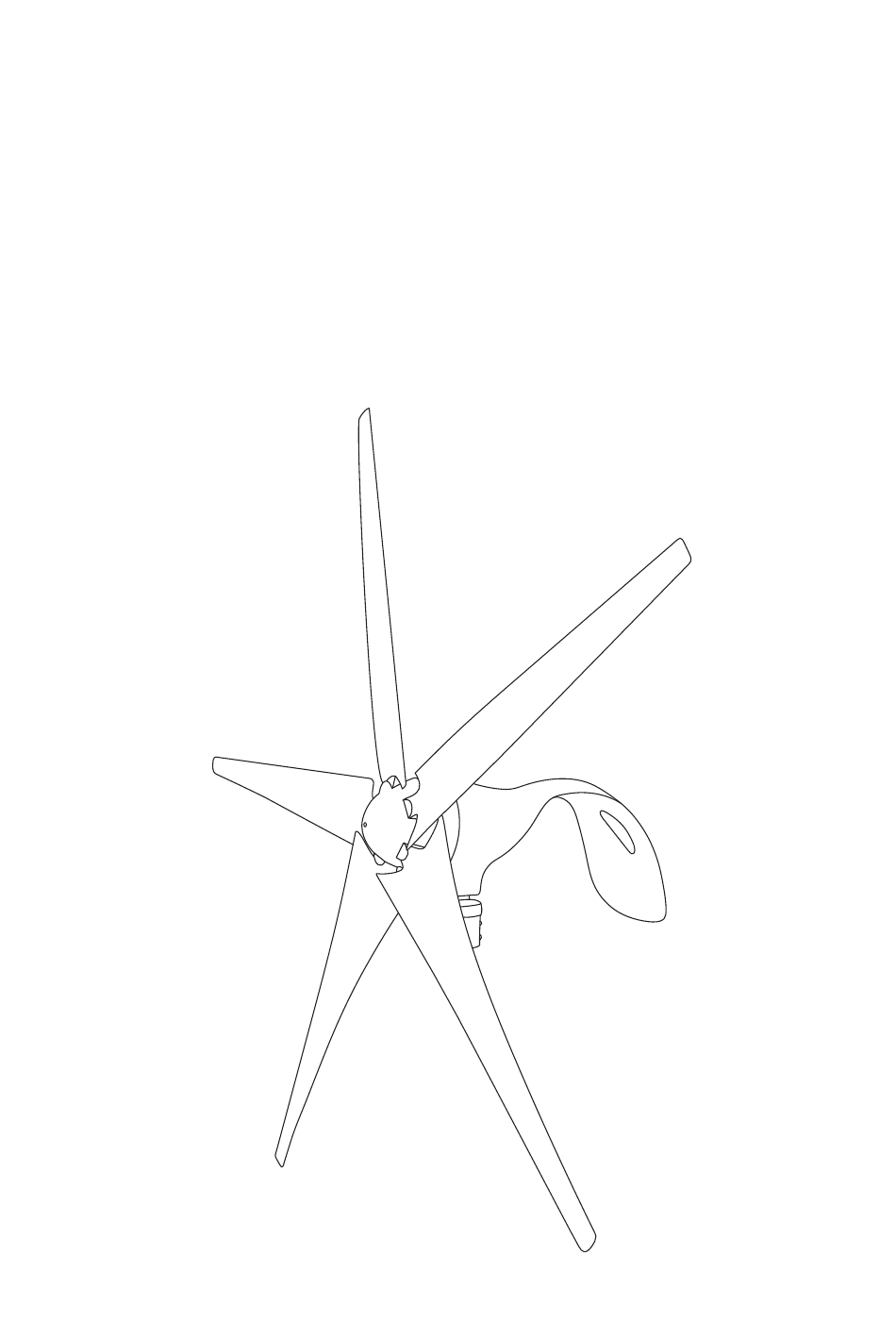

  • Page 1 Nature's Generator Wind Turbine User Manual...

  • Page 2: Table Of Contents

    Warning Cau�on Introduc�on Unpack Your Nature's Generator Wind Turbine Get to Know Your Nature's Generator Wind Turbine Using Your Nature's Generator Wind Turbine How to Choose the Loca�on How to Choose the Tower How to Install your Nature’s Generator Wind Turbine How to Connect your Nature's Generator Wind Turbine to your Nature’s Generator...

  • Page 3: Welcome

    6. Only use a�achments/accessories specified by the manufacturer. 7. Refer all servicing to qualified service personnel. Servicing is required when the Nature's Generator Wind Turbine has been damaged in any way, such as cord or plug is damaged or the Nature's Generator Wind Turbine has been dropped.

  • Page 4: Cau�On

    Stop using the Nature's Generator Wind Turbine and refer servicing to qualified service personnel under the following condi�ons: • If your Nature's Generator Wind Turbine has been dropped or damaged in any way. • When your Nature's Generator exhibits a dis�nct change in performance.

  • Page 5: Introduc�On

    Unpack Your Nature’s Generator Wind Turbine 1. Nature’s Generator Wind Turbine main body 2. Hub 3. Nose cone 4. Blades x 5 5. 100-foot-long wind turbine cable Visit NaturesGenerator.com for More Information...
  • Page 6 6. Controller box 7. This user manual 8. Accessory bag that includes. M6 bolt x 12 (2 spare pieces) M6 nut x 12 (2 spare pieces) M6 flat washer x 12 (2 spare pieces) M6 lock washer x 12 (2 spare pieces) M16 lock nut x 1 M16 lock washer x 1 Rubber pad x 1...

  • Page 7: Get To Know Your Nature's Generator Wind Turbine

    Nature’s Generator (not included) wind turbine cable Complete Electrical System Your Nature’s Generator Wind Turbine comes with 100 foot long wind turbine cable and controller box. It is a complete electrical system to recharge your Nature’s Generator. Built-in Protections Your Nature’s Generator Wind Turbine controller box has built in over current protec�on and over voltage protec�on that prevent possible damage to your Nature’s Generator.
  • Page 8 Grounding Every wind turbine and turbine tower need to be grounded at the tower base. Grounding the tower at its base may help prevent shocks to persons touching the tower due to lightning or electrical faults. Please take the �me to review the Na�onal Electrical Code (NEC) and local building and zoning regula�ons for complete requirements.

  • Page 9: Using Your Nature's Generator Wind Turbine

    Safety must be the primary concern when selec�ng the moun�ng loca�on. Install your Nature’s Generator Wind Turbine so there is no possibility of accidental contact with rota�ng blades even if it requires installing the wind turbine in a less than ideal loca�on. Safety has precedence over efficiency.

  • Page 10: How To Choose The Tower

    Cau�on: Do not connect your Nature’s Generator Wind Turbine with Nature’s Generator un�l all installa�on has been completed. Step 1: Run the wind turbine cable through the pipe and drag the connector close to the Nature’s Generator. The female connector shall be close to your Nature's Generator Wind Turbine and the male connector shall be close to your Nature's Generator.
  • Page 11 Please adjust the size of rubber pad as needed. Rubber pad Step 4: Firmly �ghten the yaw clamp bolts with the 6mm hex key. Be sure that your Nature's Generator Wind Turbine is securely a�ached to the pipe. Visit NaturesGenerator.com for More Information...
  • Page 12 Step 5: Place one of the blades on one of the hub socket. Place a lock washer and then a flat washer on the blot and then insert the bolt through the blade ad the socket. Place a nut on the other side of socket and �ghten the bolt with the 5mm hex key. Repeat this process on all five blades.
  • Page 13 Step 7: Insert the 8mm hex key into the rotor sha�. Hold the blade assembly and �ghten the M16 nut by turning the 8mm hex key counter clockwise. If needed, please use the extender (not included) to extend 8mm hex key to �ghten the lock nut. Finally, spin the blades slowly to be sure they turn freely and the hub does move in along the rotor sha�.

  • Page 14: How To Connect Your Nature's Generator Wind

    How to connect your Nature’s Generator Wind Turbine to your Nature’s Generator Step 1: Connect the wind turbine cable to the round connector from one side of the controller box by pushing and twis�ng the connectors. Step 2: Connector the square connector from the other side of controller box to your Nature’s Generator “WIND INPUT”...
  • Page 15 Step 3: When your Nature's Generator Wind Turbine spins at certain speed, you will see the whole display on your Nature's Generator lights up, if your Nature's Generator main power is switched off. It means your Nature's Generator Wind Turbine is recognized by your Nature's Generator, but it is not powerful yet to recharge your Nature's Generator.

  • Page 16: Maintenance

    4. Set your power drill at speed mode and use an 8mm hex drive bit (not included, please purchase separately) to spin the rotor sha�. 5. You will see the LCD display on your Nature's Generator lights up and then your wind turbine icon illuminates and the ba�ery bar starts running. It means your Nature’s Generator Wind Turbine should berecharging your Nature’s Generator fine.

  • Page 17: Technical Specifica�Ons

    Technical Specifications Material: Wind turbine blades: fiberglass nylon composite Wind turbine body: cast aluminum alloy with powder coa�ng Wind turbine cable: 12AWG pure copper cable Connectors: Wind turbine cable connectors: weatherproof M19 3P connectors. Wind input connectors: Anderson connectors. Yaw: fits 1.5 Inch schedule 40 pipes or towers Power Ra�ng:...

  • Page 18: Limited Warranty

    Products and parts replaced under this warranty become the property of Nature's Generator and are not returned to you. If service of products or parts are required a�er the Warranty Period expires, you must pay all labor and parts charges.
  • Page 19 What does the Warranty not Cover? This warranty does not cover: • Cosme�c damage • Damage due to acts of God, such as lightning strikes • Accident • Misuse • Abuse • Negligence • Commercial use • Modifica�on of any part of the product •...
  • Page 20 V2.0 ENGLISH 20-0317...
