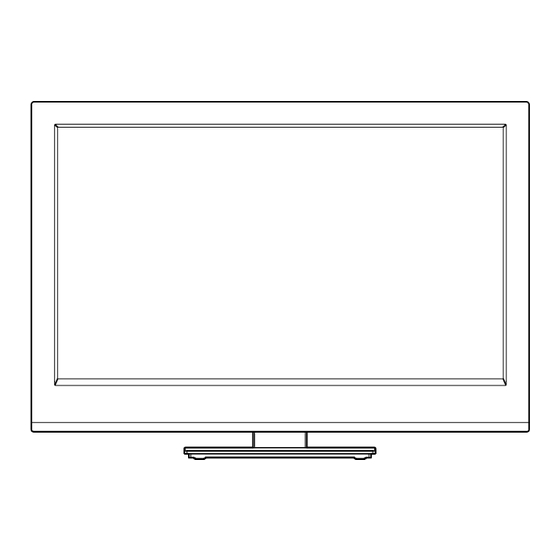

- Page 1 LT-22HG22J LCD-TV Operating Instructions Before operating the unit, please read this manual thoroughly.
-
Page 2: Features
[European Union] This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited is: JVC Technical Services Europe GmbH Postfach 10 05 04 61145 Friedberg Germany... -
Page 3: Table Of Contents
Information for Users on Disposal of Old Contents Equipment and Batteries [European Union] Features ............2 These symbols indicate that the electrical and Contents ............3 electronic equipment and the battery with this Important safety information......4 symbol should not Important Instruction ........5 be disposed of as Location of controls ........7 general household... -
Page 4: Important Safety Information
Important safety information This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. • Although this appliance has been carefully manufactured and rigorously checked prior to leaving the factory, as with all electrical appliances it is possible for problems to develop. -
Page 5: Important Instruction
Important safety information How to attach the stand NOTE: • Unplug the AC cord from the AC INPUT terminal. • Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit. •... - Page 6 Important safety information WARNING • To prevent fire, never place any type of candle or open flame on the top or near the TV set. Moving the unit or carrying by hand When the unit is moved a long way, unplug the power cord and disconnect the antenna, connecting cables and any fall-prevention apparatus.
-
Page 7: Location Of Controls
Location of controls Description of Indicators and Controls 1. Remote sensor (Standby/On) indicator: The LED indicator lights up red in standby mode, and blue in the power ON mode. 3. Loudspeakers (Power)-button: Preparation: Connect power-cable to AC220~240V/50Hz. a) If standby-LED is red, you may power-off. To power-off, press power-button 1x and release. For confirmation, standby-LED will change to dark. -
Page 8: Remote Control
Remote Control Function Page Enter standby mode or turn on the power Display program information Select an input source Select picture format Select channel Select Teletext page Enter password Select between the available broadcast 13, 14 audio Display the EPG (Electronic Progr. Guide) Activate menu In menu, return 1 step / exit menu Cursor buttons... - Page 9 Remote Control Install the batteries Use batteries type UM4 (AAA-Size). Do not use old or weak batteries. The remote control may not work properly with a weak voltage from such batteries. Replace exhausted batteries with new ones. Never try to recharge normal batteries - this could cause an explosion.
-
Page 10: Antenna Connection
Antenna connection Note: Before you connect other appliances: • To avoid potentially damaging your set, make sure all items are switched off and disconnected from the mains power when you make the connections. • Arrange the desired connection. • When you have finished making the connections, reconnect the mains power to the unit and switch it back on. -
Page 11: Auto Setup
Auto setup When the tuning for Digital TV-channels is completed, you will be asked if you want to proceed to autotuning for Analogue TV-channels. If you wish to Your television has an Automatic Tuning start autotune Analogue TV-channels, connect your System which makes tuning in your television Analogue cable-TV antenna and press ENTER. -
Page 12: Selecting The Input Source
1 Lock (red button): Red mark will appear. Selecting the input source (Lock is available only when Child Lock is On. See page16.) Press INPUT SELECT to view a signal from 2 Del (green button): Green mark will appear. another device connected to your TV, such as a 3 Skip (yellow button): Yellow mark will appear. -
Page 13: Manual Station Search
Manual Station search Basic Operation Channel selection Digital Manual Search With the numbered buttons. Channel - Digital Manual Search Example: Channel • No. 2: Press 2. Frequency(kHz) 474000 Picture • No. 29: Press 2 and within 2 seconds, press 9. Sound •... -
Page 14: Teletext
QuickView Select Page button allows you to go back to the last selected Press P + or – until the page you desire appears. Or TV channel..enter the requested page number by using the 10 • This feature is not available in external input mode and Number Buttons. -
Page 15: Remarks On Dvb-T System
Remarks on DVB-T system DVB-T is at present still being developed. You can get information regarding the current stage of development from your specialist retailer. As a digital service DVB-T basically works differently to previous analogue TV reception. Reception Possibilities: In contrast to cable TV, DVB-T is received via room or roof antennas. -
Page 16: Password Setup (Parental Lock)
Password Setup (Parental lock) EPG (Electronic Program Guide) Parental lock is a function of the channel The Guide menu shows the available provider. If it is not supported by the channel, programme listings for the next 8 days only, parental lock is without function. Currently there including today. -
Page 17: Picture Size And Resolution
Picture size and resolution Resolution and picture quality Broadcast wide screen films in different resolutions. The following table shows the resolution options for wide screen film broadcast media. Broadcast media Resolution of the wide Analogue Digital DVB-T Satellite HDTV Blu-ray- screen signal cable TV cable TV... -
Page 18: Picture Format
Picture format Picture Size Other formats The required picture format can be set by pressing Press PICTURE SIZE until the desired size is the PICTURE SIZE button. Press PICTURE SIZE reached. until the required format is displayed. You move through the following formats when you The picture is displayed in 4:3 press the button: Auto, 4:3, 16:9, 14:9, Cinema, format with black bars to the... -
Page 19: Other Convenience Functions
Other convenience functions You can change the default settings to convenience use. Selected Items Setup hint Picture Picture Mode Standard Standard picture quality (factory-set) Vivid Enhanced picture contrast and sharpness (factory-set) Soft Intended for bad-quality signals (factory-set) User Your personal preferences Brightness / Contrast / Sharpness / Colour / Tint You can adjust the picture to your preference. - Page 20 Other convenience functions Selected Items Setup hint Feature Child Lock See page 16. Language OSD Language See page 12. Preferred Subtitle Select preferred subtitle language, if the current watching DTV channel has more than one subtitle language. If the preferred subtitle language set here is not transmitted in the channel, the first displayed subtitle language in Subtitle language menu (P.13) is automatically selected.
- Page 21 Other convenience functions Selected Items Setup hint Setup OSD Timer The OSD is cleared automatically as per this setting. But if you select “Never”, the OSD is not cleared 5/10/15/20/25/30 Seconds/Never automatically .(Press RETURN to clear.) AV 1 Input Auto Factory setting, normally OK.
-
Page 22: Pc Connection
PC connection Follow these steps: On your PC monitor choose a resolution of 1360 × 768 at 60Hz and save this configuration. Shut down your PC and connect the shut off LCD TV. Use a screensaver to avoid burning-in of static picture content. Select PC input Use a PC-VGA cable (not supplied) to connect the LCD-Monitor to your PC. -
Page 23: Connecting An Hdmi Or A Dvi Device To The Hdmi Input
Connecting an HDMI or a DVI device to the HDMI input The HDMI input receives digital audio and uncompressed video from a HDMI equipped device or uncompressed digital video from a DVI equipped device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it only transfers the video signal, so it is necessary to use separate analogue leads to transfer the audio signals. -
Page 24: Connection To Other Equipment
Connection to other equipment 1. Connecting to other equipment Attention: Preparation: • Disconnect all equipment from the AC-supply, to prevent any possible damage. • Make the necessary connections. • Make sure all connections are safe & secure before reconnecting your equipment the AC-supply. Please connect your satellite-receiver or DVD player via SCART (AV1). - Page 25 Connection to other equipment 3. Connecting an audio system You can supply the TV sound to the stereo equipment (A) with the SCART socket. Use a special SCART cable for the connection which sold at the accessory shop. (please consult your hi-fi instructions for details).
-
Page 26: Troubleshooting Table
Troubleshooting table Please check the following list before requesting service. Symptom Possible solution Page No picture, no sound Switch on the set. Check that the mains power outlet is properly connected. Select appropriate input mode. Unplug unit for 1 minute, then plug it back in. No reception with built-in Do not connect scart cable at first. - Page 27 Copyright © 1999 Kungliga Tekniska Hogskolan (Royal Institute of Technology, Stockholm, Sweden). All rights reserved. JVC has assigned the service and in warranty responsibility to Kesa Electricals plc. FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:...
- Page 28 J3CX0501B SH 10/12 © 2010 Victor Company of Japan, Limited 1110TMH-OR-OR...
