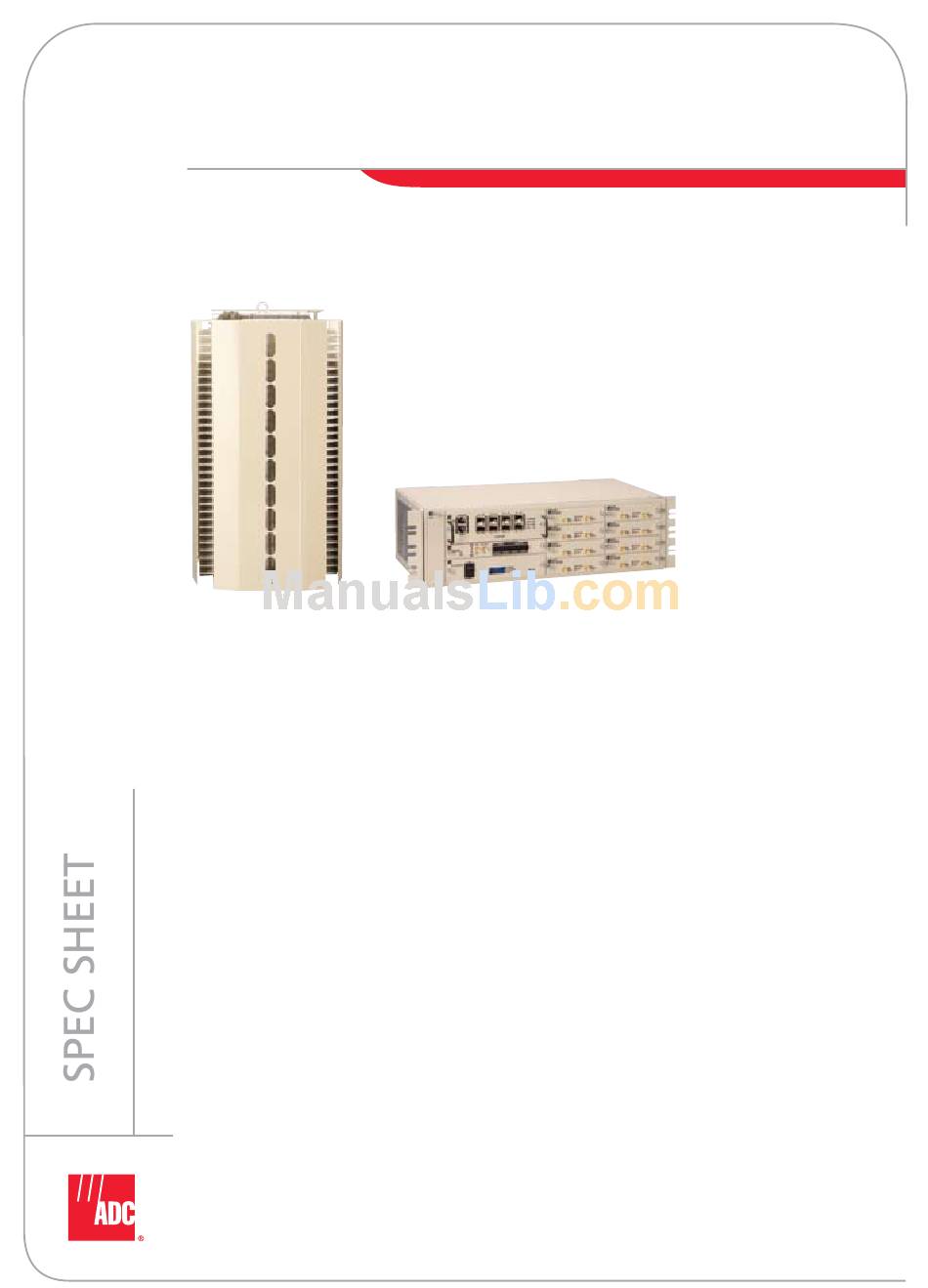

FlexWave
™
Flexible Outdoor Coverage and Capacity
Remote Unit
FlexWave
– ADC's Next Generation of Wireless Solutions
™
for Improving Wireless Capacity, Coverage, Flexibility
and Customer Retention
ADC's FlexWave
Universal Radio Head (URH) is the most flexible, scalable and
™
complete solution for addressing coverage and capacity needs for current and
emerging wireless networks. The URH improves wireless network coverage and
capacity by extending services from existing cell sites, to hard-to-reach areas by
distributing coverage from a centralized radio suite.
Utilizing a centralized distributed architecture, service providers are able to recognize
significant CAPEX savings through a shared Base Station Hotel (multiple BTS co-located
together), as well as a shared Remote Radio Transceiver approach. The URH's flexibility
and scalability offers service providers an optimal solution for multiple applications
such as; dense urban centers, dense suburban areas, campuses, enterprise buildings,
subways and tunnels. The URH's distributed architecture and small form factor allows
service providers to cost-effectively increase coverage and capacity in these hard-to-
reach areas.
w w w . a d c . c o m
Universal Radio Head
Host Unit
•
+ 1 - 9 5 2 - 9 3 8 - 8 0 8 0
•
1 - 8 0 0 - 3 6 6 - 3 8 9 1
Advertisement
Table of Contents
Related Manuals for ADC Universal Radio Head FlexWave
Summary of Contents for ADC Universal Radio Head FlexWave
- Page 1 Universal Radio Head ™ Flexible Outdoor Coverage and Capacity Remote Unit FlexWave – ADC’s Next Generation of Wireless Solutions ™ for Improving Wireless Capacity, Coverage, Flexibility and Customer Retention ADC’s FlexWave Universal Radio Head (URH) is the most flexible, scalable and ™...
-
Page 2: Features And Benefits
(MMW) links and reconstructs the signal at full bandwidth, regardless of modulation technology, at the remote location. ADC’s digital RF transport allows RF signals to be replicated at full dynamic range, independent of the link length, for improved data throughput. -
Page 3: System Description
FlexWave ™ Flexible Outdoor Coverage and Capacity System Description The URH is a flexible and cost effective solution for Distributed Antenna System applications: Microcell and/or CPRI/OBSAI Remote Radio Head applications: • Next Generation DAS; optimized for multiple frequency bands, scalable RF bandwidth &... - Page 4 FlexWave ™ Flexible Outdoor Coverage and Capacity Host Unit Host Unit The rack-mountable URH Host Unit is typically located at a Base Station or a facility housing a suite of Base Stations. On the forward path, the Host Unit receives the RF signal from the BTS and digitizes the designated RF band and digitally transports it over single mode fiber or a Millimeter Wave link to the Remote Unit.
-
Page 5: Remote Unit
FlexWave ™ Flexible Outdoor Coverage and Capacity URH Remote Unit Remote Unit The URH Remote Unit utilizes a modular design, which supports up to three bands. Each side panel/door represents a single-band allowing for future upgrades and easy field access. Mounting options for the Remote Unit include: pole-mount, inside pole-mount, wall-mount, strand-mount (singe-band unit only), and... - Page 6 FlexWave ™ Flexible Outdoor Coverage and Capacity Alarm and Management System The URH utilizes an embedded network management for system configuration and network monitoring. The element management system (EMS) utilizes a web based interface or SNMP protocol for easy accesses to the system. The Element Management System (EMS) provides operational and maintenance capabilities for the URH system (Host and Remote).
-
Page 7: Specifications
FlexWave ™ Flexible Outdoor Coverage and Capacity Specifications RF SpeciFication Supported Frequency Blocks: Bandwidth: Frequency Band Supported: Digital Simulcast: Diversity Receive: pRopagation Delay System Delay: Delay Management: noiSe FigURe noise Figure: input ip3: optical SpeciFicationS optical Budget: Digital transport Rate: oUtpUt poweR output power per Band: ReMote Unit enViRonMental SpeciFicationS... - Page 8 Specifications published here are current as of the date of publication of this document. Because we are continuously improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.
