Part 1

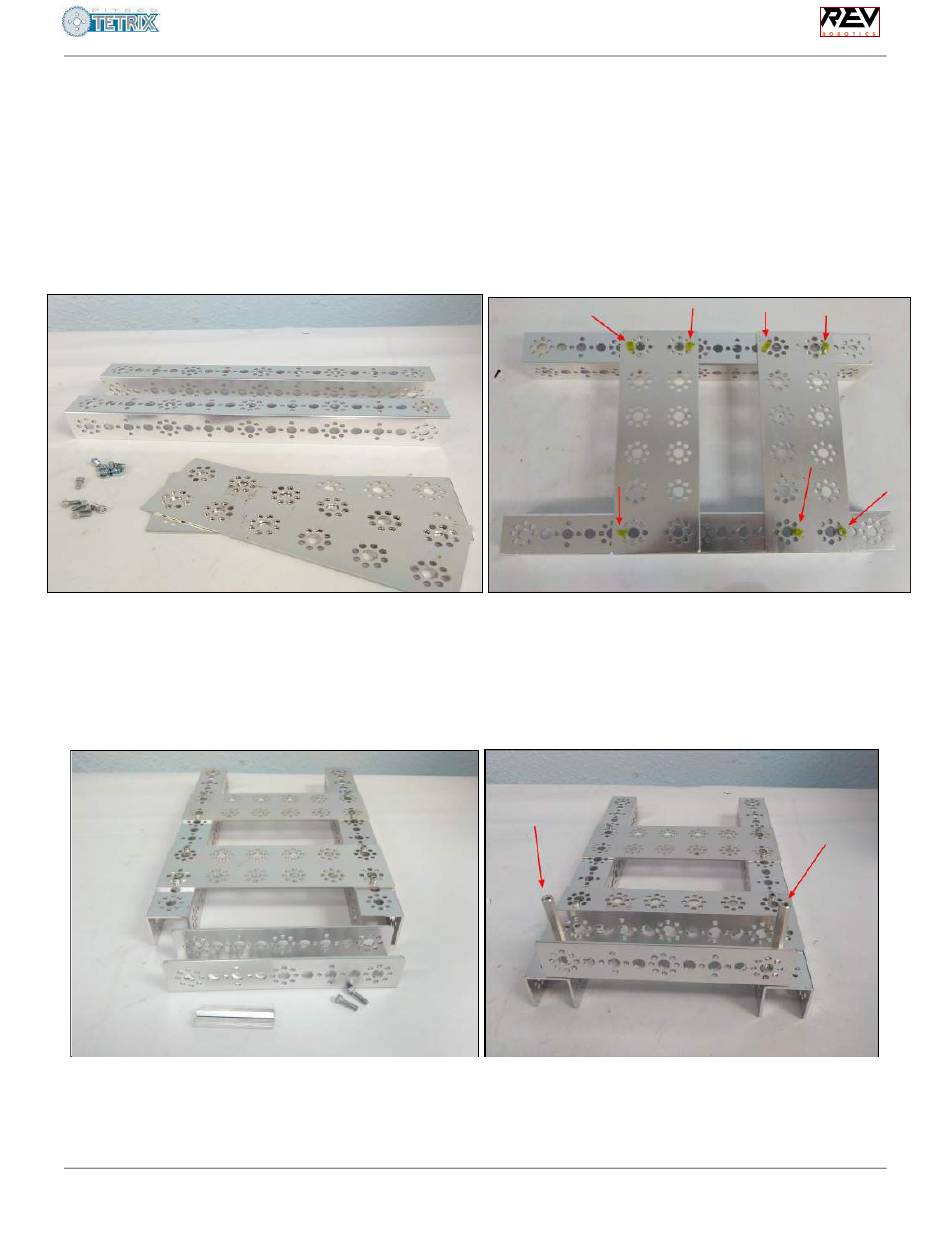

Step 1: Chassis frame
Hardware: 288mm channels (x2), flat plates (x2), 5/16" socket head cap screws ( SHCS ) (x7), kep
nuts (x7)
Instructions: Position the flat plates on top of the channels and screw in place. Make sure that the
screws (marked in green) align with the plates and channels exactly as shown in the photo - this is
where the REV hub will mount and we don't want any interference from the screw heads.
Step 2: Phone mount
Hardware: 160mm channel (x1), 1/2" SHCS (x2), 2" stand-off post (x2)
Instructions: Position the 160mm channel so that it touches both ends of the 288mm channels and
the open side facing up. Screw the channel into place from the bottom, so that the posts stick up.
This will hold the robot controller phone.
Srishti Kumar, FTC #7172
Lauren PeCoy, FTC #8204
Patrick R. Michaud, UT-Dallas
2017
FTC Tomahawk Instructions
v2017.06.2
1
