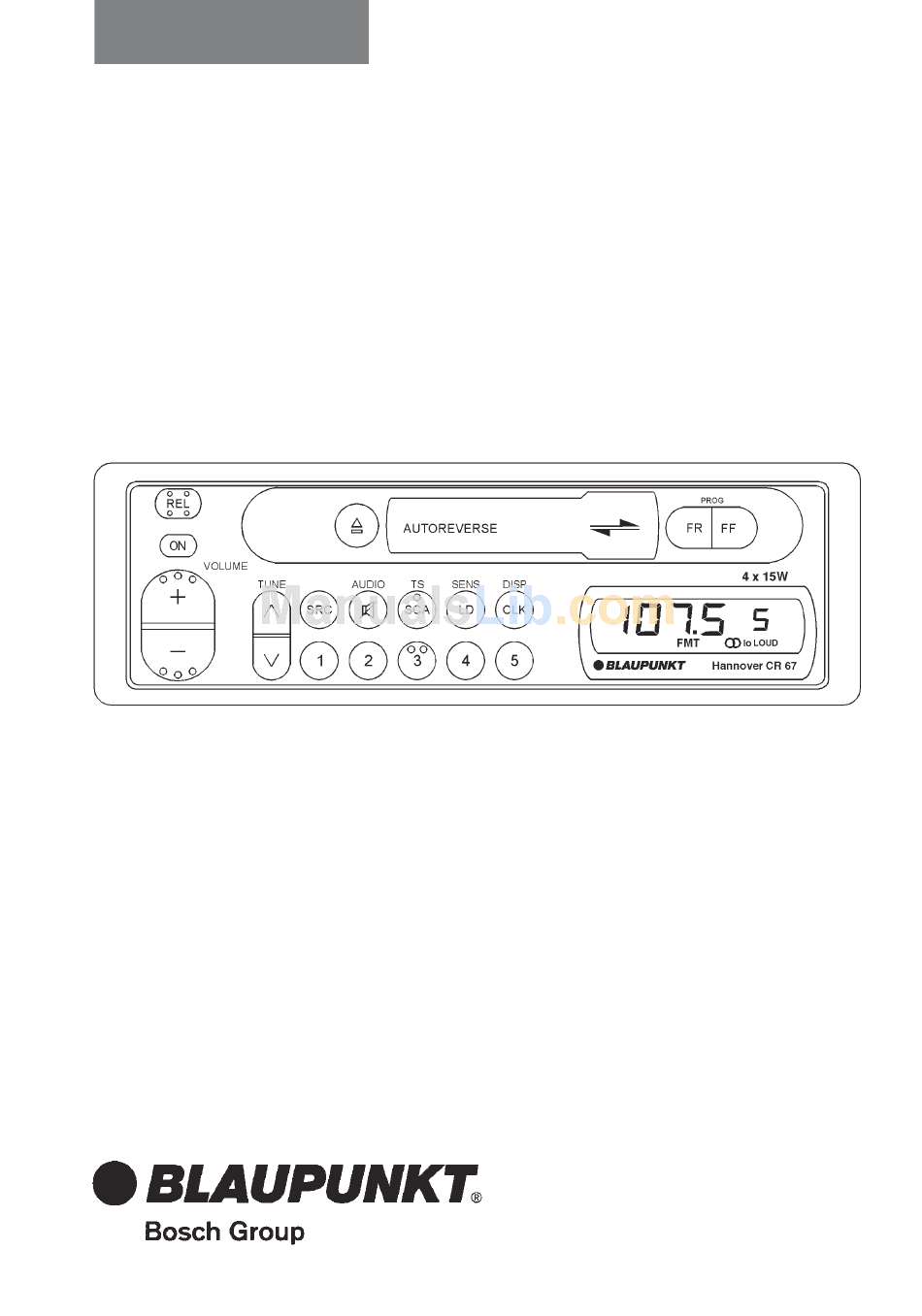

- Page 1 Radio / Cassette Hannover CR 67 Operating Instructions Congratulations on your purchase of this Blaupunkt Cassette Receiver.
-
Page 2: Table Of Contents
Table of Contents English Features ... 3 Traffic Safety and Precautions ... 3 Detachable Face ... 4 Electrical Connections and Installation ... 5 Installation ... 7 Maintenance ... 9 Specifications ... 10 Location of Controls ... 11 Instructions - General Operation ... 12 Audio Operation ... -
Page 3: English
ENGLISH Features Congratulations on your purchase of this Blaupunkt Cassette Receiver. Its Codem III FM/AM Tuner and Autoreverse Cassette Tape Player mechanism provide the ultimate in sound reproduction. • Codem III Tuner Features: – Multipath Management – ASU Electrical Impulse Noise Reduction –... -
Page 4: Detachable Face
Detachable Face Detaching & Attaching the Face: The face of this unit can be detached and taken with you to prevent it from being stolen. Detaching the Face: Press the REL (Release) Button and detach the face by gently pulling it off as illustrated. Note: Do not pull it straight out from the chassis. -
Page 5: Electrical Connections And Installation
GENERAL RECOMMENDATIONS • If you’re not confident that you can install the unit correctly, have it installed by a qualified Blaupunkt installation technician. • Use this unit only with negative ground 12 Volt (11-16 Volt) direct current (DC). • Be sure to detach the faceplate before you start to connect or install the unit. -
Page 6: Speaker Connections
SPEAKER CONNECTIONS • You can connect a speaker (regular, co-axial or tri-axial speakers or component speaker system, all hereafter referred to simply as “speaker”) to each of the units’ four pairs of speaker leads. Power connections blue black yellow Speaker connections IGNITION +12V ANTENNA... -
Page 7: Installation
• The illustration below shows a typical installation, however, you may need to adjust the installation, depending on the unit. If you have questions or need additional installation hardware, consult your Blaupunkt dealer. • Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate. - Page 8 You may have difficulty mounting this unit in some Japanese cars that have ISO mounting features. In this case, consult your Blaupunkt dealer. 1 Run a blade along the slits on the back of the front trim ring, unscrew the two side screws, and separate it from the unit.
-
Page 9: Maintenance
Maintenance Removing the Unit Use the Release Keys as shown below. Keep them in a safe place in case you need them in the future. Fuse Replacement When replacing the fuse, be sure to use one with the correct amperage, which will be stated on the fuse case. -
Page 10: Specifications
Specifications Audio Power Specifications Power Output and Total Harmonic Distortion: 10 watts per channel minimum continuous average output into 4 ohms, 4 channels driven, from 30-15 000 Hz with no more than 1% total harmonic distortion. Other Specifications Tuner Tuning Range: FM Mono Sensitivity: Selectivity: Signal-to-Noise Ratio:... -
Page 11: Location Of Controls
Location of Controls REL (Release) Button ON (Power) Button Source (and Radio Band) Select Cassette Eject Mute/Audio Button/Clock Adjust:00 SCA (Scan) TS (Travel Store) LD (Loudness)/ SENS (Tuning Sensitivity) Cassette Insertion Slot CLK/Display Change 10/11. Tape Program Change (reverse) Fast Rewind Fast Forward + Button Volume +... -
Page 12: Instructions - General Operation
Instructions — General Operation See Traffic Safety & Precautions on page 3. “Press” means a momentary press of less than 1/2 second. All presses requiring more than 1/2 second are followed by beep. “Time Out” When additional button presses are anticipated to complete a procedure, the unit will automatically exit the procedure after 4 seconds of inactivity. -
Page 13: Audio Operation
Audio Operation Volume Control Buttons (+/–) Press + and - to increase/decrease volume from 0 to 63, in increments of 1.25 dB/step. Volume control is accessible from all modes except Bass, Treble, Balance and Fade modes. Adjustable Maximum Turn-On Volume First adjust the volume to the (maximum) volume level desired when the unit is turned on. -
Page 14: Radio Operation
Radio Operation Last Station Memory Each FM bank and AM band has its own last station memory which holds last-tuned frequency for that band or bank irrespective of whether that frequency is stored into a preset. Selecting Bands Press SRC as needed to access FM1, FM2, FM3/FMT, AM/AMT banks. Seek Tuning Press /\ or V to seek next receivable frequency. -
Page 15: Cassette Tape Player Operation
Cassette Tape Player Operation Tape Playback: • Insert cassette into Cassette Door. (Note: Make sure that the side of the cassette exposed is facing right and that all slack has been removed from the tape prior to insertion.) • If ignition switch is already in “on” or accessory position, insertion of cassette will turn unit on. - Page 16 Jalan Pemimpin 38C - 38D Singapore 577180 Robert Bosch (Aust) Pty Ltd P.O. Box 66 Rosebank MDC Clayton Victoria 3169 Australia Tahiti Sound B.P. 3793 Papeetee Tahiti 98713 French Polynesia Jebsen & Co. Ltd (Consumer Products Division) 28F Caroline Centre 2-38 Yun Ping Road Causeway Bay Hong Kong...
