Kit Number 626AK012
This instruction sheet describes how to install the Broadcast Vision kit for Cybex Arc models 626A and 626AT.
Tools Required:
• Phillips screwdriver
• Utility knife
• ESD (Electrostatic Discharge) grounding strap
• Headphones (not included)
• 5/32" Allen wrench
• Block, 4" (10 cm)
Read and understand all instructions thoroughly before installing this kit.
Verify the kit contents shown.
Disconnect power source
Unplug the power cord from the power outlet.
Remove back cover
Remove the four screws securing the back cover to the console assembly using a Phillips screwdriver.
Broadcast Vision Upgrade Kit 625A
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Component damage.Wear an ESD grounding strap during this procedure. Connect
ESD grounding strap to frame bolts or unpainted metal of frame. If ESD grounding
strap is not available, touch frame bolts or unpainted metal of frame before handling
any electronics.
Page 1 of 13

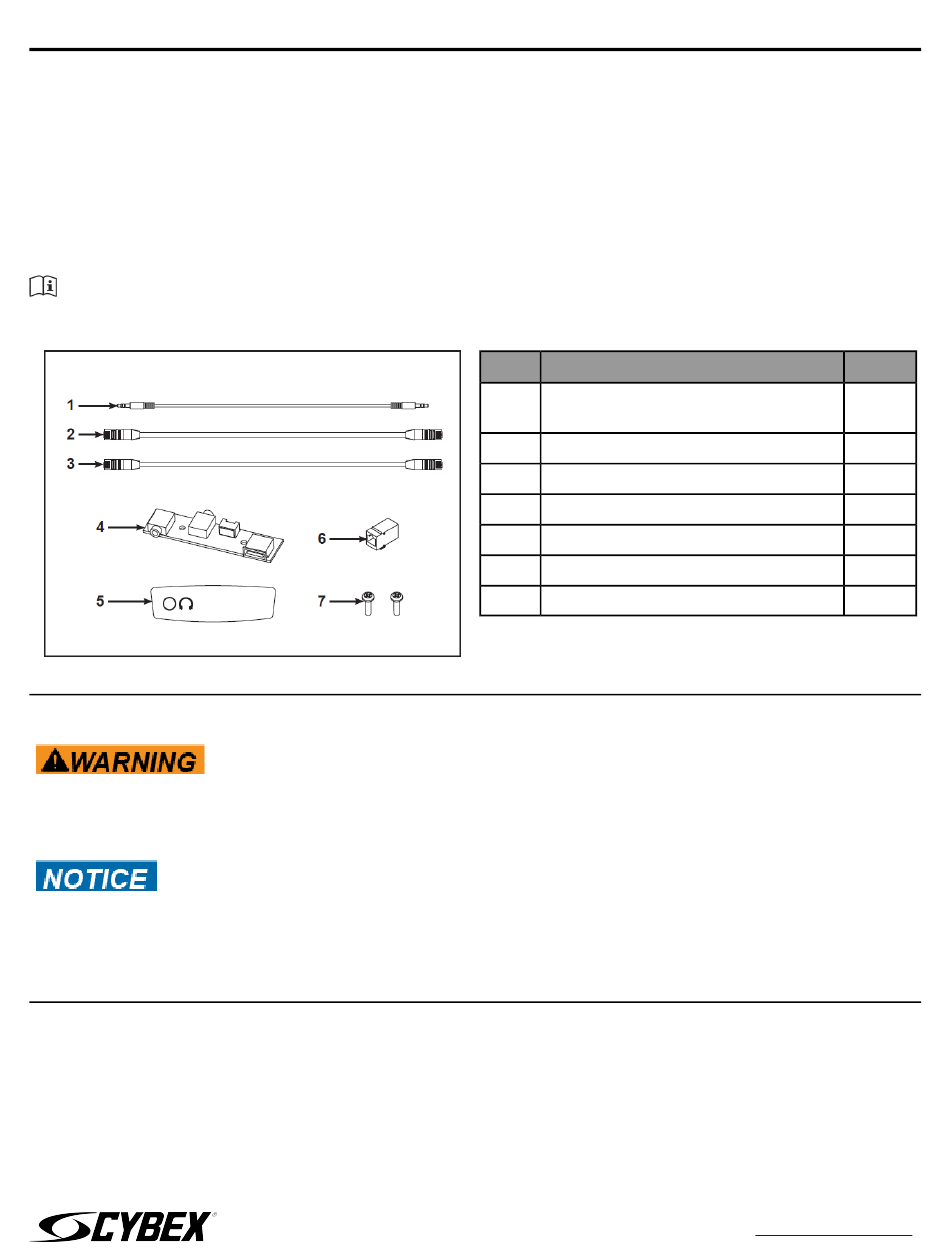

Description
Cable, Headphone jack jumper,
1
770A-357
2
Cable, CAT6 4 ft., OAW-24516
3
Cable, CAT6 14 ft., OAW-24521
4
PCA, Handset audio jack, 770A-247
5
Headphone jack decal, 770A-381
6
Coupler, OCN-22747
7
Screw, 4 x 3/8", HT042510
Installation Instructions
Qty.
1
1
1
1
1
2
2
www.cybexintl.com
Advertisement
Related Manuals for CYBEX 625A
Summary of Contents for CYBEX 625A
- Page 1 Broadcast Vision Upgrade Kit 625A Kit Number 626AK012 Installation Instructions This instruction sheet describes how to install the Broadcast Vision kit for Cybex Arc models 626A and 626AT. Tools Required: • Phillips screwdriver • Utility knife • ESD (Electrostatic Discharge) grounding strap •...
- Page 2 Description Qty. Console assembly Back cover Screws Remove console assembly Remove the six screws securing the console assembly to the console support using a Phillips screwdriver. Description Qty. Console assembly Console support Screws www.cybexintl.com Page 2 of 13...
- Page 3 Disconnect console cables 1. Disconnect console cables from MCC board. Description Qty. MYE/BV, Gray CSAFE, Red Console cable Upper display Headphone jack iPod (optional) Heart rate Handset membrane iPod board assembly (optional) MCC board cables 2. Unplug cables from MCC board by un-latching connectors with the following procedure: a) Press in the top of the cable connector.
- Page 4 3. Unplug optional iPod cable. The iPod cable is held in place by a notch in the access cover. a) Press in both side latches of cable connector. b) Ensure latches disengage from the connector. c) Unplug cable by holding down latches on both sides and pulling straight out from connector. Do not pull on wires, remove by connector.
- Page 5 2. Install the two 4 x 3/8” screws securing the headphone jack board to the headphone jack cover using a Phillips screwdriver. Description Qty. Headphone jack board Screws, 4 x 3/8” Headphone jack cover 3. Install the headphone jack decal to the headphone jack cover. Description Qty.
- Page 6 Connect console cables 1. Install console cables to MCC board. Description Qty. MYE/BV, Gray CSAFE, Red Console cable Upper display Headphone jack iPod (optional) Heart rate Handset membrane iPod board assembly (optional) MCC board cables 2. Plug 4 foot Cat6 cable into gray connector (1) and route through console assembly. 3.
- Page 7 Remove tray assembly 1. Remove three screws securing accessory tray bottom to the accessory tray base using a Phillips screwdriver. Description Accessory tray bottom Accessory tray base Screw, #6 x 0.50" Screw, 8-16 x 0.50" 2. Remove two screws securing accessory tray top to accessory tray base using a Phillips screwdriver. Description Accessory tray top Accessory tray base...
- Page 8 Remove right wheel 1. Place a 4" (10 cm) block under unit to elevate right wheel. Description Qty. Bolt Wheel Lockwasher Block 2. Remove bolt, lockwasher, and nut securing right wheel using a 7/16” wrench and a 5/32” Allen wrench. Route Broadcast Vision cables 1.
- Page 9 4. Route 14 foot CAT6 cable back up through the bottom of the frame and out the access hole. Description Qty. Cable, CAT6 14 foot Mounting plate Description Qty. Access hole 5. Insert the Cat6 coupler into the mounting plate by hooking the upper tab into the mounting plate and snapping in the lower tab.
- Page 10 Install right wheel 1. Install wheel, bolt, lockwasher, and nut securing right wheel using a 7/16” wrench and a 5/32” Allen wrench. Description Qty. Bolt Wheel Lockwasher Block 2. Remove block. Install tray assembly 1. Install four screws securing accessory tray base to frame using a Phillips screwdriver. Description Accessory tray base Frame...
- Page 11 3. Install three screws securing accessory tray bottom to the accessory tray base using a Phillips screwdriver. Description Accessory tray bottom Accessory tray base Screw, #6 x 0.50" Screw, 8-16 x 0.50" Install back cover Install the four screws securing the back cover to the console assembly using a Phillips screwdriver. Description Qty.
-
Page 12: Complete Installation
Connect Broadcast Vision to Cybex product 1. Plug the short cable (TV side) of the C.A.B. (Console Adapter Box) or C-tv (Connected TV) into the Broadcast Vision TV. Description Qty. Short cable, TV side C.A.B. Console Adapter Box or C-tv... - Page 13 3. Operate the unit at all levels to verify proper operation. ® Cybex and the Cybex logo are registered trademarks of Cybex International, Inc. 10 Trotter Drive, Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 © Copyright 2017, Cybex International, Inc. •...
