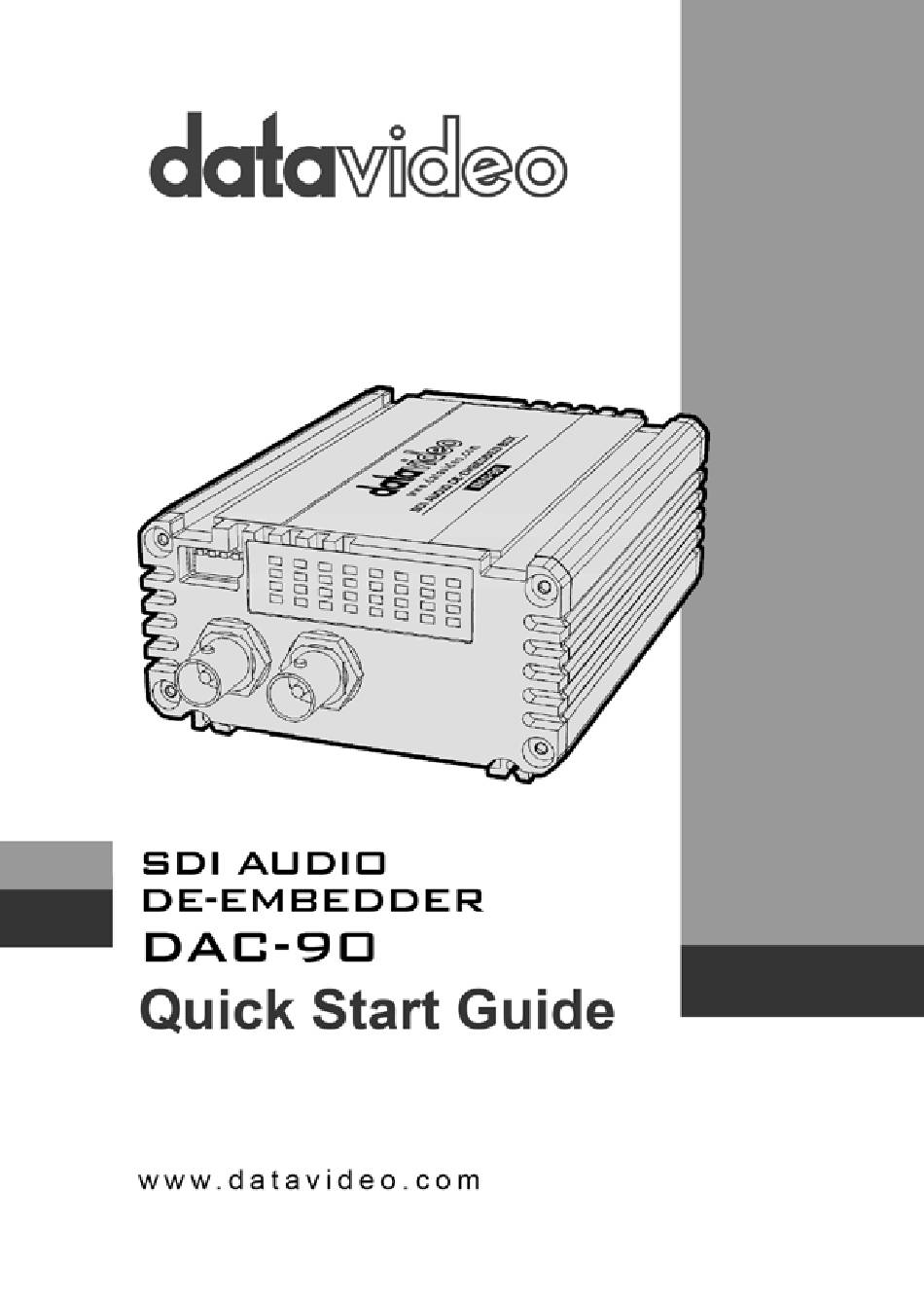

Summary of Contents for Datavideo DAC-90
-
Page 2: Table Of Contents
Datavideo Technologies always recommend that you double check the information in this document for accuracy before making any purchase decision or using the product. Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. -
Page 3: Warnings And Precautions
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. -
Page 4: Disposal
It must be handed over to the applicable take-back scheme for the recycling of Waste Electrical and Electronic Equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office. -
Page 5: Warranty
Drives and Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty... -
Page 6: Packing List
DAC-90 Unit Accessory List Introduction DAC-90 is an audio de-embedding box that allows the user to de-embed 16 analog audio signals (4 at a time) from the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p/60 video format and automatically detects and switches between different formats. -
Page 7: Connections & Controls
Connections & Controls Front Panel Mini-XLR Balanced XLR Audio Output Firmware Upgrade Port Power Indicator Indicates the power status DC In Socket Connects the supplied 12V PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. -
Page 8: Rear Panel
Rear Panel SDI IN SDI input for video and audio SDI OUT Re-clocked Video and Audio output from SDI input Audio level indicator display Indications of current audio level Green Yellow -45~-40 -39~-35 -34~-29 -28~-24 -23~-18 -17~-13 -12~-8 -7~0 (Unit : dBFS) 4 PIN DIP Switch Audio level adjustment 4 PIN DIP Switch Configuration... -
Page 9: Firmware Update
2. Set DIP SW4 to 1 (1: down; 0: up) 3. Connect the DAC-90 mini-USB port to the PC via a USB cable (you do not need to connect the DC 12V Power at this point and the PWR LED should be off) 4. - Page 10 5. Copy and paste the latest firmware file (DAC-90-FW-v1.00.bin) to the device 6. Safely remove the Datavideo USB device 7. Set DIP SW 4 to 0 and then remove the Mini USB connection after the update is completed After the DC 12V Power Supply is connected, you will then see the PWR LED turned on, Audio Level Indicators all ON and then fade towards the left, indicating that the device is operating properly.
-
Page 11: Frequently-Asked Questions
Frequently-Asked Questions This section describes problems that you may encounter while using DAC-90. If you have questions, please refer to related sections and follow all the suggested solutions. If problem still exists, please contact your distributor or the service center. -
Page 12: Dimensions & Weight
Dimensions & Weight All measurements in mm Unboxed Unit Weight: 0.37 Kg Boxed Unit Weight: 0.6 Kg... - Page 13 Notes...
-
Page 14: Specifications
Specifications Interface SDI Video Input 3G/HD/SD SDI x 1 SDI Video Output 3G/HD/SD SDI x 1 (Re-clocked Loop through) Analog Audio Output Mini XLR (Balanced) x 4 Power LED x 1 Audio Level Indicator Audio Level LED : 4 rows Updates and Mini USB x 1 Configuration... - Page 15 SDI Auto Switching Automatically detects SD, HD, 3G Audio Level SMPTE and EBU switchable General Settings Control DIP Switch Power Supply DC 12V Operating 0°C to 50°C (32°F to 122°F) Temperature Operating Humidity 10% to 90% (non condensing) Certification CE, FCC Accessory Power Adapter, QSG...
-
Page 16: Service & Support
Service & Support...
