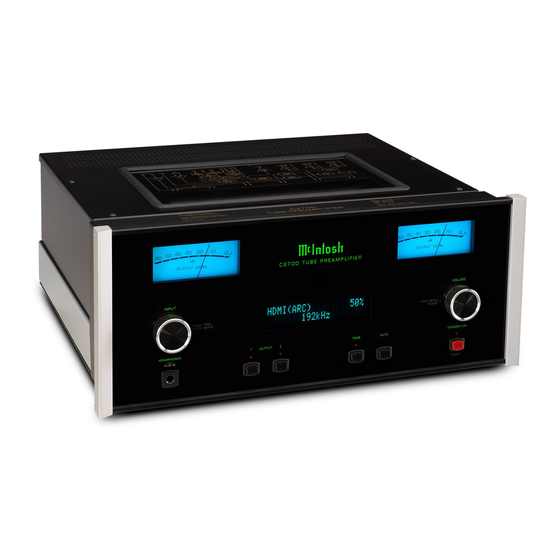

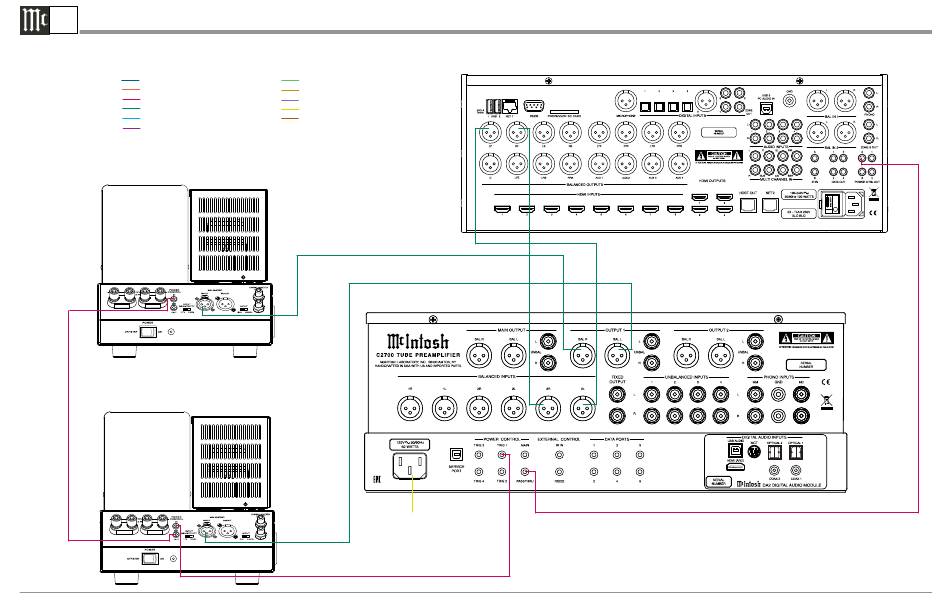

McIntosh C2700 Connection Diagram

Refer to the c2700 owner’s manual page 7&8 for additional connection information

Hide thumbs Also See for C2700:

Download this manual

Note: Refer to the C2700 Owner's Manual page 7&8 for additional connection information.

Connection Legend:

Data Cable*-

Digital Signal Cable -

Sensor/Keypad Cable -

RS232 Cable -

Power Control Cable* -

Ground Wire -

Audio Signal Cable -

AC Power Cords -

Video Signal Cable -

Loudspeaker Cable -

RF Signal Cable -

2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

Power Amplifier (Right Channel) - Main Room

(Partial View)

Power Amplifier (Left- Channel) - Main Room

(Partial View)

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

C2700 Audio Preamplifier Passthru Connection Diagram

Connect to

AC Outlet

Part No. 24102100

A/V Processor

Page 1 C2700 Audio Preamplifier Passthru Connection Diagram Note: Refer to the C2700 Owner’s Manual page 7&8 for additional connection information. A/V Processor Connection Legend: Data Cable*- Digital Signal Cable - Sensor/Keypad Cable - RS232 Cable - Power Control Cable* - Ground Wire -...
Page 2 Transport Components sending a digital audio signal correct voltage for your unit HDMI (ARC) DIGITAL AUDIO INPUT with with a digital audio sig- nal from a TV/Monitor McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
