Portable
PD
Rated voltage: 115V
Frequency: 60Hz
Warning notices: Before using
this product, please read this
manual carefully and keep it
for future reference.
The design and specifications
are subject to change without
prior notice for product
improvement. Consult with
your dealer or the manufacturer
for details.
version B - 11 - 2018
USER MANUAL
WPPD08CW0N
WPPD10CW0N
WPPD10HW0N
www.midea.com
en
Advertisement
Table of Contents
Related Manuals for Arctic King WPPD08CW0N
Summary of Contents for Arctic King WPPD08CW0N
- Page 1 The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or the manufacturer WPPD08CW0N for details. WPPD10CW0N WPPD10HW0N www.midea.com version B - 11 - 2018...
- Page 2 Owner’s Manual Safety Precautions ..................3 Unit Specifications and Features ............... 6 Operating Instructions ................. 7 Installation Instructions ................12 Care and Cleaning ..................17 Troubleshooting Tips .................. 18 Remote Control Instructions ..............19 and Return Policy ... Warranty ..............Read This Manual Inside you’ll find many helpful hints on how to use and maintain your air conditioner properly.
- Page 3 Safety Precautions To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. This symbol indicates the possibility of death or serious injury.
- Page 4 WARNING • DO NOT install your air conditioner in a wet room such as a bathroom or laundry room. Exposure to water can cause electrical components to short circuit. • DO NOT install the unit in a location that may be exposed to combustible gas, as this could cause fire.
- Page 5 Safety Precautions WARNINGS (for using R32 refrigerant only) • Do not use any means to accelerate the defrosting process or to clean the unit, other than those recommended by the manufacturer. • Do not use or store the appliance in spaces with potential ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
- Page 6 Unit Specifications and Features Preparation control panel horizontal louver blade upper air filter (automatic swing) (behind the grille) handle (both sides) upper air intake drain outlet air outlet Panel lower air filter lower air intake drain outlet (only for pump heating mode) power cord buckle power cord outlet...
- Page 7 Operating Instructions Control Panel Features LED Display Follow me CONSTANT FAN(Press 3s) Swing Auto Mode Up (+) and Sleep Power Control Timer Selector Down (-) Control Speed Mode Button Swing Button (optional) NOTE (Applicable to the models with auto swing The control is capable of displaying feature only) temperature in degrees Fahrenheit or...
- Page 8 Control Panel Features (cont.) LED Display Follow me CONSTANT FAN(Press 3s) Swing Auto Mode Up (+) and Sleep Power Control Timer Selector Down (-) Control Speed Mode Button LED display Wireless button • Used to initiate the Wireless function. For Shows the set temperature in °C or °F the first time to use Wireless function, and the Auto-timer settings.
- Page 9 Operating Instructions HEAT operation (Only for heat & cool TIMER operation models) • When the unit is on, pressing the Timer • Press the "MODE" button until the button will initiate the Auto-off stop "HEAT" indicator light comes on. program. The TIMER OFF indicator light •...
- Page 10 Other Features FOLLOW ME/TEMP SENSING Feature (optional) NOTE This feature can be activated from the remote control ONLY. The remote control serves as a remote thermostat allowing for the precise temperature control at its location. To activate the Follow Me/Temp Sensing feature, point the remote control towards the unit and press the Follow Me/Temp Sensing button.

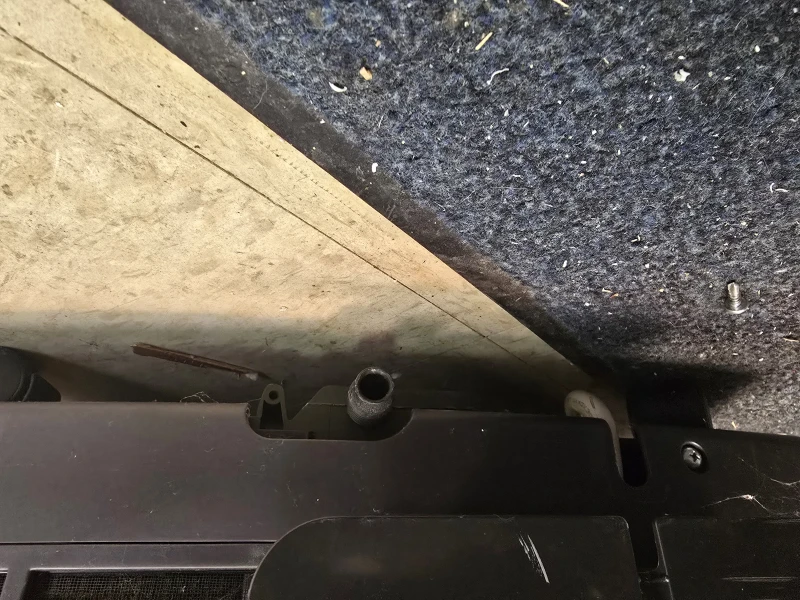

- Page 11 • During heat pump mode, remove the lower drain plug from the back of the unit and install the drain connector (5/8” universal female mender) with 3/4” hose (locally purchased). For models without drain connector, just attach the drain hose to the hole. Place Remove the open end of the hose adaptor directly over the the lower...
- Page 12 Installation Instructions Choosing the Right Location Your installation location should meet the following requirements: • Make sure that you install your unit on an even surface to minimize noise and vibration. • The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible.
- Page 13 Tools Needed • Medium Phillips screwdriver • Tape measure or ruler • Knife or scissors • Saw (optional, to shorten window adaptor for narrow windows). Accessories Your Window Installation Kit fits windows 67.5-123 cm (26.5”-48”) and can be shortened for smaller windows. Quantity Unit adaptor 1 pc...
- Page 14 Window Installation Kit Step One: Preparing the exhaust hose Exhaust hose Exhaust hose assembly assembly Press the exhaust hose into the window slider adaptor and unit adaptor, clamp automatically by elastic buckles of the adaptors. Unit Window slider adaptor adaptor Step Two: Install the exhaust hose Hook Hole Seat...
- Page 15 NOTE Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods. Type 1: Hung window installation Foam seal B (Adhesive type-shorter) Cut the adhesive foam seal A and B strips to the proper lengths, and attach them to the window sash and frame as shown.
- Page 16 Type 2: Sliding window installation Foam seal B (Adhesive Cut the adhesive foam seal A and B strips to the type-shorter) proper lengths, and attach them to the window sash and frame as shown. Foam seal A (Adhesive type) 2. Insert the window slider assembly into the window opening.
- Page 17 Care and Cleaning Safety Precautions • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. •...
- Page 18 Troubleshooting Tips Malfunction Diagnosis Please check the machine according to the following table before calling for service: Problem Possible Cause Troubleshooting P1 Error Code. The water collection tray is full. Turn off the unit, drain the water Unit does not from the water collection tray turn on when and restart the unit.
- Page 19 Remote Control Instructions Remote Control Specifications Model RG57H4(B)/BGEFU1-B Rated voltage 3.0V (Dry batteries R03/LR03x2) Signal receiving range 8 m (approx. 26 ft.) Environment -5°C ~ 60°C (23°F ~ 140°F) Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control.
- Page 20 Handling the Remote Control NOT SURE WHAT A FUNCTION DOES? Refer to the Operating Instructions section of this manual for a detailed description of how to use your air conditioner. SPECIAL NOTE Button designs on your unit may differ slightly from the example shown. If the unit does not have a particular function, pressing that function’s button on the remote control will have no effect.
- Page 21 Remote LED Screen Indicators Transmission Indicator Lights up when remote sends signal to unit ON/OFF display MODE display Appears when the unit is turned on and disappears when it is turned off Displays the current mode, including: AUTO TIMER ON display TIMER OFF display COOL Displays when...
- Page 22 Basic Functions SETTING THE DESIRED TEMPERATURE The operating temperature range for this unit is 17-30°C (62°F-86°F). You can increase or decrease the set temperature in 1°C (1°F) increments. AUTO operation In AUTO mode, the unit will automatically select the COOL, O N /O F F SHORT FAN, HEAT or DRY mode based on the set temperature.
- Page 23 Basic Functions (cont.) FAN operation 1. Press the MODE button to select FAN mode. 2. Press FAN button to select the fan speed: AUTO, LOW, MED or HIGH. 3. Press the ON/OFF button to start the unit. O N /O F F SHORT TIMER NOTE...
- Page 24 Timer Functions Your air conditioning unit has two timer-related functions: TIMER ON - sets the amount of time after which the unit will automatically turn on. TIMER ON TIMER ON TIMER OFF - sets the amount of time after which the unit will automatically turn off.
- Page 25 Timer Functions (cont.) 3. Wait 2 seconds, then the TIMER OFF function will be activated. The digital display on your remote control will then return to the temperature display. T imer on NOTE When setting the TIMER ON or TIMER OFF functions, Continue to press up to 10 hours, the time will increase in 30 minute...
- Page 26 Advanced Functions SLEEP Function The SLEEP function is used to decrease energy use while you sleep (and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. Note: The SLEEP function is not O N /O F F SHORT available in FAN or DRY mode.
- Page 27 NOTES • When there are differences between features or operation implied by the remote control illustration and the actual functions described in the USER MANUAL, the descriptions in the USER MANUAL shall prevail. • The device may comply with local national regulations. In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
- Page 28 Warranty Air Conditioner Limited Warranty Your product is protected by this Limited Warranty: Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer. Warranty • One year full warranty from original purchase date. Midea, through its authorized servicers will: •...
- Page 29 RETURN POLICY Return policy save your Questions about installing or operating your Arctic King product? receipt If you still need assistance, please call Customer Service at 1-866-646-4332. Have your sales receipt, serial number and product model mumber available when you call.
- Page 30 How to Stay Cool with a New Portable Air Conditioner Because of a new federal test procedure for Portable Air Conditioners, you may notice that the cooling capacity claims on portable air conditioner packaging are significantly lower than that of models produced prior to 2017. This is due to changes in the test procedure, not to the portable air conditioners themselves.
