NetPulse Monitor Bracket 750A/750AT
Kit Number 750AK047
This instruction sheet describes how to install the NetPulse monitor bracket for Cybex Arc Trainer
models 750A or 750AT.
CAUTION: Serious injury or damage to machine can occur. To avoid injury the following
precautions must be observed. Install monitor in accordance with NetPulse
installation instructions and verify monitor is secure.
Tools Required
Phillips screwdriver
•
Stubby Phillips screwdriver
•
7/16" socket wrench
•
5/32" Allen wrench
•
Block, minimum height of 3.5"
•
Heavy string, nut, and tape
•
Read and understand all instructions thoroughly before installing this kit.

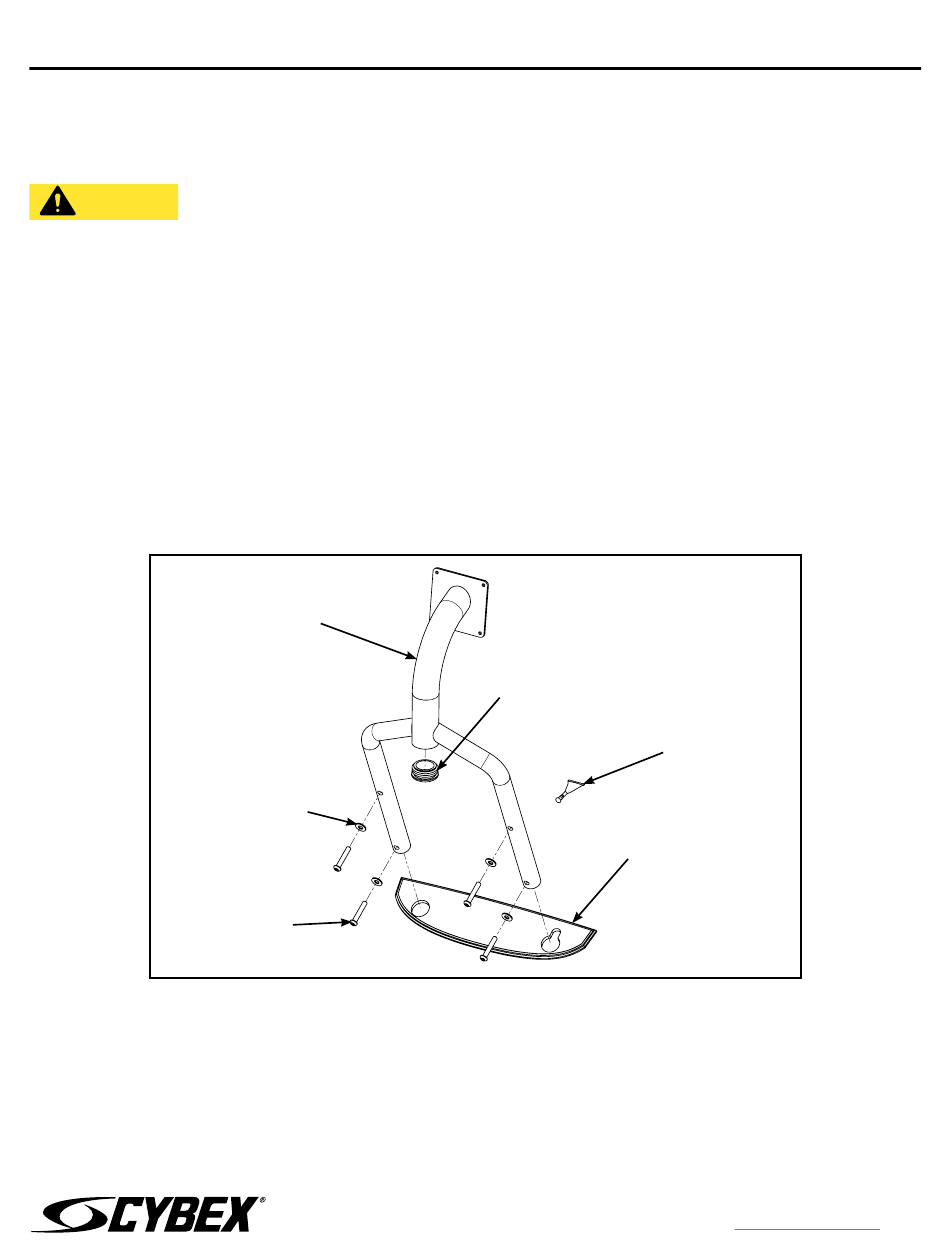

Verify the kit contents shown. NetPulse monitor and cable not included.
Monitor bracket
Washers
HS307600 (4)
Bolts
JC620422 (4)
Disconnect external power source
If unit has the optional AC Power Kit unplug the power cord from the power outlet.
750A-222
Cap
PP080225
Loctite .02 oz
Console Top
750A-463
1
Installation Instructions
#242, Blue
YA000201
www.cybexintl.com
®
Advertisement
Summary of Contents for CYBEX 750AK047
- Page 1 NetPulse Monitor Bracket 750A/750AT Installation Instructions Kit Number 750AK047 This instruction sheet describes how to install the NetPulse monitor bracket for Cybex Arc Trainer ® models 750A or 750AT. CAUTION: Serious injury or damage to machine can occur. To avoid injury the following precautions must be observed.
- Page 2 Remove tray insert and main tray 1. Remove two screws securing tray insert to main tray using a stubby Phillips screwdriver. Main Tray Tray Insert Screws Screws 2. Remove four screws securing main tray to frame using a stubby Phillips screwdriver. Remove back and top covers 1.
- Page 3 Install monitor bracket 1. Insert the NetPulse cable into the notch in the console top. Monitor Bracket NetPulse Cable Notch Console 2. Slide console top up monitor bracket with NetPulse cable in notch. 3. Add loctite to four bolts and mounting holes in console. Monitor Bracket Console Top...
- Page 4 Routing cable 1. Route NetPulse cable through top of console support tube to exit by heart rate wire. NetPulse Cable Console Support Tube 750AT Heart Rate Wire Access Hole Feed cable down to the bottom hole, then back up to the access hole. 2.
- Page 5 Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc. 10 Trotter Drive Medway, MA 02053 508-533-4300 • FAX 508-533-5183 • www.cybexintl.com www.cybexintl.com Copyright © 2012, Cybex International, Inc. All rights reserved • 750A-466 A • February 2012...
