Model/Modelo/Modèle
B112900 & B114900
B112900C & B114900C
B114920 & B112920
Series/Series/Seria
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder a
documentos técnicos adicionales e información del producto,
visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
www.deltafaucet.com
1-800-345-DELTA (3358)
customerservice@deltafaucet.com
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut entraîner
des blessures, des dommages matériels ou le bris du produit. Le fabricant
se dégage de toute responsabilité à l'égard d'un bris du produit causé par
une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
09/04/2019
SINGLE HANDLE WASHERLESS PRESSURE
101649
BALANCED TUB & SHOWER VALVES
VÁLVULAS MONOCOMANDO DE PRESIÓN
BALANCEADA SIN ARANDELAS PARA
REGADERAS Y BAÑERAS
ROBINET DE BAIGNOIRE/DOUCHE
MONOCOMMANDE À ÉQUILIBRAGE DE
PRESSION
1
3/32" (2.38mm)
101649 Rev C
Advertisement
Table of Contents
Related Manuals for Delta B114900
Summary of Contents for Delta B114900

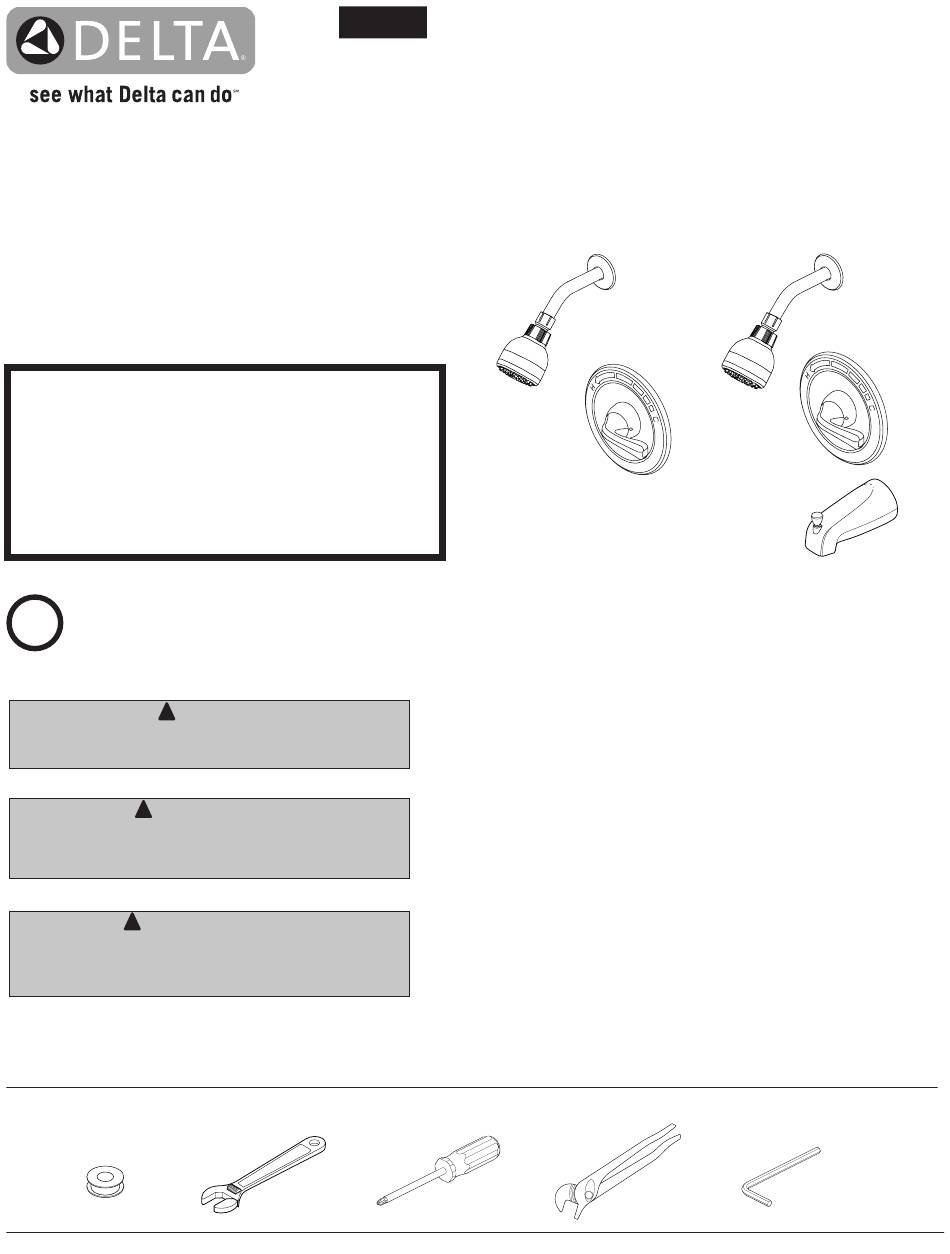

- Page 1 101649 BALANCED TUB & SHOWER VALVES VÁLVULAS MONOCOMANDO DE PRESIÓN BALANCEADA SIN ARANDELAS PARA REGADERAS Y BAÑERAS Model/Modelo/Modèle ROBINET DE BAIGNOIRE/DOUCHE B112900 & B114900 MONOCOMMANDE À ÉQUILIBRAGE DE B112900C & B114900C PRESSION B114920 & B112920 Series/Series/Seria Register Online Regístrese en línea S’enregistrer en ligne...
