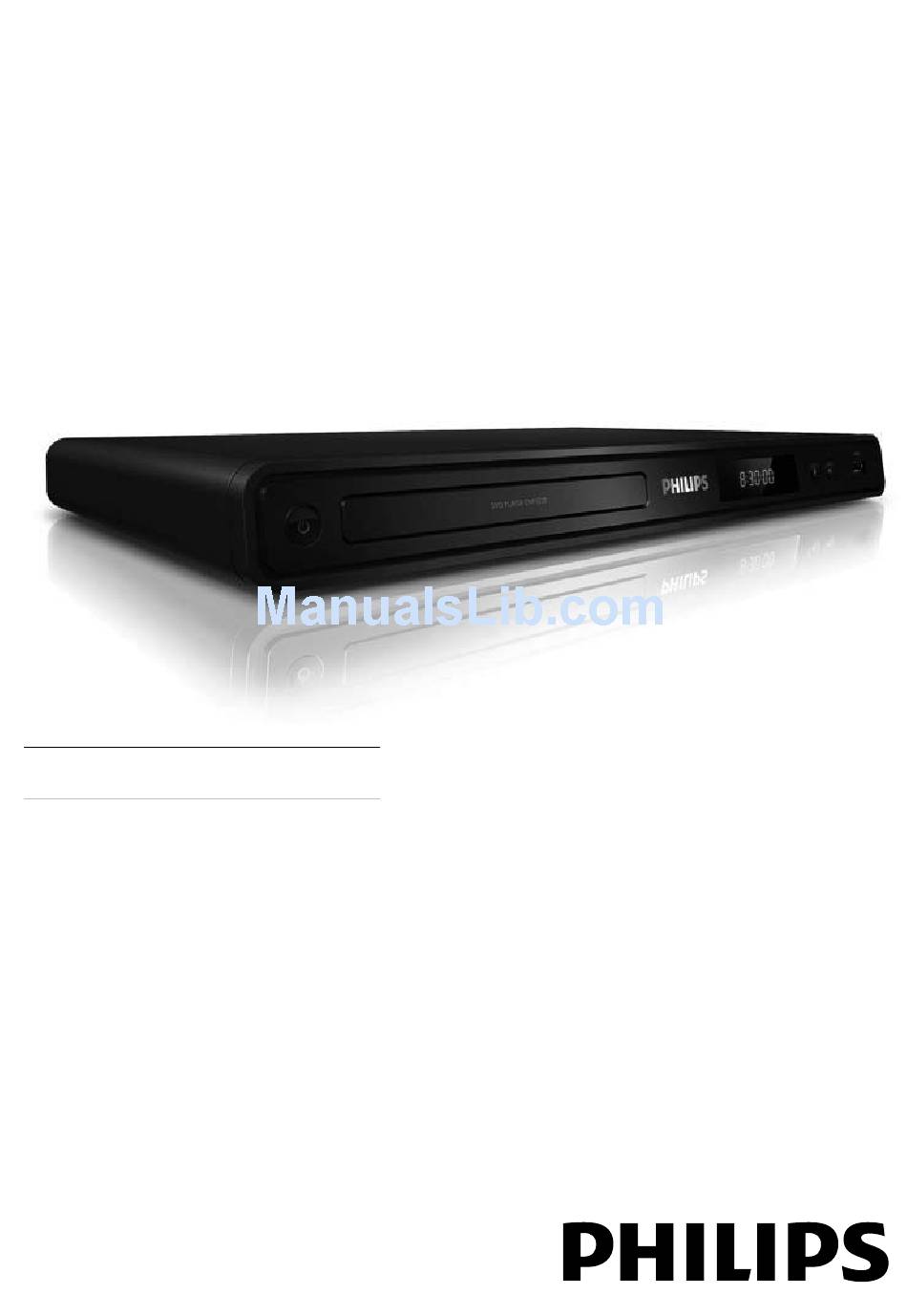

- Page 1 Register your product and get support at www.philips.com/welcome DVP3320 EN User manual...
-
Page 2: Table Of Contents
Contents 1 Important Safety and important notice Trademark notice 2 Your DVD player Feature highlights Product overview 3 Connect Connect video cables Connect audio cables Route audio to other devices Connect USB device Connect to power outlet 4 Get started Prepare the remote control Navigate the menu Find the correct viewing channel... -
Page 3: Important
1 Important Safety and important notice Warning • Risk of overheating! Never install the DVD player in a confined space. Always leave a space of at least 4 inches around the DVD player for ventilation. Ensure curtains or other objects never cover the ventilation slots on the DVD player. -
Page 4: Trademark Notice
Trademark notice Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, Inc. -
Page 5: Your Dvd Player
2 Your DVD player Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. This DVD player brings audio and video to life. Just plays practically any disc format, including the digital photos with absolutely no compromise to picture quality. -
Page 6: Numeric Buttons
• Opens or closes the disc compartment. c DISC MENU • Accesses or exits the disc menu. • Switches to disc mode. • For VCD and SVCD, turns PBC (playback control) on or off in PBC mode. (Navigation buttons) • Navigates through the menus. -
Page 7: Connect
TV, depending on availability and your needs. A comprehensive interactive guide to help you connect your product is available at www.connectivityguide.philips.com. Connect video cables Connect this DVD player to TV to view disc play. Select the best video connection that the TV can support. -
Page 8: Connect Audio Cables
DVD player and the video input jack on the TV. • The video input jack on the TV may be labeled as A/V IN, VIDEO IN, COMPOSITE or BASEBAND. • This type of connection provides standard picture quality. Connect audio cables Connect the audio from this DVD player to the TV to allow sound output through the TV. -
Page 9: Connect To Power Outlet
Connect to power outlet Warning • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the DVD player. Connect the power cord to the power outlet. » The DVD player is ready to be set up for use. -
Page 10: Get Started
• Go to the lowest channel on your TV, then press the Channel Down button until you see the Philips screen. • Press SOURCE button repeatedly on the remote control of your TV. -
Page 11: Select Menu Display Language
• The video-in channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO, HDMI etc.. See the TV user manual on how to select the correct input on your TV. • If the audio output of this DVD player is routed to other audio device (such as audio system or receiver), turn on the audio device to the appropriate audio input channel. - Page 12 Note • During play, when progressive scan mode is on for both this DVD player and the TV, distorted picture may display. Turn off the progressive scan feature on both this DVD player and the...
-
Page 13: Play
5 Play Play from disc Note • DVDs and DVD players are designed with regional restrictions. Ensure that the DVD video you play is for the same region zone as your player (indicated on its back). • The DVD player can support play of the following file formats: MP3/WMA/JPEG. - Page 14 Button Action AUDIO/ Selects an audio language or CREATE channel on a disc. Only applicable to discs with multiple audio language or channel. SUBTITLE Selects the subtitle language on a disc. Only applicable to discs with multiple subtitle language. REPEAT Selects or turns off repeat mode.
-
Page 15: Play Music
Press the Numeric buttons to enter the time where you want to skip to, then press OK Display play time During play, press INFO. » The disc status menu is displayed. Select [Time Disp.], then press . » The display options are different depending on the disc type. -
Page 16: Play Photo
Button Action Starts, pauses or resumes disc play. Stops disc play. Skips to the next track. Skips to the beginning of the current track. Press twice to jump to the previous track. Selects an item to play. Searches fast-forward (right) or fast-backward (left). -
Page 17: Play From Usb Device
• To display the selected photo only, press OK. Press OK to start slideshow play. • To return to the menu, press BACK. Note • You may require longer time to display the disc content on the TV due to the large number of songs/photos compiled onto one disc. - Page 18 • If the device does not fit into the USB jack, connect it through a USB extension cable. • Digital cameras that require additional programme installation when connected to a PC are not supported.
-
Page 19: Adjust Settings
6 Adjust settings This section describes the various setting options of this DVD player. Symbol Option [General Setup] [Audio Setup] [Video Setup] [Preferences] Note • If the setup option is grayed out, it means the setting cannot be changed at the current state. General setup General Setup OSD Language... -
Page 20: Video Setup
[Digital Output] Selects the setting based on the digital amplifier/receiver that is connected through the digital jack. • [Off] - Disables digital output. • [PCM] - Downmixs to PCM format (2 channel). • [All] - Supports multi-channel audio formats. [Volume] Sets the default volume level when you play a disc. -
Page 21: Preferences
• [4:3 Pan Scan] – For 4:3 screen TV: full- height display with the trimmed sides. • [4:3 Letter Box] – For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen. • [16:9] – For wide-screen TV: display ratio 16:9. - Page 22 • This information is required when you want to find out if a newest software version is available at the Philips website that you may download and install on this DVD player. [Default] Resets all the settings of this DVD player to factory default, except for [Parental control] and [Password] settings.
-
Page 23: Advanced Features
7 Advanced features Greate MP3 files... -
Page 24: Additional Information
Select [Preferences] > [Version Info], then press OK. Write down the file name, then press SETUP to exit the menu. Visit www.philips.com/support to check for the latest software version, using the file name for this DVD player. Refer to the upgrade instructions for more information. - Page 25 9 Specification Note • Specification and design are subject to change without notice. Accessories supplied • Remote control and batteries • Audio/video cables • Power cable Playback media • DVD-Video, Video CD/SVCD, Audio CD, CD-R/CD-RW, DVD+R/+RW, DVD-R/- RW, Picture CD, MP3-CD, WMA-CD, USB flash drive •...
- Page 26 Power • Power supply rating: 110 V - 240 V; 50/60 • Power consumption: < 10 W • Power consumption in standby mode: < Laser specification • Type: Semiconductor laser InGaAIP (DVD), AIGaAs (CD) • Wave length: 655 nm (DVD), 790 nm (CD) •...
- Page 27 If the problem remains unsolved, register your DVD player and get support at www.philips.com/welcome. If you contact Philips, you will be asked for the model and serial number of your DVD player. The model number and serial number are on the back or bottom of your DVD player.
- Page 28 11 Glossary Aspect ratio Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.
- Page 29 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. DVP3320_55_77_UM_V3.0_1020...
