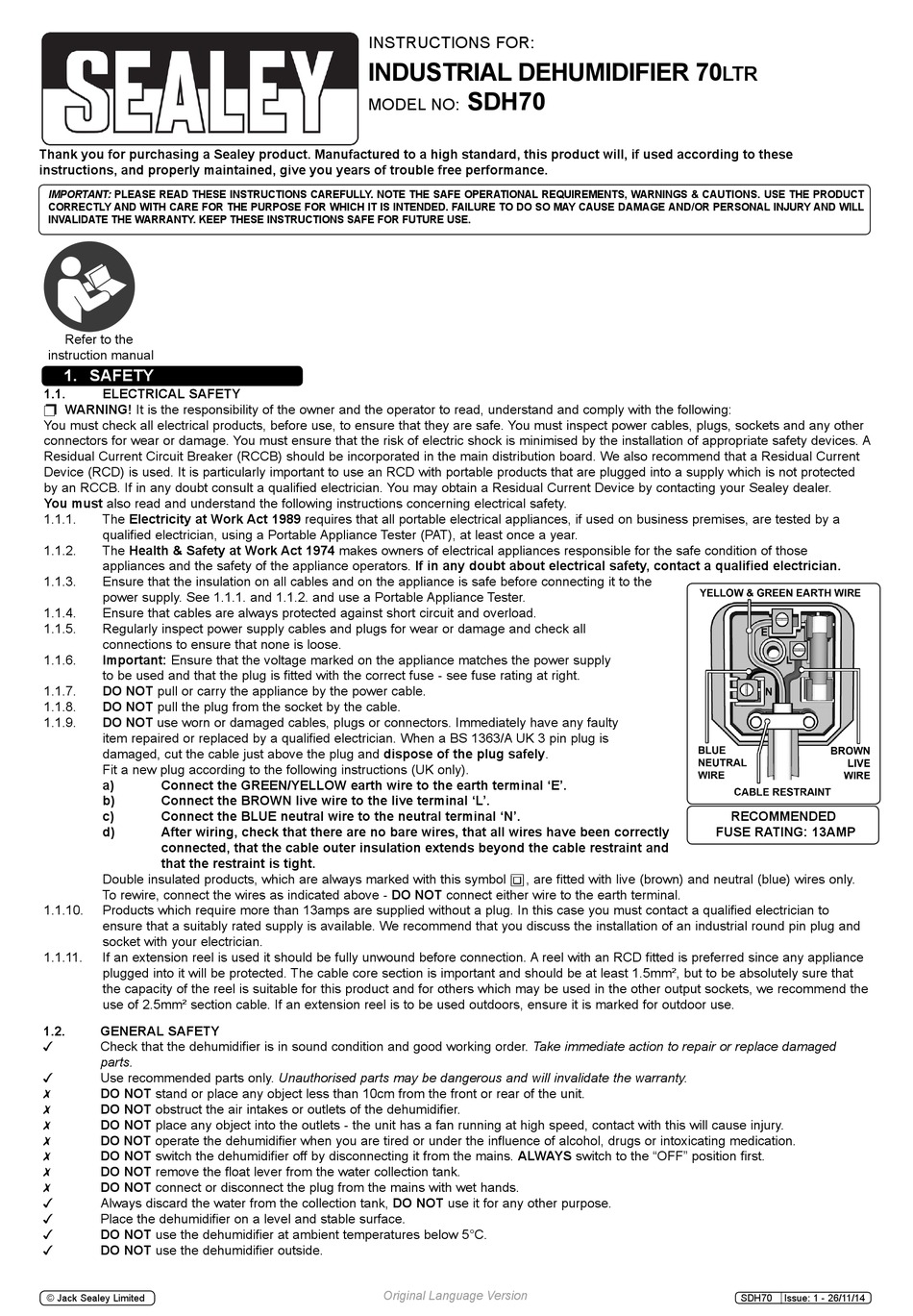

Sealey SDH70 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to the
instruction manual
1. SAFETY
1.1. ELECTRICAL SAFETY
 WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
residual current circuit Breaker (rccB) should be incorporated in the main distribution board. We also recommend that a residual current
device (rcd) is used. It is particularly important to use an rcd with portable products that are plugged into a supply which is not protected
by an rccB. If in any doubt consult a qualified electrician. You may obtain a residual current device by contacting your sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. the Electricity at Work Act 1989 requires that all portable electrical appliances, if used on business premises, are tested by a
qualified electrician, using a Portable Appliance tester (PAt), at least once a year.
1.1.2. the Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those
appliances and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. ensure that the insulation on all cables and on the appliance is safe before connecting it to the
power supply. see 1.1.1. and 1.1.2. and use a Portable Appliance tester.
1.1.4. ensure that cables are always protected against short circuit and overload.
1.1.5. regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none is loose.
1.1.6. Important: ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When a Bs 1363/A uK 3 pin plug is
damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (uK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal 'E'.
b) Connect the BROWN live wire to the live terminal 'L'.
c) Connect the BLUE neutral wire to the neutral terminal 'N'.
d) After wiring, check that there are no bare wires, that all wires have been correctly
connected, that the cable outer insulation extends beyond the cable restraint and
that the restraint is tight.
double insulated products, which are always marked with this symbol
to rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10. Products which require more than 13amps are supplied without a plug. In this case you must contact a qualified electrician to
ensure that a suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and
socket with your electrician.
1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an rcd fitted is preferred since any appliance
plugged into it will be protected. the cable core section is important and should be at least 1.5mm², but to be absolutely sure that
the capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the
use of 2.5mm² section cable. If an extension reel is to be used outdoors, ensure it is marked for outdoor use.
1.2. GENERAL SAFETY
check that the dehumidifier is in sound condition and good working order. Take immediate action to repair or replace damaged

parts.
use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.

DO NOT stand or place any object less than 10cm from the front or rear of the unit.

DO NOT obstruct the air intakes or outlets of the dehumidifier.

DO NOT place any object into the outlets - the unit has a fan running at high speed, contact with this will cause injury.

DO NOT operate the dehumidifier when you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT switch the dehumidifier off by disconnecting it from the mains. ALWAYS switch to the "oFF" position first.

DO NOT remove the float lever from the water collection tank.

DO NOT connect or disconnect the plug from the mains with wet hands.

Always discard the water from the collection tank, DO NOT use it for any other purpose.

Place the dehumidifier on a level and stable surface.

DO NOT use the dehumidifier at ambient temperatures below 5°c.

DO NOT use the dehumidifier outside.

© Jack sealey limited
InstructIons For:
INDUSTRIAL DEHUMIDIFIER 70
SDH70
model no:
, are fitted with live (brown) and neutral (blue) wires only.
Original Language Version
LTR
RECOMMENDED
FUSE RATING: 13AMP
sdH70 Issue: 1 - 26/11/14
