Summary of Contents for Furuno NAVpilot-300

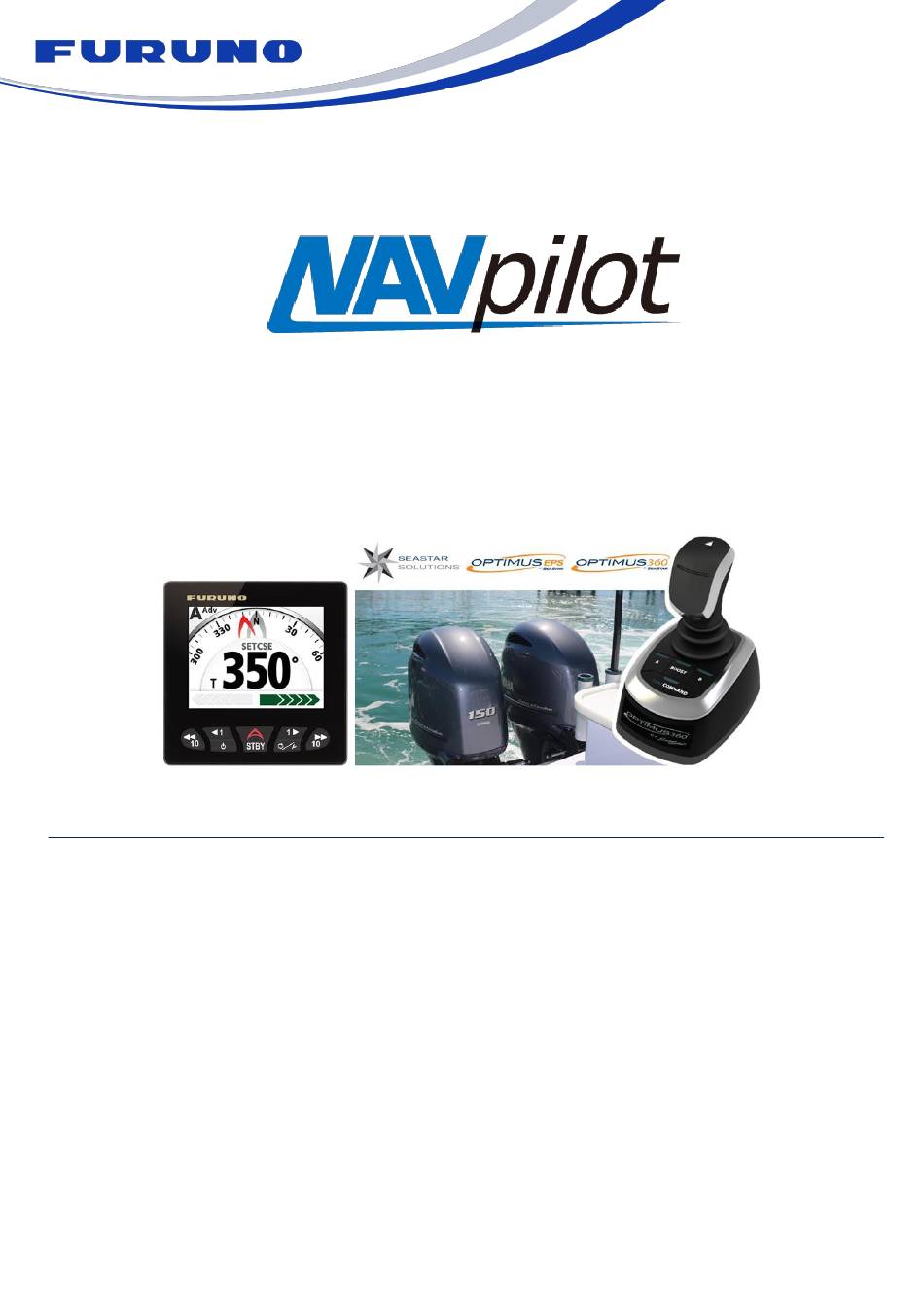

  • Page 1 Seastar Optimus with INDEX Optimus Seastar Optimus CANtrack Display What is Seastar Optimus? Status Indication on Optimus CANTrak Displays Seastar Optimus with Navpilot 300 OVRD Mode NAVpilot-300 Software Versions Interconnection Navpilot 300 Initial Settings on NAVpilot-300 Seastar Optimus Connection Diagram...
  • Page 2 Seastar Solutions Optimus 360 Joystick Control System. http://www.seastarsolutions.com/products/electronic-power-steering/optimus-360- outboard-control-system/ Seastar Optimus with NAVpilot-300 The Optimus system has three independent CAN bus networks, consisting of CAN1, CAN2 and CAN3. CAN1 network is for the Optimus steering network. CAN2 network is for Optimus communication, display units and for a connection to the autopilot.
  • Page 3 NAVpilot-300 Installation Overview The following drawing shows an overview of NAVpilot-300 connected to a Seastar Optimus network. The NAVpilot-300 processor unit is directly connected from the DBW (CAN) port to the Optimus CAN2 bus. The NMEA2000 port is connected to the NMEA2000 backbone for navigation data.
  • Page 4 NAVpilot-300 Initial Settings Enter the NavPilot 300 Installation Menu by holding down the back/tools button while quickly pressing the STBY key 3 times. In the NavPilot Installation Menu locate, and [Ship’s Characteristics]. select Set [Boat Type] to appropriate EVCS selection. Outboard,...
  • Page 5 Seastar Optimus system automatically sets the Navpilot 300 to STBY (standby). When this happens, the NAVpilot-300 will display the [OVRD] icon on the top of the screen. Note: Two rudders are controlled separately during Optimus operation modes.

  • Page 6: Compatible Software Versions

    The following photo shows how operation modes of the Seastar Optimus system are shown on Optimus CANtrak displays: POSITION HOLD (left), HEADING HOLD, and POSITION & HEADING HOLD (right). Compatible software versions Navpilot 300 Seastar Optimus PRODUCT INFORMATION Make sure that the Optimus PCM SW0250 Part Number: software is Rev T or later.
  • Page 7 Navpilot 300/Seastar Optimus Interface Diagram --- END --- All brand and product names are registered trademarks, trademarks or service marks of their respective holders.
