ASSEMBLY AND
PARTS LIST MANUAL
SLMD SERIES AUGER
SLMD10-59 • SLMD10-66
SLMD10-72
www.meridianmfg.com

Advertisement

Table of Contents
loading

Related Manuals for Meridian SLMD Series

Summary of Contents for Meridian SLMD Series

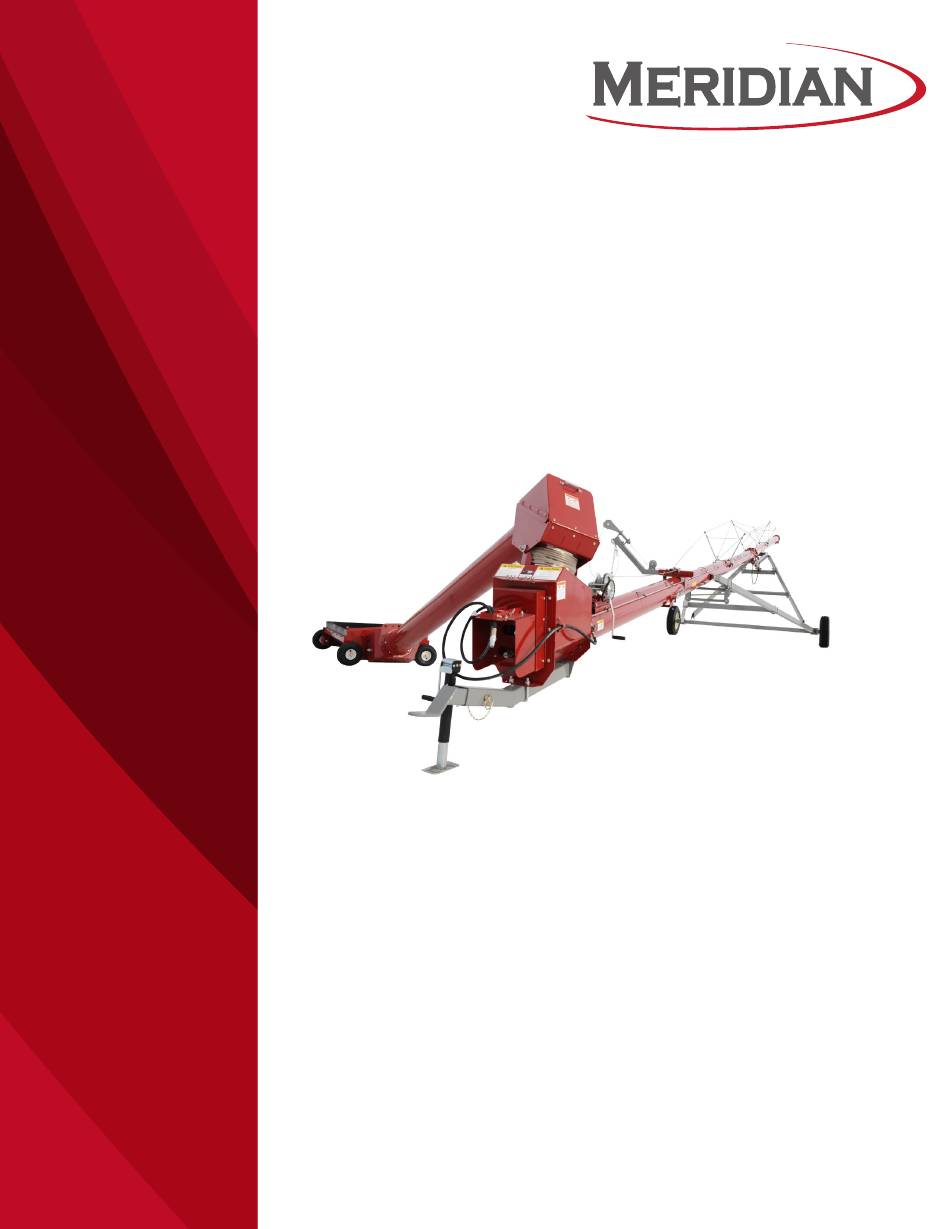

  • Page 1 ® ASSEMBLY AND PARTS LIST MANUAL SLMD SERIES AUGER SLMD10-59 • SLMD10-66 SLMD10-72 www.meridianmfg.com...

  • Page 2: Declaration Of Conformity

    PO Box 1996 2800 Pasqua Street North Regina, Sk,Canada S4P 3E1 Declare the Augers listed below conform to the 2006/42/EC Machinery Directive SLMD10 Series WFN 1004 The Meridian SLMD10 Series Auger and Tube Assembly is designed for the movement of Grains and Cereals. 13000003448-10-01...

  • Page 3: Table Of Contents

    GENERAL TABLE OF CONTENTS GENERAL Declaration of Conformity Table of Contents Sign Off Sheet ASSEMBLY Set Up Procedure Tube And Truss Assembly Winch Assembly Hitch Assembly Top Lift Frame Assembly Frame Assembly Lift Arm Assembly Feed Tube Assembly Hopper Assembly PARTS Main Frame Assembly - SLMD10-59 Main Frame Assembly - SLMD10-66...
  • Page 4 GENERAL MERIDIAN GRAIN EQUIPMENT SIGN OFF SHEET As a requirement of OSHA, it is necessary for the employer to train the employee in the safe operation and safety procedures with this equipment. We include this sign-off sheet for your convenience and personal record keeping.
  • Page 5 ASSEMBLY SET UP PROCEDURE Follow and complete steps 1 through 6 on Follow and complete steps 1 through 20 on page B8, and then proceed to step 10 on page B2 using page B3 reference drawings this page. and then proceed to step 2 on this page. Hydraulic lines: Follow and complete steps 1 through 9 on Short Line connected to upper steel hydraulic...
  • Page 6 ASSEMBLY TUBE AND TRUSS ASSEMBLY 10. Thread second nut to eyeblot and lock. 1. Connect tube assembly A to tube assembly B as shown in (FIGURE 01), ensure proper alignment 11. Repeat steps 5 to 10 to install second of flight assemblies. SHORT CABLE.
  • Page 7 ASSEMBLY TUBE AND TRUSS ASSEMBLY BOOT-END LONG CABLE HEAD-END SHORT CABLE FRAME ASSEMBLY BASE PLATE TOP LIFT FRAME ASSEMBLY BASE PLATE FIGURE 01 LONG CABLE LONG CABLE SHORT CABLE TUBE SADDLE FIGURE 03 TUBE SADDLE FIGURE 02 LONG CABLE LONG CABLE SHORT CABLE SHORT CABLE FIGURE 05...
  • Page 8 ASSEMBLY WINCH ASSEMBLY 1. Attach item 1 to item 2 with 3/8" dia. 6. Install item 7 to 6. carriage bolts and nuts. Leave loose. See (FIGURE 07). 7. Insert item 8 through items 7 & 6. 2. Mount items 1 and 2 to item 3 using 1/2 dia. 8.
  • Page 9 ASSEMBLY HITCH ASSEMBLY 1. Install item 1 onto 2 using 5/8" dia. u-bolt, 5. After completion of SET-UP PROCEDURE washers and lock nuts at HITCH END, and steps 4 through 10, continue with HITCH three 1/2" dia. bolts and lock nuts at TUBE ASSEMBLY steps 6 to 8.
  • Page 10 ASSEMBLY TOP LIFT FRAME ASSEMBLY 5. Connect item 2 to item 4 using four 5/8" dia. x 1. Lay frame out as shown in (FIGURE 09). Ensure 1-1/2" UNC bolts, washer and nuts. items 1 & 2 are on two 2x4's FLAT. 6.
  • Page 11 ASSEMBLY FRAME ASSEMBLY 7. After completion of SET UP PROCEDURE 1. Lay frame out as shown in (FIGURE 10), ensure steps 6 through 8, proceed to step 8 on this item 2 (axle) is on jack stands prior to beginning page.
  • Page 12 ASSEMBLY LIFT ARM ASSEMBLY 1. Slide LIFT ARM ASSEMBLY into SADDLE 4. Slide cable through item 2. Locate item 2 7" ASSEMBLY and fasten in place using items 3 from cable end. Bend the last 7" of cable back and 5. onto itself and fasten using item 1.
  • Page 13 ASSEMBLY FEED TUBE ASSEMBLY 5. Attach item 7 to item 2 with three 1/4" dia. x 3/4" whiz 1. Assemble item 1 to item 2 with two 5/8" dia. x 1-1/2" bolts c/w whiz nuts. UNC bolt c/w lock nut. 6.
  • Page 14 ASSEMBLY HOPPER ASSEMBLY 1. Fasten items 6 and 7 to item 1 with 7 5. Fasten item 2 to item 1 with 1" x 2 " bolt, washer and lock nut. " x 1" carriage bolts and whiz nuts. 6. Use item 10 to lock down item 9 to item 2 2.

  • Page 15: C1 Main Frame Assembly - Slmd10-59

    PARTS MAIN FRAME - SLMD10-59 13000003448-12-01...

  • Page 16: C3 Main Frame Assembly - Slmd10-66

    PARTS MAIN FRAME - SLMD10-59 SLMD10-59 QUANTITY REF # PART # DESCRIPTION 13000003380-00 Threaded Rod Assembly 13000003382-00 Lock 13-0702-12064 Hex Cap Screw 3/4 x 4-10 13000003389-00 Tie Rod (L.H) 13000003379-00 Tie Rod 13000003390-00 Tie Rod (R.H) 13000003381-00 Threaded Rod Swivel Assembly 13-0725-00016 Hex Nut 1-8 13000003007-00...

  • Page 17: C5 Main Frame Assembly - Slmd10-72

    PARTS MAIN FRAME - SLMD10-66 13000003448-27-01...
  • Page 18 PARTS MAIN FRAME - SLMD10-66 SLMD10 - 66 QUANTITY REF # PART # DESCRIPTION 13000003380-00 Threaded Rod Assembly 13000003382-00 Lock 13-0702-12064 Hex Cap Screw 3/4 x 4 -10 13000003389-00 Tie Rod (L.H) 13000003379-00 Tie Rod 13000003390-00 Tie Rod (R.H) 13000003381-00 Threaded Rod Swivel Assembly 13-0725-00016 Hex Nuts 1"...
  • Page 19 PARTS MAIN FRAME - SLMD10-72 13000003448-28-01...
  • Page 20 PARTS MAIN FRAME - SLMD10-72 SLMD10 - 72 REF # PART # QUANTITY DESCRIPTION 13000003380-00 Threaded Rod Assembly 13000003382-00 Lock 13-0702-12064 Hex Cap Screw 3/4 x 4-10 13000003389-00 Tie Rod (L.H) 13000003379-00 Tie Rod 13000003390-00 Tie Rod (R.H) 13000003381-00 Threaded Rod Swivel Assembly 13-0725-00016 Hex Nut 1"...
  • Page 21 PARTS A - FRAME ASSEMBLY SLMD10 - 59 REF # PART # QUANTITY DESCRIPTION 13000002978-00 Frame Lift Bottom w/Grease Fitting 13000003325-00 Pivot Tube 13000003326-00 Pivot Rod Assembly 13-0709-10024 Carriage Bolt 5/8-11 UNC - 1.5 13000002993-00 Top Lift Frame Cradle 13000002987-00 Frame Lift Top LH c/w Grease Fitting 13000002984-00 Frame Lift Top RH c/w Grease Fitting...
  • Page 22 PARTS A - FRAME ASSEMBLY SLMD10 - 66 QUANTITY REF # PART # DESCRIPTION 13000002979-00 Frame Lift Bottom w/ Grease Fitting 13000003325-00 Pivot Tube 13000003326-00 Pivot Rod Assembly 13-0709-10024 Carriage Bolt 5/8-11 UNC - 1.5 13000002993-00 Top Lift Frame Cradle 13000002988-00 Frame Lift Top LH c/w Grease Fitting 13000002985-00...
  • Page 23 PARTS A - FRAME ASSEMBLY SLMD10 - 72 REF # PART # QUANTITY DESCRIPTION 13000002980-00 Frame Lift Bottom 13000003325-00 Pivot Tube 13000003326-00 Pivot Rod Assembly 13-0709-10024 Carriage Bolt 5/8-11 UNC - 1.5 13000002993-00 Top Lift Frame Cradle 13000002989-00 Frame Lift Top LH c/w Grease Fitting 13000002986-00 Frame Lift Top RH c/w Grease Fitting 13-0702-10024...
  • Page 24 PARTS PTO SHAFT ASSEMBLY SLMD10 QUANTITY REF # PART # DESCRIPTION 13000002419-00 Bearing Retainer 13000002424-00 Weasler Plastic Shield Inner Guard 13000002425-00 PTO Nylon Bearing 13000002428-00 PTO Ball Shear Assembly 13000002417-00 Yoke & Shaft 13000002423-00 Safety Sign 13000002421-00 Safety Sign 13000002416-00 Joint Housing 13000002411-00 Yoke &...
  • Page 25 PARTS HOPPER - LOWER PROFILE 13000003448-01-02...
  • Page 26 PARTS HOPPER - LOWER PROFILE SLMD10 REF # PART # QUANTITY DESCRIPTION 13000004683-00 Rubber 13000004675-00 Mesh 13-0712-06012 Flange Lock Bolt 3/8 x 3/4-16 13000003724-00 12EBL Universal Joint - 1 1/4" RND 13-0740-00808 Woodruff Key, 1/4" x 1" 13000004666-00 Flight RH 13-0736-00016 Flat SAE Washer 1"...
  • Page 27 PARTS HOPPER - 60" 13000003448-09-01...
  • Page 28 PARTS HOPPER - 60" SLMD10 REF # PART # QUANTITY DESCRIPTION 13000003045-00 Flight Assembly Hopper RH 13000003047-00 Guard Flight 13000003048-00 Long Rubber Bracket 13000003515-00 Drive Shaft 13000003043-00 Rubber 13000003046-00 Flight Assembly Hopper LH 13000003060-00 Pivot Spacer 13000003056-00 Inspection Door Closure 13-0702-06024 Hex Cap Screw 3/8 x 1-1/2 -16 13-0702-06036...
  • Page 29 PARTS FEED AUGER HEAD AND TUBE 13000003448-15-01...
  • Page 30 PARTS FEED AUGER HEAD AND TUBE SLMD10 REF # PART # QUANTITY DESCRIPTION 13-0706-04008 Self Threading Screw 1/4 x 1/2 13000003029-00 Handle 13000003032-00 Cover Hinge 13-0731-00004 Flange Lock Nut 1/4-20 13000003030-00 Rain Guard (LH & RH) 13000003028-00 Head Cover Assembly 13-0712-04012 Flange Lock Bolt 1/4 x 3/4-20 13000003021-00...
  • Page 31 PARTS LIFT ARM 13000003448-16-02...
  • Page 32 PARTS LIFT ARM SLMD10 QUANTITY REF # PART # DESCRIPTION 13-0734-00010 Spring Lock Washer 5/8" 13000003148-00 Weldment - Pivot 13-0702-10040 Hex Cap Screw 5/8 x 2-1/2-11 13000003149-00 Bushing 13-0731-00006 Flange Lock Nut 3/8-16 13-0702-08056 Hex Cap Screw 1/2 x 3-1/2-13 13000003155-00 Lift Arm Safety Chain 13000002796-00...
  • Page 33 PARTS GEAR BOX ASSEMBLY - TOP SLMD10 QUANTITY REF # PART # DESCRIPTION 13000002824-00 Shaft - Input 13000002822-00 Seal - Input 13000002800-00 Quill 13000002805-00 Snap Ring 13000001006-00 Tapered Roller Bearing Cup (Inner) 13000002807-00 Gasket 13000002804-00 Washer Gear Box 13000002947-00 Shaft - Output 13000002821-00 Sheild - Output 13000002801-00...
  • Page 34 PARTS GEAR BOX ASSEMBLY - BOTTOM SLMD10 REF # PART # QUANTITY DESCRIPTION 13000002962-00 Shaft - Pinion Output 13000002825-00 Shield - Output 13000002800-00 Quill 13000002804-00 Washer Gear Box 13000001006-00 Tapered Roller Bearing Cup (Inner) 13000002820-00 Washer - Gear Box 13000001005-00 Tapered Roller Bearing Cone (Outer) 13-0702-05012 Hex Cap Screw 5/16 x 3/4-18...
  • Page 35 PARTS BOOT 13000003448-17-01...
  • Page 36 PARTS BOOT SLMD10 REF # PART # QUANTITY DESCRIPTION 13-0712-06016 Flange Lock Bolt 3/8-16 UNC x 1 13-0731-00007 Flange Lock Nut 7/16-14 UNC 13000003012-00 Swivel Large Top Plate 13000003011-00 Swivel Small Top Plate 13000003013-00 P.R. Large Spacer Plate 13000003010-00 Pivot Ring - Small Spacer Plate 13000003009-00 Pivot Assembly 13-0709-07020...

  • Page 37: Tube Assembly

    PARTS TUBE ASSEMBLY - SLMD10-59 13000003448-20-02...

  • Page 38: Tube Assembly

    PARTS TUBE ASSEMBLY - SLMD10-59 SLMD10-59 REF # PART # QUANTITY DESCRIPTION 13000003065-00 Flight Top 13-0702-08024 Hex Cao Screw - 1/2-13 UNC - 1.5 13000002682-00 Head - End Plate 13-0731-00006 Flange Nut - 3/8-16 UNC 13000002703-00 Reverse Bearing 13-0731-00008 Flange Nut - 1/2-13 UNC 13000003007-00 Washer Plated 13-0733-00008...
  • Page 39 PARTS TUBE ASSEMBLY - SLMD10-66 13000003448-21-02...
  • Page 40 PARTS TUBE ASSEMBLY - SLMD10-66 SLMD10-66 REF # PART # QUANTITY DESCRIPTION 13000003512-00 Flight Top 13000002703-00 Reverse Bearing 13073100008 Flange Nut - 1/2-13 UNC 13000003007-00 Washer Plated 13-0734-00008 Spring Lock Washer 1/2" 13-0702-08028 Hex Cap Screw 1/2-13 UNC - 1.75 13-0725-00010 Hex Nut 5/8"...
  • Page 41 PARTS TUBE ASSEMBLY - SLMD10-72 13000003448-22-02...
  • Page 42 PARTS TUBE ASSEMBLY - SLMD10-72 SLMD10-72 REF # PART # QUANTITY DESCRIPTION 13000003513-00 Flight Top 13000002703-00 Reverse Bearing 13-0731-00008 Flange Nut - 1/2-13 UNC 13000003007-00 Washer Plated 13-0734-00008 Spring Lock Washer 1/2" 13-0702-08028 Hex Cap Screw 1/2-13 UNC - 1.75 13-0725-00010 Hex Nut 5/8"...
  • Page 43 PARTS TRUSS ASSEMBLY BOOT-END LONG CABLE SHORT CABLE HEAD-END FRAME ASSEMBLY BASE PLATE TOP LIFT FRAME ASSEMBLY BASE PLATE SLMD10 TRUSS ASSEMBLIES KEY PLAN FIGURE K1 FIGURE K2 FIGURE K4 FIGURE K3 FIGURE K5 13000003448-23-01...
  • Page 44 PARTS TRUSS ASSEMBLY SLMD10 QUANTITY REF # PART # DESCRIPTION 13000003080-00 Short Support Cable - 1800 13000003081-00 Short Support Cable - 2000 13000003082-00 Short Support Cable - 2200 13000003083-00 Long Support Cable - 1800 13000003084-00 Long Support Cable - 2000 13000003085-00 Long Support Cable - 2200 13000003087-00...
  • Page 45 PARTS FULTON K1550 BRAKE WINCH AUGER 12-95 REF # PART # QUANTITY DESCRIPTION Frame Spacer (Not Available to Order) Frame (Not Available to Order) 13-0729-00006 Nylon Locknut 3/8 - 16 13000001936-00 Input Shaft 13-0729-00008 Nylon Locknut 1/2 - 13 13000001672-00 Cable Clamp 13000001935-00 Drum Assembly...
  • Page 46 PARTS BOLT ON WINCH PLATE SLMD10 REF # PART # QUANTITY DESCRIPTION 13-0739-02040 1/8" x 2 1/2" Hair Pin 2717-00 Handle Assembly 13000003103-00 36 Tooth Sprocket - 15 Tooth 80 13000001175-00 Winch Drive Chain 13000003126-00 Drive Winch 13-0731-00006 Flange Lock Nut 3/8-16 UNC 13000002713-00 3/4"...
  • Page 47 PARTS OPTIONAL - WINCH HYDRAULIC 13000003448-08-01...
  • Page 48 PARTS OPTIONAL - WINCH HYDRAULIC SLMD10 REF # PART # QUANTITY DESCRIPTION 13000042586-00 Hard Line 3/8" Bypass 13000042582-00 Hyd. Fit - 6MJ-6MP w/o Inner Set Screw Restrictor 13000042134-00 Lift Bypass Valve 13000042584-01 Hyd Fitting Tee - 6MB-6MJ-6MJ w/o Inner Set Screw 13000042580-00 Hydraulic Fitting - 10MB-6MP 13000042581-00...
  • Page 49 PARTS OPTION - GEAR REDUCER SLMD10 QUANTITY REF # PART # DESCRIPTION 13000004440-00 Output Shaft Cover - Back 13000004443-00 Bearing - Front 13000004438-00 Housing 13000004449-00 Worm Shaft 13000004436-00 Hex Screw - Long 13000004433-00 Snap Ring 13000004448-00 Oil Cover 13000004445-00 Frame 13000004435-00 Hex Screw - Medium 13000004432-00...
  • Page 50 13000001526-13 13000003705-00 Decal - SLMD10-59 13000003706-00 Decal - SLMD10-66 13000003707-00 Decal - SLMD10-72 13000003685-00 Decal - Meridian Decal - Caution (Large) 13000001653-00 Decal - Warning 13000001654-00 Decal - Danger - Upending Hazard 13000001655-00 Decal - Danger - Electrocution Hazard 13000001656-00...

  • Page 51: Index

    INDEX 13000003448-03-02...
  • Page 52 INDEX 13000003448-03-02...
  • Page 53 INDEX 13000003448-03-02...
  • Page 54 INDEX 13000003448-03-02...
  • Page 55 INDEX 13000003448-03-02...

  • Page 56: Warranty E1

    4. The obligation of Meridian under this warranty shall not arise unless Meridian is notified and this warranty is presented together with a written statement specifying the claim or defect within thirty (30) days after the failure is first detected or made known to the Purchaser and within: (i) two (2) years, or ninety (90) days in the case of commercial use;...
  • Page 57 Meridian shall not be responsible for any warranty offered by the Purchaser to its customers with respect to the Goods and the Purchaser shall indemnify Meridian with respect to same if any of those customers makes a claim against Meridian relating to any such warranty.
  • Page 58 PH: 204.325.7883 TF: 855.346.3712 TF: 800.830.2467 TF: 800.661.1436 TF: 800.667.5904 TF: 800.437.2334 TF: 800.665.7259 FX: 519.620.6041 FX: 780.672.4759 FX: 403.320.7579 FX: 306.545.4216 FX: 712.732.1028 FX: 204.325.5556 © 2014 Meridian Manufacturing Inc. Registered Trademarks Used Under License. Printed in Canada (11/14)
