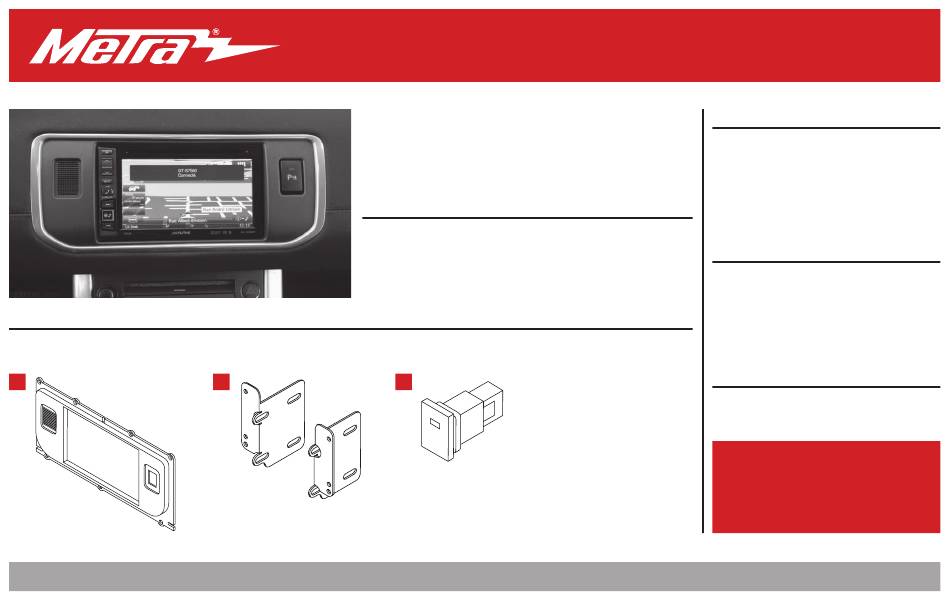

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Parking brake switch • D) Parking brake switch harness (not shown)
A
Metra. The World's Best Kits.
®
Land Rover Range Rover Evoque
2012-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
• ISO DDIN radio provision
• Painted matte black
B
MetraOnline.com
C
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
95-9403B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
(with 5" screen)
Dash Disassembly . .................................................2
Kit Assembly
–ISO DDIN radio provision . ....................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • AX-LR902 (without amp)
• AX-LR903 (with amp, 12-14)
Antenna Adapter: 40-EU56
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Torx T-15 and T-20 screwdriver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 2/19/18 INST95-9403B
