The following instructions will allow you to set up your AutoView 200 easily. Should you require
further assistance, please consult your Installer/User Guide.
1. Power down all computers that will be part of your Com-
mander system.
Connecting your Local Peripherals

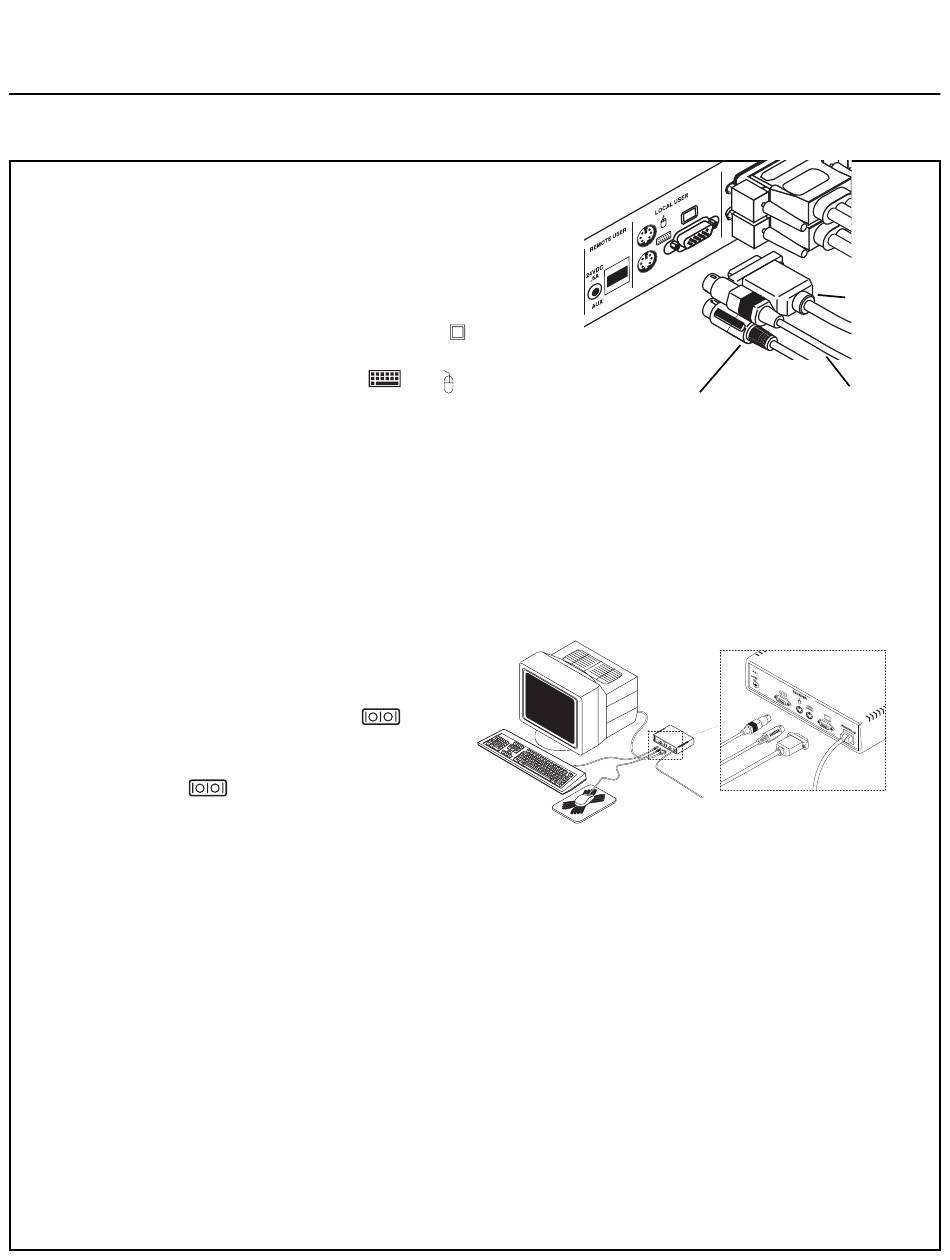

2. Locate your PS/2 keyboard, VGA video monitor and
PS/2 mouse.
3. Plug your VGA monitor cable into the port labeled
of your AutoView 200. Plug your PS/2 keyboard cable and your
PS/2 mouse cable into the ports labeled
Connecting your Remote Peripherals
4. Plug a standard Category 5 Unshielded Twisted Pair cable (up to 500 feet) into the RJ-45 style modular jack on
the rear of the AutoView 200. Cybex C5T or Cybex P5T cable is strongly recommended to achieve best perfor-
mance and maximum distance. If you use a different Category 5 cable, make sure it is terminated to the EIA
(TIA) 568 B standard, commonly used for 10BaseT Ethernet.
5. Route the Category 5 cable to the location where you intend to place the secondary monitor, keyboard and mouse.
6. Place the LongView Receiver near the monitor and
connect your monitor, keyboard and mouse to the
connectors on the rear of the Receiver just as you
would connect them to your PC. Make sure you
connect your monitor's power supply to appropriate
electrical outlets. (Please note that the
connector on the rear of the Receiver is not used in
an AutoView 200 configuration. Do not connect
anything to the
Receiver.)
7. Connect the Category 5 cable to the modular jack on the rear of the Receiver.
8. There are two power ports for the LongView Receiver. One on the back of the AutoView 200 and one on the
Receiver. Connect the circular power plug from the wall mount power supply to either power port, whichever is
most convenient for you. Then plug the power supply into a convenient electrical outlet. Verify that the
Receiver's POWER light is now lit.
Quick Installation Guide
and
connector on the rear of the
on the back
respectively.
PS/2 KEYBOARD
VGA MONITOR
PS/2 MOUSE
