Automation System TROVIS 6400

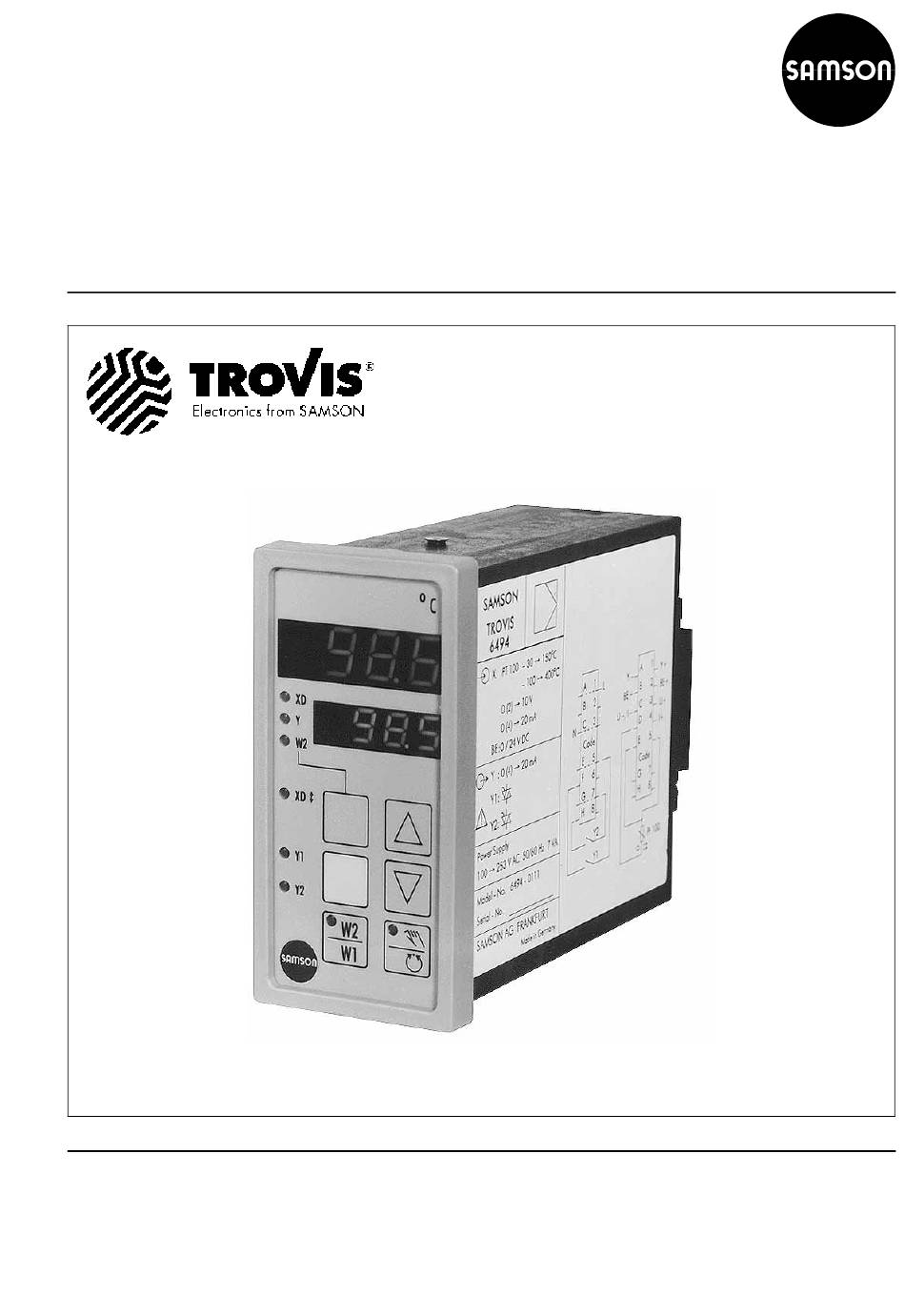

Compact Controller TROVIS 6494
Mounting and operating instructions
Edition June 1994
EB 6494 E

Advertisement

Table of Contents
loading

Related Manuals for Samson TROVIS 6400

Summary of Contents for Samson TROVIS 6400

  • Page 1 Automation System TROVIS 6400 Compact Controller TROVIS 6494 Mounting and operating instructions Edition June 1994 EB 6494 E...

  • Page 2: Table Of Contents

    Contents Page Description Version Technical data Installation Electrical connections Operation Control panel, displays and operating elements Operation of the three levels 4.2.1 Operating level Modify setpoint W1 Display sensor line breakage 4.2.2 Parameterization level Determine and modify the control parameters Open the parameterization level Proportional-action coefficient P (Kp) Integral-action (reset) time I (Tn)
  • Page 3 Contents Page Select controller output Y Operating direction Yr Select the current range of controller output Y with Y0 Safety output (restart) value YSt Limit alarm condition for switching output Y1 Switching output Y1 as break or make contact Y1C Limit alarm condition for switching output Y2 Switching output Y2 as break and make contact Y2C Adaption (self-tuning) AdP...

  • Page 4: Description

    1. Description TROVIS 6494 is a digital controller integrating many sophisticated functions into a single com- pact module used to automate plants used in industrial applications and process engineering. Its well-thought functional design, which takes user needs into mind, allows diverse control cir- cuit arrangements to be configured.
  • Page 5 Fig. 1 ⋅ Functional structure of controller...

  • Page 6: Technical Data

    1.2 Technical data Input options Controlled variable x Ri = 50 Ω d.c. current signal 4(0) to 20 mA d.c. voltage signal 2(0) to 10 V Ri > 100 kΩ Resistance thermometer Pt 100 (three-wire circuit) Measuring ranges –100.0 to 400.0 °C –30.0 to 150.0 °C Resistance thermometer Ni 100 (three-wire circuit) Measuring ranges...

  • Page 7: Installation

    2. Installation TROVIS 6494 is smartly engineered as a panel-mount unit, the front dimensions of which com- +0.6 +0.8 pactly measure 48 x 96 mm . A panel cut-out of 45 x 92 is to be fabricated for as- sembly of the plastic enclosure. After sliding the controller in the panel cut-out, the supplied clamps depicted in Fig.

  • Page 8: Electrical Connections

    3. Electrical connections The easy-to-install compact controller is equipped with plug-type connectors (snap-in contacts) for lead sizes 0.3 to 0.8 mm and an insulating diameter of 1.3 to 2.4 mm or screw terminals for lines 0.5 to 1.5 mm . When connecting the electric leads, note the pertinent VDE 0100 regu- lations and the currently valid regulations mandated by the country where the controller is in- tended for use.
  • Page 9 x-Recorder Pt 100 4(0) to 20 mA Ni 100 24 V DC Y1 and Y2 can defined by the user for use as limit values or motor drive Fig. 5 ⋅ Diagram of connections WARNING Always disconnect the power supply lines prior to plugging/removing the plug connectors.

  • Page 10: Operation

    4. Operation 4.1 Control panel, displays and operating elements °C Fig. 6 ⋅ Front view 1 Controlled variable display (top display) Controlled variable x, sometimes referred to as the Process Variable PV, is displayed in the operating level. The value of the selected entry option is can be viewed in the parameteriza- tion and configuration level.
  • Page 11 5 Cursor keys Increase displayed value Decrease displayed value Function in the operating level (standard operation): After selecting setpoint W1 or W2 → (modify setpoint directly), acknowledge the value using ENTER key (8). In MANUAL operating mode: Direct adjustment of output signal Y. Function in the parameterization/configuration level: Selection of the individual entry options in both directions.

  • Page 12: Operation Of The Three Levels

    4.2 Operation of the three levels Operation of the controller is divided into the following three levels of operation, also referred to as operating modes: 1) operating level (standard operation), 2) parameterization level and 3) configuration level. 4.2.1 Operating level This is the standard operating level of the controller.

  • Page 13: Display Sensor Line Breakage

    Modify setpoint W2 Setpoint W2 is presented for viewing purposes in the bottom display panel. A change of setpoint W2 is performed analogous to that of setpoint W1. The yellow LED (10) of setpoint W2 illuminates. If no LED (10) illuminates, W1 is selected as active setpoint in the display. Display sensor line breakage If a sensor wire break or short-circuit is detected at the controller input or an input range is exceeded in either direction, three bars appear in the top dis-...

  • Page 14: Parameterization Level

    4.2.2 Parameterization level Control parameters can be set in the parameterization level. Values set in this level are protected against unauthorized access by means of a code number (personal security code lock). Access to the parameterization level must be first obtained by entering the code number before set values can be modified.

  • Page 15: Proportional-Action Coefficient P (Kp)

    Proportional-action coefficient P (Kp), P-action component of the controller Range of values 0.1 to 100.0 Integral-action (reset) time I (Tn), I-action component of the controller Range of values 0 to 2000 s, disabled when set to 0 Derivative-action (rate) time D (Tv), D-action component of the controller Range of values 0 to 2000 s, disabled when set to 0 Derivative-action (rate) gain dP , gain of the D-action component Range of values 0.0 to 10.0 (D-action component only enabled when a...

  • Page 16: Dead Band (Neutral Zone) Td

    For Y = 0 or 2 Duration of period for pulse-pause Switching output (Y1/Y2 = 8 or 9) Setting range: 1 to 9999 sec. For Y = 1 Motor operating time of the final control element connected Setting range: 1 to 9999 sec. Dead band (neutral zone) td Range of values 0.1 to +100.0 % in reference to the output signal.

  • Page 17: Configuration Level

    4.2.3 Configuration level In the configuration level, the controller function is determined for the required control task to be solved. Access can be made to the configuration level by entering the code number. The code number is preset (factory preconfiguration) to 0 and can be modified in configuration block CCO (see page 22).

  • Page 18: Select Input Signal In

    Select input signal In Configuration block In determines the controller input signal. The following input options can be defined using selection options 0 to 5: 0 — Pt 100 – 30.0 to 150.0 °C 1 — Pt 100 –100.0 to 400.0 °C 2 —...

  • Page 19: Unit Of Temperature Int

    Unit of temperature Int Temperatures can be displayed in either °Celsius or °Fahrenheit. 0 — °C 1 — °F Any change of this configuration block causes the new measuring range limits to be stored. — Example: In = 0 → Measuring range In_ _ = –30.0 and In = 150.0 in °C (with Int = 0 ).

  • Page 20: Setpoint Ramp Spr

    Setpoint ramp SPr (explanatory Fig. 7, see page 23) The setpoint ramp causes a modification of the setpoint over a defined time. Range of values: 0 to 9999 sec. The time in which a modification of the setpoint by 100 % should be set. This time ramp is effective for every modification of setpoint.

  • Page 21: Safety Output (Restart) Value Yst

    Safety output (restart) value YSt Should the sensor line break, this is used as the restart value following power failure If the senor line breaks, the controller output is automatically set to specified value Yst . The controller output value can be set from –10.0 to 110.0 % of the output variable range.

  • Page 22: Switching Output Y2 As Break And Make Contact Y2C

    Switching output Y2 as break and make contact Y2C 0 — Break (NO) contact 1 — Make (NC) contact Adaption (self-tuning) AdP 0 — Off, no adaption 1 — Ready for adaption, optimize following disturbance z Adaption is an auto-tuning function implemented in the start-up phase which allows the controller to independently adapt (tune) itself to the condi- tions of the controlled system and calculate the optimum control par- ameters.

  • Page 23: Code Number For Servicing

    Code number for servicing Page 33 of this operating manual contains the subordinate code number for servicing which should be memorized. This special code allows, despite the entered code number CPA and CCO , values to be modified in the configuration level. In order to prevent this code number from access by unauthorized persons, either cut out or scribble over this number on page 33, making it unrecognizable.

  • Page 24: Switching Outputs Y1 And Y2

    5. Switching outputs Y1 and Y2 Depending on how configuration block Y was selected, the output signal is defined in TROVIS 6494 as either a three-step or on-off output signal and/or limit contacts. Continuous-action Positioner Switching outputs controller section Y PID Internal feedback Motor operating time t1 X-Value for recorder input...

  • Page 25: Three-Step Controller With Internal Feedback (Y = 1)

    5.1 Three-step controller with internal feedback ( Y = 1 ) The three-step controller incorporating internal feedback is selected in the configuration level with configuration switch Y = 1 . In this configuration scheme, switching output Y1 is then active when the difference between the calculated Y signal and the internal feedback is positive.

  • Page 26: Limit Contacts

    5.2 Limit contacts ( Y = 0 or 2 ) 5.2.1 General definition Each limit contact ( Y1 and Y2 ) can, independent of one another, be assigned a value. This value can be monitored to determine whether it is exceeded in either direction. Limit contacts are as- signed using configuration block Y1 (switching output Y1 ) and configuration block Y2 (switch- ing output Y2 ).

  • Page 27: Assignment Of The Limit Alarm Conditions For Switching Outputs Y1 And Y2

    5.2.2 Assignment of the limit alarm conditions for switching outputs Y1 and Y2 Limit alarm contact Y1 is assigned in configuration block Y1 . Y2 is assigned with configuration block Y2 . The default configuration does not assign an alarm condition to the limit alarm con- tacts (configuration switches Y1 = 0 and Y2 = 0 ).

  • Page 28: Pulse-Modulated On-Off Controller Output At Switching Output Y1 And/Or Y2

    5.2.4 Pulse-modulated on-off controller output at switching output Y1 and/or Y2 The pulse-modulated controller output is a switching output in which the output signal is a pulse frequency. In this case, the pulse-pause ratio is varied for a specified period of time ( t1 ). Here, the period is entered in seconds with parameter t1 .

  • Page 29: Start-Up Procedure

    6. Start-up procedure EPROM version: After switching on the power supply, the controller displays the current EPROM version installed for a few seconds in the bottom display panel; e.g., 1.00,. Device type 6494 is displayed in the top display panel (note: important information to be specified when servicing or placing customer inquiries!).

  • Page 30: Three-Step Controller With Internal Feedback ( Y = 1 )

    6.1.2 Three-step controller with internal feedback ( Y = 1 ) Controlled variable x can also be used as a recorder input. — Open the configuration level (see page 17) — Select the input signal via In — — Determine the input range via In_ _ and In —...

  • Page 31: Optimize The Control Parameters

    6.2 Optimize the control parameters (tune the controller to the controlled system) In order for the controller to keep the control deviations caused by disturbances in certain limits (or eliminate) for all setpoints, control parameters P , I , d and dP are used to adapt (tune) the controller to the dynamic performance of the controlled system.
  • Page 32 PD controller — In the parameterization level, specify control parameters with P = 0.1 , I = 0 = off and d = 0 = off , and set derivative-action (rate) gain dP normally to a value between 5 and 10 . —...

  • Page 33: Adaption (Self-Tuning)

    6.3 Adaption (self-tuning) For optimum configuration of control loops, the characteristic values of the controlled system must be known. Self-tuning is an automized function used to record and optimize the dynamic system characteristics. Self-tuning of TROVIS 6494 involves evaluation of the measured transfer function from which the ideal control parameters are calculated.

  • Page 34: Checklist

    Checklist: Device: Plant: Process designation: Date: Selection Designation Range of values Factory Start-up option/ default values/ block modifications Operating level: Controlled variable Dep. on input — — Internal setpoint 1 In_ _ to In Control deviation (error) –100.0 to 100.0 % —...
  • Page 35 Checklist: Device: Plant: Process designation: Date: Selection Designation Range of values Factory Start-up option/ default values/ block modifications Configuration level: Type of input signal 0 to 5 In_ _ Min. measuring range limit X Depending on In –100.0 — Max. measuring range limit X Depending on In 400.0 Decimal point...
  • Page 36 Front view Unit of temperature label Controlled variable display Control deviation (or value specification) display (10)* Setpoint (SP) display Controller output (or entry option) display (10) Operating key (7) Setpoint (SP) display (10) Control deviation Cursor keys (5) display (3)* Switching output MANUAL/AUTOMATIC display (4)
