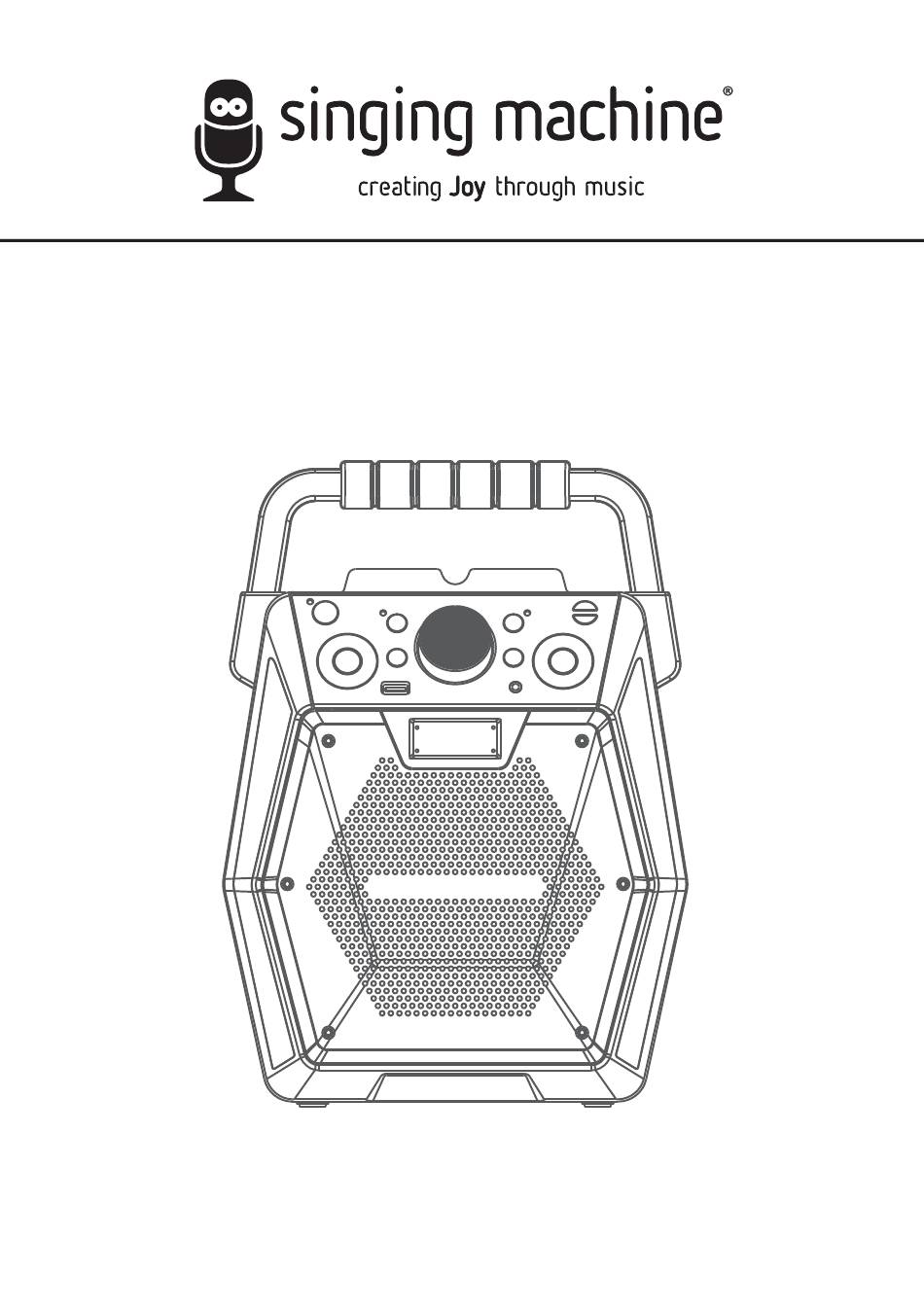

- Page 1 SML2200 INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
- Page 2 Warnings CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF CAUTION PLUG TO WIDE SLOT AND FULLY INSERT. RISK OF ELECTRIC SHOCK WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS DO NOT OPEN UNIT TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT FCC WARNING: This equipment may generate or use radio frequency energy.
- Page 3 Included What’s in the box. Main Unit Wired Microphone AC Adapter Manual Audio/Video Cables — E2 —...
- Page 4 Location of Controls (Top/Front) ECHO - Button Handle 17. FUNCTION Button 24. ENTER/ (Play/ Pause) Button ECHO + Button 18. MIC VOLUME – PAIR Button Button 25. KEY –/ Open/Close Tab 11. Bluetooth indicator (Navigation) 19. LIGHTS Button CD Compartment 12.
- Page 5 Location of Controls (Rear) 1. Mic 1 Jack 5. Right Audio Out Jacks 2. Mic Holders 6. Left Audio Out Jacks 3. Mic 2 Jack 7. DC In Jack 4. Video Out Jack 8. Battery Compartment Location of Controls (Display) PLAY/PAUSE PROGRAM REPEAT...
- Page 6 (White and Red) to the AUDIO OUT jacks located on the back AUDIO OUT VIDEO OUT (white - L (yellow) of the Singing Machine. red - R) REAR VIEW OF TV VIDEO AUDIO INPUT INPUT...
- Page 7 SML283-eng and fra.V4_Layout 1 11/7/16 8:37 AM Page 3 Connection MAKING THE CONNECTIONS Connecting to AC Power Insert the AC power cord into a INSTALLATION OF BATTERIES conveniently located AC outlet having 120V AC, 60Hz. “C” size “C” size UM2 1.5V UM2 1.5V Note: Make all connections before connecting...
- Page 8 Operation Connecting to Line In Jack Connect an external device by using an appropriate cable (3.5mm audio cable not included) as shown. Note: To External Unit AUDIO OUTPUT See page E18 to select and use the Line In / HEADPHONE JACK LINE IN function.
- Page 9 Operation Playing a CD Connect the unit as described previously; it should be connected to a TV. Press the ON/STANDBY button to turn the unit on; the power indicator will light. Lift the CD door and insert a CD (with standard or MP3+G files) or a CD+G by gently pressing it on the center spindle.
- Page 10 Operation Playing a CD (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. Notes: • Never place anything other than a CD in the compartment, as foreign objects can damage the unit. • If no disc is inserted, “no” will appear on the display.
- Page 11 Operation Playing a CD (Continued) SKIP: Advance or go back one track by pressing the (Navigation / Skip -) and (Navigation / Skip +) button. REPEAT: During playback, press the PROG/REP button once to repeatedly play the selected song; the Repeat indicator will blink. Press the PROG/REP button a second time to repeatedly play the whole CD;...
- Page 12 Operation Playing a CD (Continued) Program Notes: • Press the STOP button TWICE to stop and clear the program. • If more than 20 tracks are attempted to be programmed, “FUL” will appear in the display. PAUSE: During playback, if you wish to pause the disc momentarily, press the ENTER/ button;...
- Page 13 Operation Playing Songs from the USB Connect the unit as described previously; it should be connected to a TV. Press the ON/STANDBY button to turn the unit on; the power indicator will turn on. Insert a USB flash drive into the USB slot on the unit so it faces upward.
- Page 14 Operation Playing Songs from the USB (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Press the MIC VOLUME + or – button as desired, which will affect both microphones. Press the ECHO + or – button to add an echo effect to your voice.
- Page 15 Operation Playing Songs from the USB (Continued) PROGRAM: You can program up to 20 tracks for playback in any desired order. While in the Stop mode, press the PROG/ REP button; the Program indicator will blink and ”P01” will appear on the display indicating the first program is ready to program.
- Page 16 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/ STANDBY button to turn the unit Repeatedly press the FUNCTION button to select the Bluetooth; “bt” will appear in the display. The unit automatically searches for and pairs a previously paired Bluetooth device (if previously paired).
- Page 17 Operation Using a Bluetooth Device (Continued) Start playback of your bluetooth device. Press the ENTER/ button during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 18 Operation Using a Bluetooth Device (Continued) RECORD YOUR VOCAL PERFORMANCE: To record your singing as well as the music, press the REC button. Recording will begin and the record indicator will light solid. When done recording, press the REC button again; the record indicator will turn off.
- Page 19 Operation Using the LINE IN Jack Connect the unit as described previously. Press the ON/ STANDBY button to turn the unit Connect the external unit to the LINE IN Jack on the front of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 20 Operation Using the LINE IN Jack (Continued) Press the MIC VOLUME + or – button as desired, which will affect both microphones. Press the ECHO + or – button to add an echo effect to your voice. RECORD YOUR VOCAL PERFORMANCE: To record your singing as well as the music, press the REC button.
- Page 21 • Remove (eject) the USB flash drive from your Select and purchase your favorite computer. karaoke music from the Singing Turn on the Singing Machine and connect the USB Machine Download Store. flash drive. Download your selected purchase(s) from the Singing Machine Digital •...
-
Page 22: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/STANDBY button to turn power on. • Confirm the AC adapter is connected securely to the back of the unit. •... -
Page 23: Specifications
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by The Singing Machine Company, Inc. is under license. Oth- er trademarks and trade names are those of their respective owners. - Page 24 Visit Our Website: www.singingmachine.com The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA Copyright © 2019 - All Rights Reserved. PRINTED IN CHINA 2200-1901-ENG01-US...
