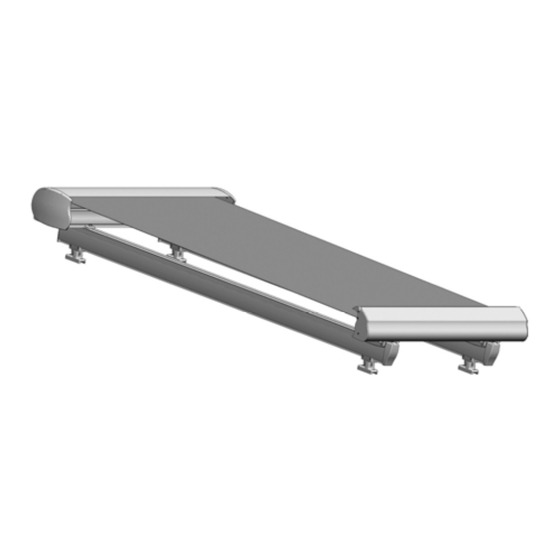

Eclipse SunRoof Plus Installation Instructions Manual

Version 4.13.16

Advertisement

Quick Links

Eclipse
SunRoof Plus
Installation Instructions
VERSION 4.13.16
Version 4.16
Please carefully read the ENTIRE instructions BEFORE installation.
If you have any questions, please contact our
Tech Department at 800.501.3850

Advertisement

loading

Summary of Contents for Eclipse SunRoof Plus

  • Page 1 Eclipse SunRoof Plus Installation Instructions VERSION 4.13.16 Version 4.16 Please carefully read the ENTIRE instructions BEFORE installation. If you have any questions, please contact our Tech Department at 800.501.3850...
  • Page 2 Tools Needed for BOTH versions: 4 & 6mm Allen wrenches 13mm open end wrench Large level Tape measures Tools for mounting hardware – neither provided Flat Mount – Version B (mounts on top of an existing structure) Determine the mounting area for the unit. The entire unit is fully supported by the four to six Flat Mount Brackets provided (if unit projection is 16-6 or greater, six brackets are provided).
  • Page 3 Mount the Flat Mount Brackets on the existing structure without fully tightening the mounting screws as you will need to carefully align them with the other brackets to accept the Guide Rail and operate smoothly – see sample below Install the Guide Rails onto the Flat Mount Brackets.
  • Page 4 Once all Brackets are properly aligned, DO NOT fully tightened them down yet. Place each Guide Rail into the Brackets and THEN tighten the 4mm Allen Set Screws on both sides of the Brackets to secure the Guide Rail and then tighten the Brackets to your structure.
  • Page 5 Wall Mounted with Posts – Version A (mounts to an existing wall and uses the provided post) Determine Guide Rail placement. For proper cassette box support, guide rails are to be placed no less than 6” in from each end and no more than 12” in from each end.
  • Page 6 Once the post location is determined, assemble the Cross Support & Legs. The top Union Section where the Guide Rails mount does have a fair amount of adjustment to square up your rails, just in case they are not in exact alignment with the Wall Mount Brackets.
  • Page 7 Attach the Angled Mount Bracket to top of the Cross Member Union Assembly. It is very important that the Wall Mount Bracket is properly aligned with the Angled Mount Bracket and that all four Guide Rail mounting points are square so don’t tighten these down fully yet.
  • Page 8 Tighten the 4mm Allen set screws to secure the Guide Rail to the Angled Mount Bracket then tighten the 6mm Allen Pivot Bolt. Adjust the Rails so that they are parallel and that the diagonals between the Guide Rails are equal. Adjustments can be made by moving the Angled Mount Bracket on the top of Cross Member Union.
  • Page 9 General Instructions (Both Versions): Place the Cassette Box on top of the Guide Rails near the Wall Mount Brackets and carefully slide it under the rear Attachment Tabs. Once the Cassette Box is properly aligned, fully tighten the tabs on each Rail with a 13mm wrench. Once the Back Tabs are tightened, flip the front bar up to reveal the front Attachment Tabs and the Cassette Box front flange, slide them up into place and fully tighten.
  • Page 10 Connect the motor to a power source to extend the front bar. You will need to unroll the front bar slightly past the front end of the rails. NOTE: the Front Bar is NOT attached to the Rails at this point in the installation so you will need help to walk the Front Bar down the Guide Rails.
  • Page 11 Center the Front Bar with the Cassette Box, making the distance between the Front Bar and Cassette Box opening equal on both sides as illustrated as H1 = H2 After the front bar is secured to the chariot re-check the guide rails for parallel, check the diagonal measurement, check that the guide rails and cross member are level, and your posts are squared.
  • Page 12 Limit switch programming and adjustments are made thorough the following buttons. Images shown are based on a single function remote. (1) = Up - retracts the fabric cover closed (4) = Used to copy remote (2) = Stops the fabric in any desired position (5) = Programming button (3) = Down - extends the fabric cover out REQUIRED: small paper clip or a small stiff wire...
  • Page 13 Eclipse SunRoof Plus Version “A” Measurements A: 11” From the top of the Cassette Box to the bottom on the Installation Bracket B: 11” From the mounting surface to the leading edge of the Front Bar (when fully retracted) C: 10” From the top of the Support Post to the Bottom of the Guide Rail D: 7’6”...
  • Page 16 WALL BRACKET - front view 4.75” 3.75” Holes = 0.375” x 0.5” Eclipse SunRoof Plus Wall Bracket Suggested hardware is 1/4”lag screws used on wall mounted: with washers with length determined SunRoof Plus ONLY based on installation surface Available in: White, Camel &...
