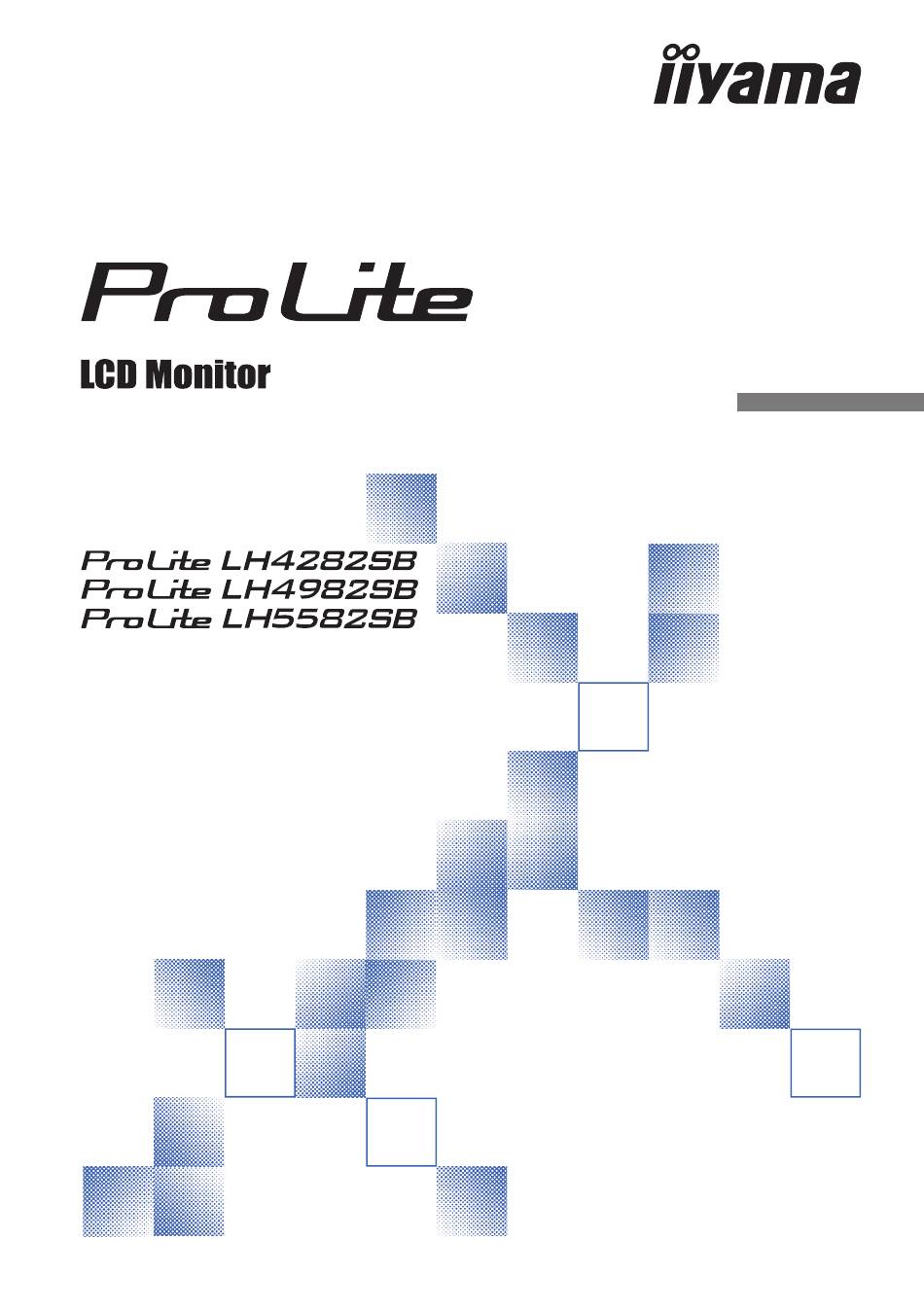

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL4282/PL4982/PL5582 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
ADJUSTMENT MENU CONTENTS ..........25 POWER MANAGEMENT FEATURE ..........40 TROUBLE SHOOTING ..............41 RECYCLING INFORMATION .............42 APPENDIX ..................43 SPECIFICATIONS : ProLite LH4282SB ........43 SPECIFICATIONS : ProLite LH4982SB ........44 SPECIFICATIONS : ProLite LH5582SB ........45 DIMENSIONS : ProLite LH4282SB ..........46 DIMENSIONS : ProLite LH4982SB ..........46 DIMENSIONS : ProLite LH5582SB ..........47... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE - When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position. - You may find slightly uneven brightness on the screen depending on the desktop pattern you use. - Page 8 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image. For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.
-
Page 9: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 10: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 11: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Front> <Back: Back Controller> Power Button MUTE Mute Button Enter / Input INPUT Select Button + Button - Button Up Button Down Button MENU Menu Button <Back: Remote sensor and power indicator - location> 1. Pull down the lens to improve remote control performance and ensure good visibility of the power status diode. - Page 12 ● ProLite LH4282SB <Back> Lighting : Normal Operation Blinking : Power Management (ECO Mode : Normal) Green * If there is no input signal from the computer and passes for 30 seconds. If turn off the Power Button on the Remote Control and the Power Indicator Orange Back Controller. Power Management (ECO Mode : Normal) If turn off the Power Button on the Remote Control and the Back Controller. Power Management (ECO Mode : Low power standby) Power Off Remote Sensor Remote Sensor...
- Page 13 ● ProLite LH4982SB / ProLite LH5582SB <Back> DVI OUT DVI-I DVI-I Connector DisplayPort IN DisplayPort DisplayPort Connector DisplayPort OUT DisplayPort DisplayPort Connector VGA IN VGA Connector COMPONENT VIDEO BNC Y/Pb/Pr BNC Connector (VIDEO IN) PC AUDIO IN Mini Jack Audio Connector SPEAKER SWITCH Internal speaker On/Off switch Keyhole for Security Lock Keyhole for Security Lock...
-
Page 14: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the monitor and the mount. -
Page 15: Controls : Remote Control
CONTROLS : REMOTE CONTROL Turn the monitor ON and OFF. Control playback of media files. : Play : Stop : Pause [PLAY] : Quick-Return : Fast-Forward Select the source. Press or button to select from USB, Network, HDMI1, HDMI2, SOURCE DisplayPort, Card OPS, DVI-D, YPbPr, AV or VGA. -
Page 16: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specified in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+" and "-" indications in the battery compartment. Burst batteries or the electrolyte from these batteries may cause stains, fire or injury. -
Page 17: Id Remote Control
ID REMOTE CONTROL You can set the remote control ID when you want to use the remote control on specific monitors. ID Mode (To enter ID Mode) : Press and hold the ID button until the red LED blinks twice. Normal Mode (To leave ID Mode) : Press and hold the Normal button until the green LED blinks twice. Programming ID Mode To assign an ID to a remote control. 1. Enter ID Mode. 2. Press and hold the ID SET button until the red LED turned on. 3. Using the number button, input the desired ID. (1 - 255) 4. Press the ENTER button to confirm ID. 5. The red LED will blink twice when ID has been confirmed. -
Page 18: Basic Operation
BASIC OPERATION Turning the monitor ON The monitor is turned On and the Power Indicator turns to Green when you press the POWER button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Orange when you press the POWER button on the monitor or the Remote Control. Press again to turn On the monitor. - Page 19 Move the cursor vertically Select adjustment by pressing the button on the monitor or the button on the remote control while the menu page is displayed on the screen. [Monitor] [Remote Control] Move the cursor horizontally Select menu or setting, or perform the adjustment by pressing the + / - button on the monitor or button on the remote control while the menu page is displayed on the screen.
- Page 20 Adjust the volume of sound Press the + / - button on the monitor or the remote control to adjust the volume of sound when the menu page is not displayed on the screen. [Monitor] [Remote Control] Switch the input signal This is activated when you successively press the INPUT button on the monitor or the SOURCE button on the remote control.
-
Page 21: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 22 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid an electric shock or a damage. NOTE Refer to the user manual of peripherals at the same time. ...
-
Page 23: Digital Video Connection
Digital video connection MONITOR1 MONITOR2 [DVI] [DVI IN] I DisplayPort MONITOR1 MONITOR2 [DP] [DP IN] O P HDMI MONITOR1 MONITOR2 [HDMI] [HDMI] [DVI IN] BEFORE YOU OPERATE THE MONITOR 19... -
Page 24: Analog Video Connection
MONITOR1 MONITOR2 O I Analog video connection MONITOR1 MONITOR2 [VGA] [DVI/VGA OUT] [VGA IN] [DVI/VGA IN] 20 BEFORE YOU OPERATE THE MONITOR... - Page 25 [ To setup the network ] 1. Switch on the router and switch on its DHCP setting. 2. Connect the router to this monitor and your computer with an Ethernet cable. 3. Press HOME button on the remote control, then select Setup. 4.
-
Page 26: Computer Setting
Change to the desired signal timing listed on page 48: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 27: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 48. You are also able to adjust the picture by following the button operation shown below. - Page 28 Direct * Available for Remote Control only. Press the ADJUST button when Menu is not displayed. Direct menu below appears. PC input and Video input (HDMI, DisplayPort, Card OPS, DVI, YPbPr, AV, VGA) Sound Style: Access predefined sound settings. Audio out: Adjust audio output volume.
-
Page 29: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Picture Picture style Personal Sound Restore style Vivid Tiling Backlight Natural General settings Colour Standard Network settings Sharpness Movie Noise reduction Photo MPEG artifact reduction Energy saving Digital Crystal Clear Advanced Game or computer Foramat and edges Adjustment Item Problem / Option Button to Press... - Page 30 Picture Picture Picture style Personal Sound Restore style Vivid Tiling Backlight Natural General settings Colour Standard Network settings Sharpness Movie Noise reduction Photo MPEG artifact reduction Energy saving Digital Crystal Clear Advanced Game or computer Foramat and edges Adjustment Item Problem / Option Button to Press Dynamic contrast is turned off.
- Page 31 Picture Picture Picture style Personal Sound Restore style Vivid Tiling Backlight Natural General settings Colour Standard Network settings Sharpness Movie Noise reduction Photo MPEG artifact reduction Energy saving Digital Crystal Clear Advanced Game or computer Foramat and edges Adjustment Item Problem / Option Game or computer is turned off.
- Page 32 Sound Picture Sound style Personal Sound Restore style Original Tiling Bass Movie General settings Treble Music Network settings Balance Game Surround mode News Audio out Advanced Adjustment Item Problem / Option Button to Press Personal Recalls customized settings. Original Set the original sound quality. Sound quality suitable for the movie.
- Page 33 Tiling * Picture Enable Sound H monitors Tiling V monitors Position General settings Network settings Frame comp. Adjustment Item Problem / Option Button to Press Enable is turned off. Enable The monitor will apply the settings in "H monitors", "V monitors", "Position" and "Frame comp.". H monitors Sets the number of monitors used in the horizontal position.
-
Page 34: General Settings
General settings Menu Language English Picture Monitor ID Deutsch Sound Auto Search Tiling Clock Français General settings Scheduling Italiano Network settings Sleep timer Español EasyLink Р Auto Adjust Polski Local KB lock Türkçe RC lock Português Pixel shift Adjustment Item Problem / Option Türkçe Turkish... - Page 35 General settings Menu Language Start Picture Monitor ID Cancel Sound Auto Search Tiling Clock General settings Scheduling Network settings Sleep timer EasyLink Auto Adjust Local KB lock RC lock Pixel shift Adjustment Item Problem / Option Adjust H. / V. Position, Clock and Phase Start automatically.
- Page 36 Switch on delay powering-on for each monitor by their ID number when multiple monitors are connected. 0 - 60 seconds iiyama Logo does not display when the monitor is turned on. Logo iiyama Logo displayed when the monitor is turned on.
- Page 37 <Auto Wake Up Function within ECO mode setting> Press successively following buttons on the remote control when the Menu is not displayed. HOME Eco mode is then displayed under "General settings". Menu Language Normal Picture Monitor ID Low power standby Sound Eco mode Tiling...
-
Page 38: Network Settings
Network Settings Picture View network settings Sound Network Configuration Tiling Static IP Configuration General settings Digital Media Render... Network name Network settings Adjustment Item Problem / Option View network settings View connected network status. Select how this display should assign addresses to the network Network Configuration resources. -
Page 39: Play Multimedia Files
[Play Multimedia Files] You can play videos, photos, and music on your monitor from: · Your computer connected through your network. · A USB device connected to this monitor. Play files from computer via local Area Network To play files from computer via local Area Network, you will need: · A wired network, connected with a Universal Plug and Play (uPnP) router. ·... - Page 40 Play files 1. Press SOURCE button. 2. Select [Network], then press OK button. 3. Select a file from the content browser, then press OK button to start playing. 4. Press the Play buttons on the remote control to control playing. * • Select the top bar to filter our files by type. • Select [Sort] to arrange the files by album name, artist, or other fields. • To clear the list of offline media servers, press OPTIONS button. Then, select [Clear offline servers] and press OK button. Play multimedia files from USB device This monitor can play music, movie, or photo files from your USB device.
-
Page 41: Play Options
[Play options] Playing music files 1. Select Music in the top bar. 2. Select one music track, then press OK button. Album 1. Music 05:05 Info Play All Sort USB device Options 3. Press the BACK button to display the play menu. •... -
Page 42: Playing Movie Files
Playing movie files 1. Select Movie in the top bar. 2. Select a video, then press OK button. Track Info Play All USB device Options • Play All : To play all the videos in a folder. • USB device : Movie list of the USB device will be displayed. •... -
Page 43: Playing Photo Files
Playing photo files 1. Select Photo in the top bar. 2. Select a photo thumbnail, then press OK button. Date Info Play All Sort USB device Options Start a slideshow • Play All : To play all the photo in a folder. (multiple photo) • Sort : It classifies the photo. • USB device : Photo list of the USB device will be displayed. •... -
Page 44: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 45: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 46: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 42 RECYCLING INFORMATION... -
Page 47: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite LH4282SB Size Category 42" Panel technology Size Diagonal: 41.9" (106.5cm) Pixel pitch 0.4833mm H × 0.4833mm V Brightness 700cd/m (Typical) Panel Contrast ratio 1300 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Typical, Gray to Gray) Display Colors Approx.1.07B Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz... -
Page 48: Specifications : Prolite Lh4982Sb
SPECIFICATIONS : ProLite LH4982SB Size Category 49" Panel technology Size Diagonal: 48.5" (123.2cm) Pixel pitch 0.55926mm H × 0.55926mm V Brightness 700cd/m (Typical) Panel Contrast ratio 1300 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Typical, Gray to Gray) Display Colors Approx.1.07B Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Maximum Resolution 1920 ×... -
Page 49: Specifications : Prolite Lh5582Sb
SPECIFICATIONS : ProLite LH5582SB Size Category 55" Panel technology Size Diagonal: 54.6" (138.8cm) Pixel pitch 0.63mm H × 0.63mm V Brightness 700cd/m (Typical) Panel Contrast ratio 1300 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Typical, Gray to Gray) Display Colors Approx.1.07B Analog: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Sync Frequency Digital: Horizontal: 30.0-83.0kHz, Vertical: 50-76Hz Maximum Resolution 1920 ×... -
Page 50: Dimensions : Prolite Lh4282Sb
DIMENSIONS : ProLite LH4282SB 695.5mm/27.4” 947.0mm/37.3” 4xM6 SCREW HOLE 934.0mm/36.8” (VESA MOUNT) 200.0mm/7.9” DIMENSIONS : ProLite LH4982SB 696.0mm/27.4” 4xM6 SCREW HOLE 1093.0mm/43.0” (VESA MOUNT) 1080.0mm/42.5” 400.0mm/15.7” 46 APPENDIX... -
Page 51: Dimensions : Prolite Lh5582Sb
DIMENSIONS : ProLite LH5582SB 696.0mm/27.4” 4xM6 SCREW HOLE 1228.5mm/48.4” (VESA MOUNT) 1215.5mm/47.9” 400.0mm/15.7” APPENDIX 47... -
Page 52: Compliant Timing
COMPLIANT TIMING Timing 31.469 59.940 25.175 VGA 640x480 37.861 72.809 31.500 37.500 75.000 31.500 37.879 60.317 40.000 SVGA 800x600 46.875 75.000 49.500 48.363 60.004 65.000 XGA 1024x768 60.023 75.029 78.750 VESA WXGA 1280x768 47.776 59.870 79.500 WXGA 1280x800 49.702 59.810 83.500 SXGA 1280x960 60.000...
