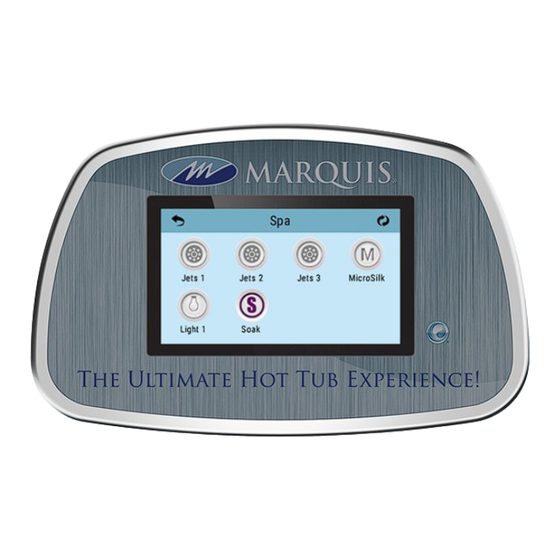

spaTouch2™ Icon Driven Control Panel
User Interface and Programming Reference Manual
THE MAIN SCREEN
Spa Status
•
Important information about spa operation can be seen on the Main Screen.
•
Most features, including Set Temperature adjustment, may be accessed from this screen.
•
The water temperature is displayed and the Set Temperature may be adjusted.
•
Time-of-Day, Ozone and Filter status are available, along with other messages and alerts.
•
The selected Temperature Range is indicated in the upper left corner.
•
The Spa Equipment Control Icon will spin when a pump is in operation.
Note: After 30 minutes* the display will automatically go into sleep mode, which turns the
display off. This is normal operation. Touch anywhere on the screen to "wake" the panel up.
*The actual number of minutes can be customized.
16

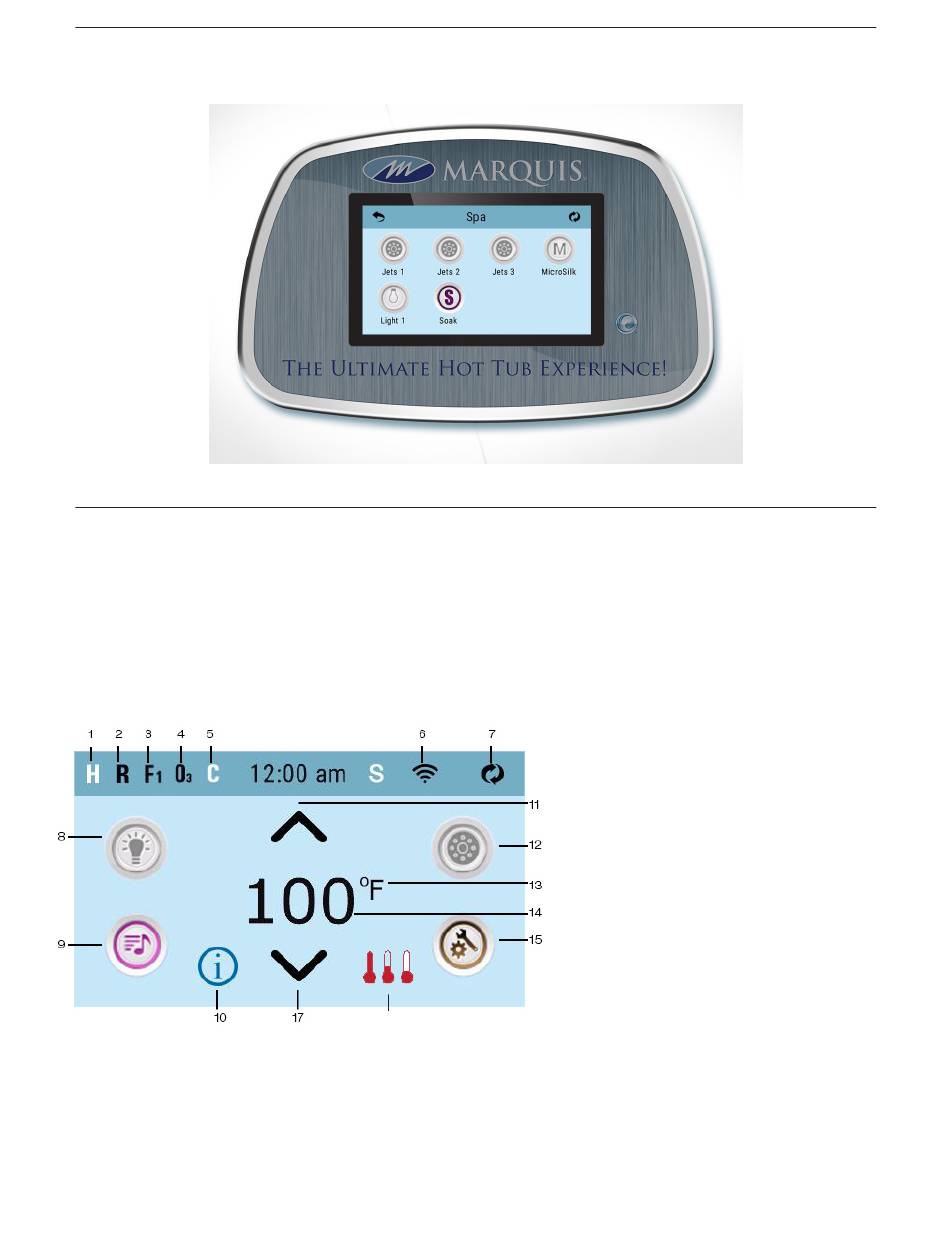

ICON Specifications
1.
H = High Temperature Range
2. R = Ready Mode
3. F1 = Filter Cycle 1 Running
4. O3 = Ozone Running
5. C = Cleanup Cycle
6. Wi-Fi Signal Indicator
7. Flip Screen
8. Light Icon = Turns On/Off
9. Music Icon = Press To Enter
Music Screen
10. Message Waiting Indicator
11. Set Temperature Up
12. Spa Equipment Control Icon
13. Temperature Scale (F/C)
14. Current Water Temperature
15. Settings Icon
16. Heat Indicator
17. Decrease Set Temperature
1
Advertisement
Summary of Contents for Marquis spaTouch2
- Page 1 Icon Driven Control Panel User Interface and Programming Reference Manual THE MAIN SCREEN Spa Status • Important information about spa operation can be seen on the Main Screen. • Most features, including Set Temperature adjustment, may be accessed from this screen.
- Page 2 THE MAIN SCREEN – Continued ICON Specifications 1. H = High Temperature Range. 2. R = Ready Mode. = Rest Mode. 3. F1 = Filter Cycle 1 is running. = Filter Cycle 2 is running. = Filter Cycles 1 and 2 are both running.
- Page 3 THE MAIN SCREEN – Continued Navigation Navigating the entire menu structure is done by touching the screen. The three screen selections indicated below can be selected. Pumps, settings and music*: Touch one of these to enter a different screen with additional controls. Most menu screens time out and revert to the main screen after 30 seconds of no activity.
- Page 4 THE SPA SCREEN All Equipment Access The Spa Screen shows all available equipment* to control. The display shows icons that are related to the equipment installed on a particular spa model, so this screen may change depending on the installation. The icon buttons are used to select and control individual devices.
- Page 5 COMMON BUTTONS Values Increment/Decrement If an Up or Down button is shown and pressed when on an editing page, and a value has been selected (highlighted), the value can be incremented by pressing the up arrow or decremented by pressing the down arrow. Back Flip Screen Increment...
- Page 6 COMMON BUTTONS – Continued Page Right/Left If there is a right arrow at the bottom of the screen, it takes you to the next page. If there is a left arrow at the bottom of the screen, it takes you to the previous page. Page Up/Down If an Up or Down button is shown and pressed when on a page with a text list, the list can be scrolled a page at a time.
- Page 7 THE SETTINGS SCREEN Heat Mode – Ready vs. Rest In order for the spa to heat, a pump needs to circulate water through the heater. The pump that performs this function is known as the “heater pump.” The heater pump is a 2-Speed Pump 1, Ready Mode and will circulate water every 1/2 hour, using Pump 1 in Low, to maintain a constant water temperature, heat as need- ed, and refresh the temperature display.
- Page 8 FILL IT UP! Preparation and Filling Fill the spa to its correct operating level, 2/3 up the skimmer. Be sure to open all valves and jets in the plumbing system before filling to allow as much air as possible to escape from the plumbing and the control system during the filling process.
- Page 9 SPA BEHAVIOR Pumps On the Spa Screen, select a “Jets” button once to turn the pump on or off, and to shift between low- and high-speeds if equipped. If left running, the pump will turn off after a time- out period of 15 minutes on high speed then transition to 5 minutes on low before turning off. You may manually turn the pump back on.
- Page 10 TIME-OF-DAY Be sure to set the Time-of-Day • Setting the Time-of-Day is important for determining filtration times and other background features. • Settings Screen takes you to a screen where you control the Time-of-Day. • On the Time-of-Day screen, simply select the Hours and Minutes.
- Page 11 ADDITIONAL SETTINGS Purge Cycles In order to maintain sanitary conditions, as well as protect against freezing, secondary water devices will purge water from their respective plumbing by running briefly at the beginning of each filter cycle. (Some systems will run a certain number of purge cycles per day, indepen- dent of the number of filter cycles per day.
- Page 12 THE UTILITIES SCREEN Utilities The Utilities Icon on the Settings Screen takes you to the Utilities Screen. The Utilities Screen contains the following: Panel Touching the Panel Icon on the Utilities Screen takes you to the Panel Screen, where you can set how long it takes the panel to go to sleep after the last activity.
- Page 13 REMINDERS – Continued Cleanup Cycle Cleanup Cycle Duration is not always enabled, so it may not appear. When it is available, set the length of time Pump 1 will run after each use. 0-4 hours are available. Settings it to 0.0 Hr keeps the Cleanup Cycles from running.
- Page 14 UTILITIES – GFCI TEST FEATURE The Ground Fault Circuit Interrupter (GFCI) or Residual Current Detector (RCD) is an important safety device and is required equipment on a hot tub installation. (The GFCI Test Feature is not available on CE rated systems.) Used for verifying a proper installation Your spa may be equipped with a GFCI Protection feature.
- Page 15 GENERAL MESSAGES Most messages and alerts will appear at the bottom of the normally used screens. Several alerts and messages may be displayed in a sequence. – – – –°F – – – –°C Water Temperature is Unknown After the pump has been running for 1 minute, the temperature will be displayed. Possible freezing condition •...
- Page 16 HEATER-RELATED MESSAGES The water flow is low – M016** There may not be enough water flow through the heater to carry the heat away from the heating element. Heater start up will begin again after about 1 min. See “Flow Related Checks” below.
- Page 17 SENSOR-RELATED MESSAGES Sensors are out of sync – M015** The temperature sensors MAY be out of sync by 2°F. Call for Service if this message does not disappear within a few minutes. Sensors are out of sync – Call for service* – M026** The temperature sensors ARE out of sync.
- Page 18 Warning! Qualified Technician Required for Service and Installation Basic Installation and Configuration CSA Compliance/Conformité Guidelines Caution: • Use minimum 6AWG copper conductors only. • Test the ground fault circuit interrupter before • Torque field connections between 21 and 23 in each use of the spa.
- Page 19 INDEX Auxiliary Panel(s)......11 Information Message....2 RCD ..........14 Invert ..........2 Ready-in-Rest Mode ....7 Ready Mode ......1, 2, 7, 9 Reminder Message....2, 12 Celsius ......... 2, 12 Rest Mode......2, 7, 11 Circulation........7 Jet ........2, 4, 7, 8, 9, 16 Cleanup Cycle.......1, 2, 9, 13 Current Water Temperature..
