Summary of Contents for Philips MC-320/19

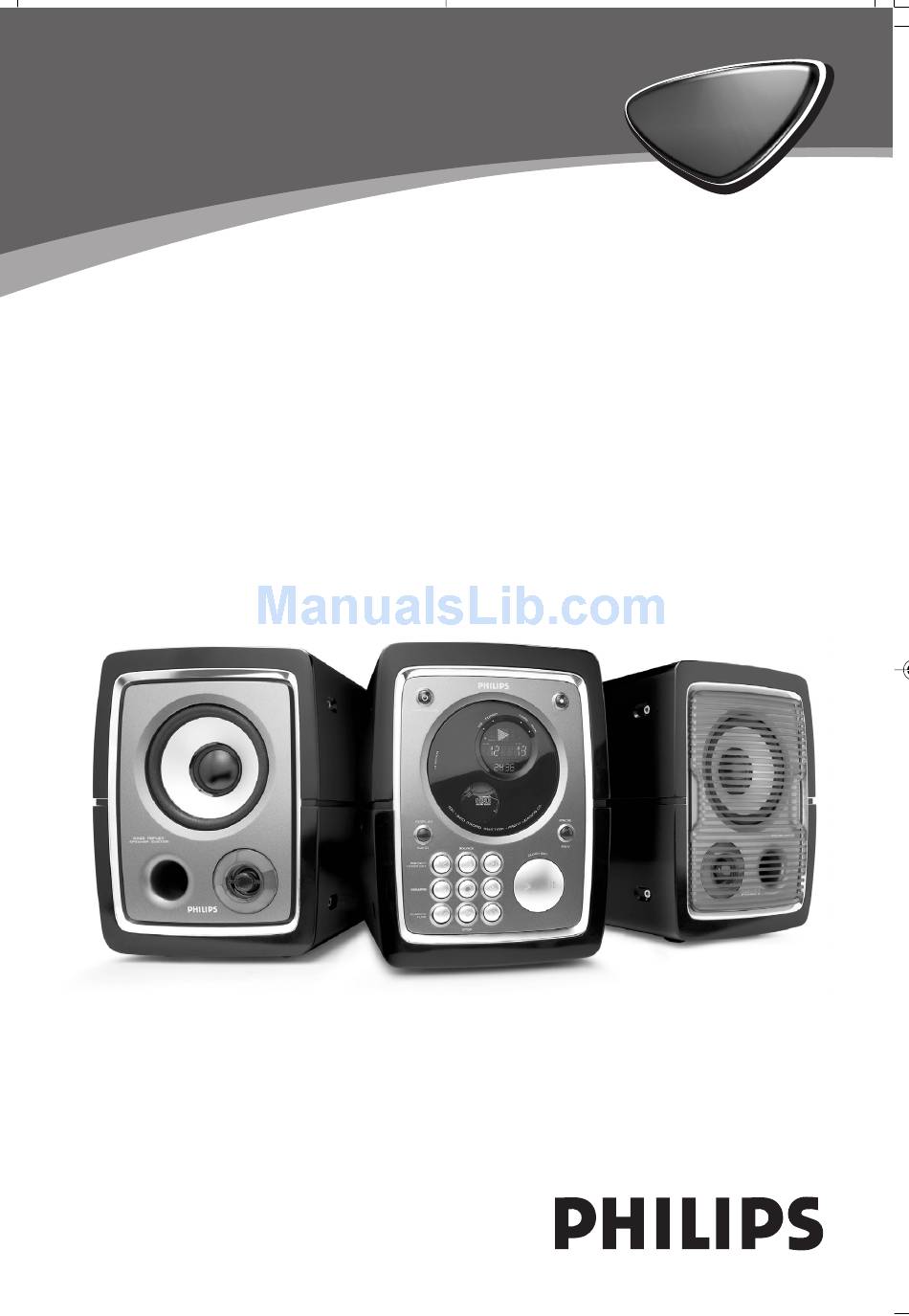

- Page 1 Micro Hi-Fi System...
- Page 2 LEA CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU APARATO. AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 3 &...
- Page 5 Index English ------------------------------------------------ 6 Français -------------------------------------------- 22 Español --------------------------------------------- 38 -------------------------------------------------------- 54...
-
Page 6: Table Of Contents
Contents General Information Environmental information ... 7 Supplied accessories ... 7 Safety information ... 7 Preparations Rear connections ... 8 – 9 Optional connection ... 9 Before using the remote control ... 9 Replacing battery (lithium CR2025) into the remote control ... 9 Controls Controls on the system and remote control ... -
Page 7: General Information
Environmental Information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. -
Page 8: Preparations
Preparations FM wire antenna speaker (right) AC power cord Rear connections The type plate is located at the rear of the system. Power Before connecting the AC power cord to the wall outlet, ensure that the following are done; – If your system is equipped with a Voltage Selector, set the VOLTAGE SELECTOR to the local power line voltage. -
Page 9: Optional Connection
FM Antenna G For better FM stereo reception, connect an outdoor FM antenna to the FM AERIAL (FM ANTENNA) terminal. Speakers Connection Front Speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", colored (marked) wire to "+"... -
Page 10: Controls On The System And Remote Control
Controls (illustrations on page 3) Controls on the system and remote control Display – shows the status of the system. PROG/ REV for CD ... programmes tracks and reviews the programme. for TUNER ... programmes tuner stations manually or automatically. for TAPE ... -
Page 11: Basic Functions
IMPORTANT! Before you operate the system, complete the preparation procedures. Switching the system on G Press 2 STANDBY ON. ➜ The system will switch to the last selected source. G Press CD, TUNER, TAPE or AUX on the remote control. ➜... -
Page 12: Cd Operation
CD Operation IMPORTANT! The lens of the CD player should never be touched. Playing a disc G CD-ROM, CD-I, CDV, VCD, MP3, DVD or computer CDs, however, are not possible. Select CD source. Press CD OPEN on the top of the system to open the CD compartment. ➜... -
Page 13: Selecting A Different Track
Selecting a different track G Press once or repeatedly until the desired track number appears in the display. G If you have selected a track number shortly after loading a disc or in the PAUSE position, you will need to press to start playback. -
Page 14: Radio Reception
Radio Reception Tuning to radio stations Select TUNER source. ➜ TUNER is displayed briefly. Press BAND (or DISPLAY on remote control) once or more to select your waveband (FM/ MW). Press down TUNE button. ➜ The radio automatically tunes to a station with sufficient reception. -
Page 15: Tuning To Preset Radio Stations
Tuning to preset radio stations G Press PRESET until the desired preset station is displayed. Changing tuning grid only) In North and South America the frequency step between adjacent channels in the AM and FM band are 10 KHz and 100 KHz respectively. In the rest of the world this step is 9 KHz and 50 KHz. -
Page 16: Tape Operation / Recording
Tape Operation / Recording Tape playback Select TAPE source. Press to open the tape door on the top of the system. Insert a recorded tape and close the tape door. G Load the tape with the open side downward and the full spool to the right. ➜... -
Page 17: Synchro Start Cd Recording
Synchro start CD recording Select CD source. Insert a disc and if desired, program track numbers. Press to open the tape door. Insert a suitable tape into the deck and close the tape door. Press REC to start recording. ➜ REC is shown during recording. ➜... -
Page 18: Clock/Timer
Clock/Timer Setting the clock In standby, press and hold CLOCK SET / ➜ The clock digits for the hours flash. Press VOLUME –/+ to set the hours. Press CLOCK SET / again. ➜ The clock digits for the minutes flash. Press VOLUME –/+ to set the minutes. -
Page 19: Specifications
Cleaning the disc lens G After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. -
Page 20: Troubleshooting
Troubleshooting WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service center. - Page 21 The remote control does not function properly. The timer is not working. The Clock/Timer setting is erased. Troubleshooting – Select the source (CD or TUNER, for example) before pressing the function button ( – Reduce the distance between the remote control and the system.
- Page 22 This Manufacturers Warranty is limited to 3 months for above listed Consumer Electronics products if used in commercial applications. Philips may, at its discretion choose to replace rather than repair any product covered by this warranty. This Manufacturers Warranty is neither transferable nor valid in countries other than Australia.
- Page 23 12 months prior to the date of your claim. In the event of a failure, Philips shall be under no liability for any injury, or any loss or damage caused to property or products other than the product under guarantee.
- Page 24 PHILIPS MEXICANA S.A. de C.V. a través de sus centros de servicio autorizados reparará y devolverá a usted su aparato en un plazo no mayor a 20 días hábiles, contados a partir de la fecha de ingreso, impresa en la orden de servicio de cualquiera de nuestros centros de servicio autorizados.
- Page 25 Philips Mexicana, S.A. de C.V. Producto importado por: Philips Mexicana, S.A. de C.V. Av. La Palma No. 6 Col. San Fernando La Herradura Huixquilucan, Edo. de México C. P. 52784 Tel. 52 69 90 00 Información General Centro de Información al Consumidor...
- Page 26 Meet Philips at the Internet http://www.philips.com MC-320 CLASS 1 LASER PRODUCT hk-0309 MC-320/21-2...
