Weber SMOKEFIRE EX4 Owner's Manual

Wood pellet grill
Hide thumbs Also See for SMOKEFIRE EX4:
Table of Contents

Advertisement

Quick Links

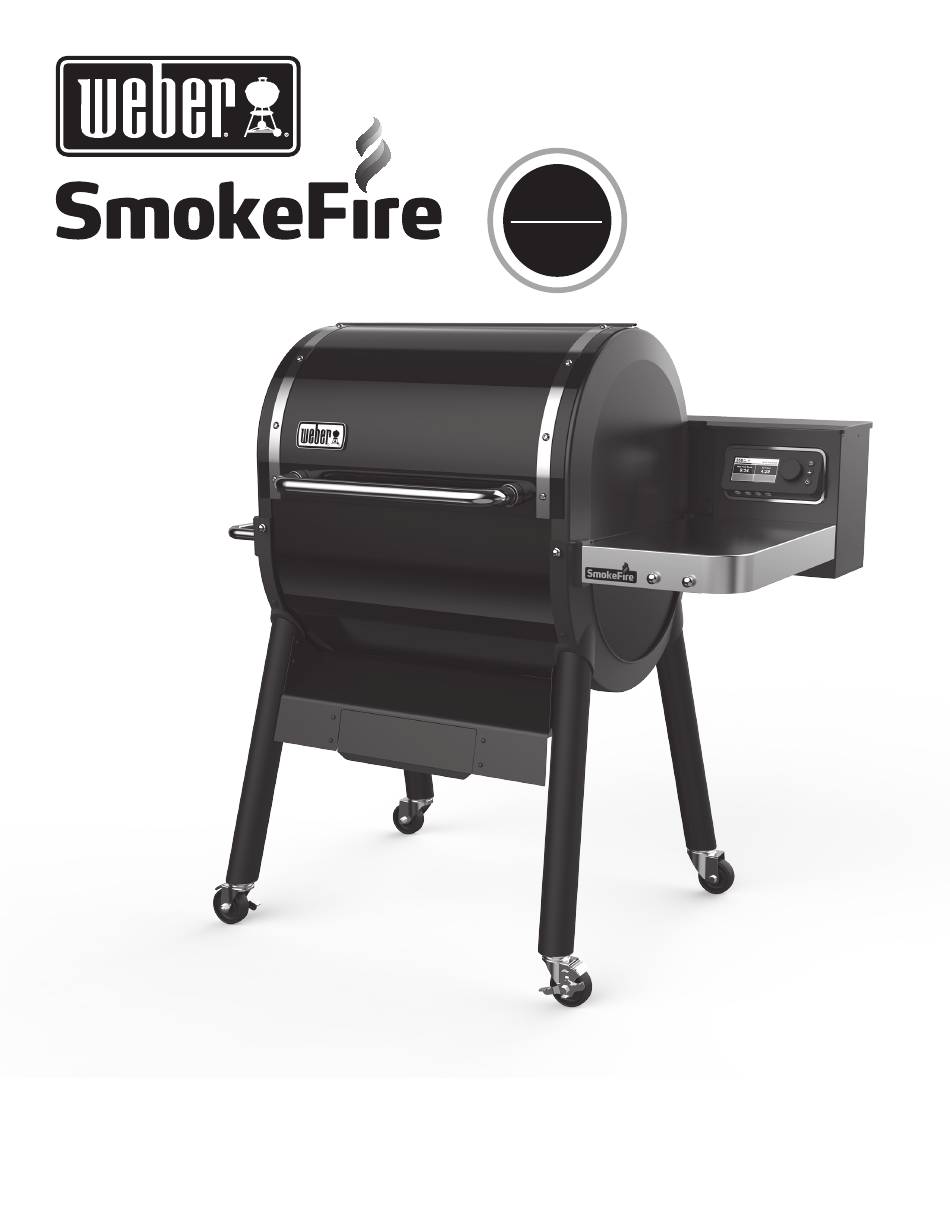

Wood Pellet Grill
OWNER'S MANUAL
A MAJOR CAUSE OF FIRES IS FAILURE TO
MAINTAIN REQUIRED CLEARANCES (AIR SPACES)
TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST
IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY
IN ACCORDANCE WITH THESE INSTRUCTIONS.
EX4
EX6
51779
US
01/14/20

Advertisement

Table of Contents
loading

Related Manuals for Weber SMOKEFIRE EX4

Summary of Contents for Weber SMOKEFIRE EX4

  • Page 1 Wood Pellet Grill OWNER’S MANUAL A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF UTMOST 51779 IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS. 01/14/20...

  • Page 2: Safety

    WARNING! Never operate this grill without the often detected too late. ash and grease system in place. Always use a Visit weber.com, select your country of origin, and register your grill today. drip pan to collect grease within the drawer.

  • Page 3: Table Of Contents

    32 Maintenance the auger feeding system. m WARNING! If using the WEBER CONNECT app 33 Grillmaster Tips to monitor the operation of the grill, make sure that all safety precautions otherwise applicable...

  • Page 4: Warranty

    Owner’s Manual, unless the Owner can prove that the defect or failure is independent WEBER is proud to have you with us as you explore all of your future grilling experiences. We of non-compliance with the above mentioned pride ourselves on two things; making grills that last and providing quality customer service obligations.

  • Page 5: Cooking System

    APART FROM THE WARRANTY AND DISCLAIMERS Built to outlast the competition, SMOKEFIRE’s shine goes far beyond looks. The AS DESCRIBED IN THIS WARRANTY STATEMENT, exclusive WEBER Porcelain-Enameled finish withstands the elements and helps THERE ARE EXPLICITLY NO FURTHER WARRANTY prevent rusting and cracking over time.

  • Page 6: Special Features

    B Integrated Wi-Fi and Bluetooth® Using your smartphone, login to the WEBER CONNECT app (B) to get the latest software and connect to your grill. The WEBER CONNECT app tells you when it’s time to flip, rest, and serve directly from your smartphone. The remote grilling access feature gives you the freedom to walk away, monitor, and even adjust the heat from the palm of your hand.

  • Page 7: Weber Connect Controller

    Push the dial to select and start your timer. F Food Temperature Probes Your new WEBER SMOKEFIRE grill can handle up to four separate food temperature probes (one probe included) to gain superior control over your grill for perfect results every time.

  • Page 8: Before Igniting

    Preparing Grill For First Time Startup Before the first startup of your WEBER SMOKEFIRE grill, there are some necessary steps to be followed: 1. Remove all packaging materials from the grill.

  • Page 9: Meal To Meal Maintenance Every Time

    OPERATING THE GRILL, OR IF STILL HOT AFTER SHUTDOWN. Frequently replace the disposable drip pan before igniting the grill to reduce the risk of a grease fire. 2. Make sure the hopper is filled with your choice of WEBER SMOKEFIRE ALL NATURAL HARDWOOD PELLETS (B).

  • Page 10: Weber Connect App

    WEBER CONNECT App First things first. Download the WEBER CONNECT app. To fully activate and update your new WEBER CONNECT controller, it is important to first download the WEBER CONNECT app. Download, connect and register to receive: • Flip and Serve Notifications •...

  • Page 11: Grill Operation

    BEFORE IGNITING, you can now initiate the startup procedure to preheat your SMOKEFIRE grill for the first time. NOTE: If this is the very first time starting your SMOKEFIRE grill, WEBER recommends that you season your grill on the high temperature setting (600°F) for at least 30 to 40 minutes with the grill lid closed.

  • Page 12: Cooking With Temperature Probes

    On the controller display, and when connected to the WEBER CONNECT app, you will receive a notification when your food has reached the set temperature(s).

  • Page 13: Shutting Down Your Grill

    GRILL OPERATION Shutting Down Your Grill When your cook has ended, your WEBER SMOKEFIRE must be properly powered down to clear the auger and burn pot of any remaining pellets and ashes. This helps your grill be ready to go the next time you want to start it up.

  • Page 14: Changing Pellets/Purging Hopper

    Explore Your Settings There are many more features to be explored on the controller and the WEBER CONNECT app. From programmable timers to cook programs, there are more reasons to love your WEBER SMOKEFIRE grill. Explore and experiment with all...

  • Page 15: Controller Settings

    CONTROLLER SETTINGS NOTE: Download the WEBER CONNECT app to get the latest grill software and controller features. Dashboard The dashboard shows all of the current grill info on the controller display. Here you will find your current and target grill temperature, device connectivity status, and separate tiles that can be setup to display guided cook programs, timers and food temperature probe information.

  • Page 16: Cook Programs

    CONTROLLER SETTINGS Cook Programs If selecting a guided cook program, push the button. Turn and press the dial to select the type of food that you will be cooking. Recently used cook programs will be saved within your controller for quick access to frequently cooked foods.

  • Page 17: Troubleshooting

    TROUBLESHOOTING NOTE: Download the WEBER CONNECT app to get the latest grill software and controller features. The controller uses advanced technology capable of troubleshooting your SMOKEFIRE grill. If a problem is detected with your grill, your controller will display and send an error code to notify you of the error before automatically beginning the necessary procedure.
  • Page 18 TROUBLESHOOTING Error Code Cause Solution 1. The grill will automatically run the shutdown procedure if the grill is still hot. Open the grill lid and wait until the grill has completed the shutdown procedure and completely cooled. CAUTION: Do not unplug the grill or power it off during the shutdown procedure. Communication Failure 2.
  • Page 19 REPLACEMENT CUSTOMER PARTS SERVICE To obtain replacement parts, contact the local retailer If you are still experiencing any in your area or log onto problems, contact the Customer Service Representative in your area using weber.com. the contact information on weber.com. weber.com...
  • Page 20 TROUBLESHOOTING E1 Auger Jam Clearing an Auger Jam To clear the E1 error code from the controller, please follow these steps: 1. When the grill has completed the shutdown procedure and completely cooled, power off the grill and unplug from power source. 2.
  • Page 21 The auger should not pull away from the motor. If the shear pin is broken, it should be replaced before reassembling. Contact a WEBER Customer Service Representative in your area using the contact information on our website for a replacement.
  • Page 22 NOTE: Use care to avoid tearing the auger tube gasket when reinstalling the auger/motor assembly. If damaged, replacement gaskets can be ordered by contacting a WEBER Customer Service representative in your area using the contact information on our website. 14. Connect the motor’s electrical connection. Make sure the connector is securely joined to the motor (N).
  • Page 23 TROUBLESHOOTING 16. Push the hopper slide door closed (P). 17. Open the hopper lid and fill the hopper with your choice of WEBER SMOKEFIRE ALL NATURAL HARDWOOD PELLETS (Q). 18. Open the grill lid and install the pellet slide using a Phillips screwdriver (R).
  • Page 24 TROUBLESHOOTING E2 Fan Error Checking Fan Electrical Connection To clear the E2 error code from the controller, please follow these steps: 1. When the grill has completed the shutdown procedure and completely cooled, power off the grill and unplug from power source (A).
  • Page 25 5. Plug in, power on the grill, and begin a cook to allow the controller to run diagnostics. 6. If the E7 error code still remains on the controller, contact the Customer Service Representative in your area using the contact information on our website for motor replacement. weber.com...
  • Page 26 (C). 4. Push the hopper slide door closed (D), and refill the hopper with your choice of WEBER SMOKEFIRE ALL NATURAL HARDWOOD PELLETS. 5. Power on the grill and begin a cook to allow the controller to run diagnostics.
  • Page 27 TROUBLESHOOTING NOTE: Download the WEBER CONNECT app to get the latest grill software and controller features. The controller will display and send notifications to inform you of certain grill operations and preventative maintenance cautions. Refer to this troubleshooting section and follow the “Sequence / Actions”...
  • Page 28 TROUBLESHOOTING Replacing the Glow Plug Contact WEBER Customer Service at weber.com for a replacement glow plug. To replace the glow plug, please follow these steps: 1. Open the grill lid and shutdown the grill by pushing and holding the dial or using the main menu. Wait until the grill has completed the shutdown procedure and completely cooled.
  • Page 29 TROUBLESHOOTING weber.com...
  • Page 30 CALL REPLACEMENT CUSTOMER PARTS SERVICE To obtain replacement parts, If you are still experiencing any contact the local retailer problems, contact the Customer Service in your area or log onto weber.com. Representative in your area using the contact information on weber.com.
  • Page 31 4. Install a new fuse into the fuse holder and reinstall the fuse holder into the power module (D). CAUTION: Make sure the fuse holder is fully installed and closed before operating your grill. 5. Plug in, power on the grill, and begin a cook to allow the controller to run diagnostics. weber.com...

  • Page 32: Maintenance

    3. Unplug the glow plug electrical connection, remove the glow plug assembly, and set it aside. In order to keep your WEBER SMOKEFIRE grill running smoothly 4. Open the grill lid and remove the cooking grates, FLAVORIZER for years of grilling and smoking, WEBER recommends a thorough bars, and heat baffle from the cookbox.

  • Page 33: Grillmaster Tips

    Wear Gloves Your included temperature probes should be cleaned after every use to Always wear heat-resistant barbecue mitts or gloves when using your WEBER ensure safe cooking practices. However, the temperature probes should SMOKEFIRE grill. Vents, handles, ash and grease system, and cookbox will never be submerged in any type of liquid because it could damage them.

  • Page 34: Replacement Parts

    Use only genuine WEBER replacement REPLACEMENT PARTS parts for any repair or replacement. Visit weber.com SmokeFire - EX4 - US 112519...
  • Page 35 Use only genuine WEBER replacement REPLACEMENT PARTS parts for any repair or replacement. Visit weber.com SmokeFire - EX6 - US 120119 weber.com...
  • Page 36 Google Play logo are trademarks of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Weber-Stephen Products LLC is under license. Other trademarks and trade names are those of their respective owners.

This manual is also suitable for:

Smokefire ex6
