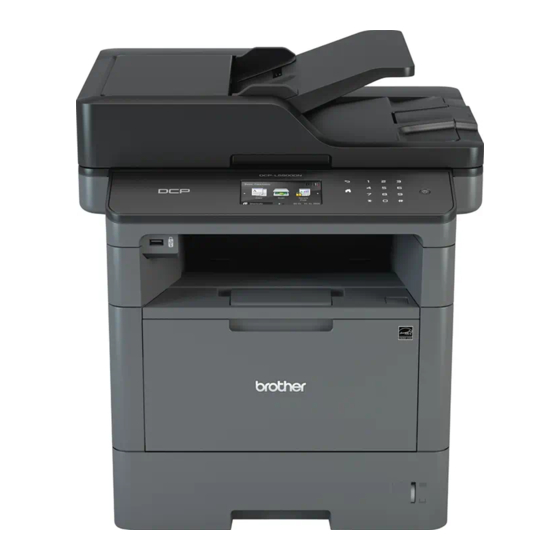

Brother DCP-L5500DN Quick Setup Manual

DCP‑L5500DN / DCP‑L5600DN / DCP‑L5650DN /
MFC‑L5700DW / MFC‑L5800DW / MFC‑L5850DW /
MFC‑L5900DW / MFC‑L6700DW / MFC‑L6800DW
Quick Setup Guide
Unpack the machine and check the components
Watch our Video FAQs for
help with setting up your
Brother machine:
solutions.brother.com/videos.
1
Remove the packing materials and install the drum unit and toner cartridge assembly
2

Load paper in the paper tray

Connect the power cord and turn on the
3
machine
Back
Select your language
5
(if needed)
1.
On the machine's Touchscreen, press
[Settings] > [All Settings] >
[Initial Setup] >
[Local Language].
2.
Press your language.
3.
Press .
Drum Unit and Toner
AC Power Cord
Cartridge Assembly
(pre-installed)
Quick Setup Guide Product Safety Guide
Installation CD‑ROM
Discard the
silica gel pack.
Adjust the paper
Front
6 Configure the machine for faxing (for MFC models only)
If you do not plan to use the fax feature on this machine, go to step
A. Set the date and time
Press
[All Settings] >
[Initial Setup] >
[Date & Time].
Date
1.
Press [Date].
2.
Enter the last two digits for the
year using the Touchscreen,
and then press [OK].
3.
Enter the two digits for the
month using the Touchscreen,
and then press [OK].
4.
Enter the two digits for the day
using the Touchscreen, and
then press [OK].
Read the Product Safety Guide first, then read this Quick
Setup Guide for the correct installation procedure.
Not all models are available in all countries.
The latest manuals are available at the Brother Solutions
Center: solutions.brother.com/manuals.
Telephone Line Cord
(For MFC models)
Basic User's Guide
(only for certain models)
guides.
Connect the telephone line cord
4
(for MFC models only)
If you do not plan to use the fax feature on this machine, go to step
Clock Type
1.
Press [Clock Type].
[Settings] >
2.
Press [12h Clock] or
[24h Clock].
Time
1.
Press [Time].
2.
Enter the time using the
Touchscreen.
„ 12h Clock only
Press [AM/PM] to
select [AM] or [PM].
3.
Press [OK].
4.
Press
NOTE:
• Manuals in Spanish for this model are available on the Brother Solutions Center.
(USA only): solutions.brother.com/manuals
Los manuales en español de este modelo están disponibles en el Brother
Solutions Center. (Solamente en los Estados Unidos):
solutions.brother.com/manuals
• The available connection interfaces vary depending on the model.
• You must purchase the correct interface cable for the interface you want to use.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than
6 feet (2 meters) long.
Network cable
Use a straight-through Category 5 (or greater) twisted-pair cable.
• The illustrations in this Quick Setup Guide show the MFC-L6800DW.
Remove the orange part.
.
B. Set the Station ID
Press [Settings] > [All Settings] >
[Initial Setup] > [Station ID].
Fax number
1.
Press [Fax].
2.
Enter your fax number (up to 20 digits) using
the Touchscreen, and then press [OK].
Telephone number
1.
Press [Tel].
2.
Enter your telephone number (up to 20 digits)
using the Touchscreen, and then press [OK].
Name
1.
Press [Name].
.
2.
Enter your name (up to 20 characters) using
the Touchscreen, and then press [OK].
3.
Press .
D01GT2001-00
USA/CAN
Version C
.
