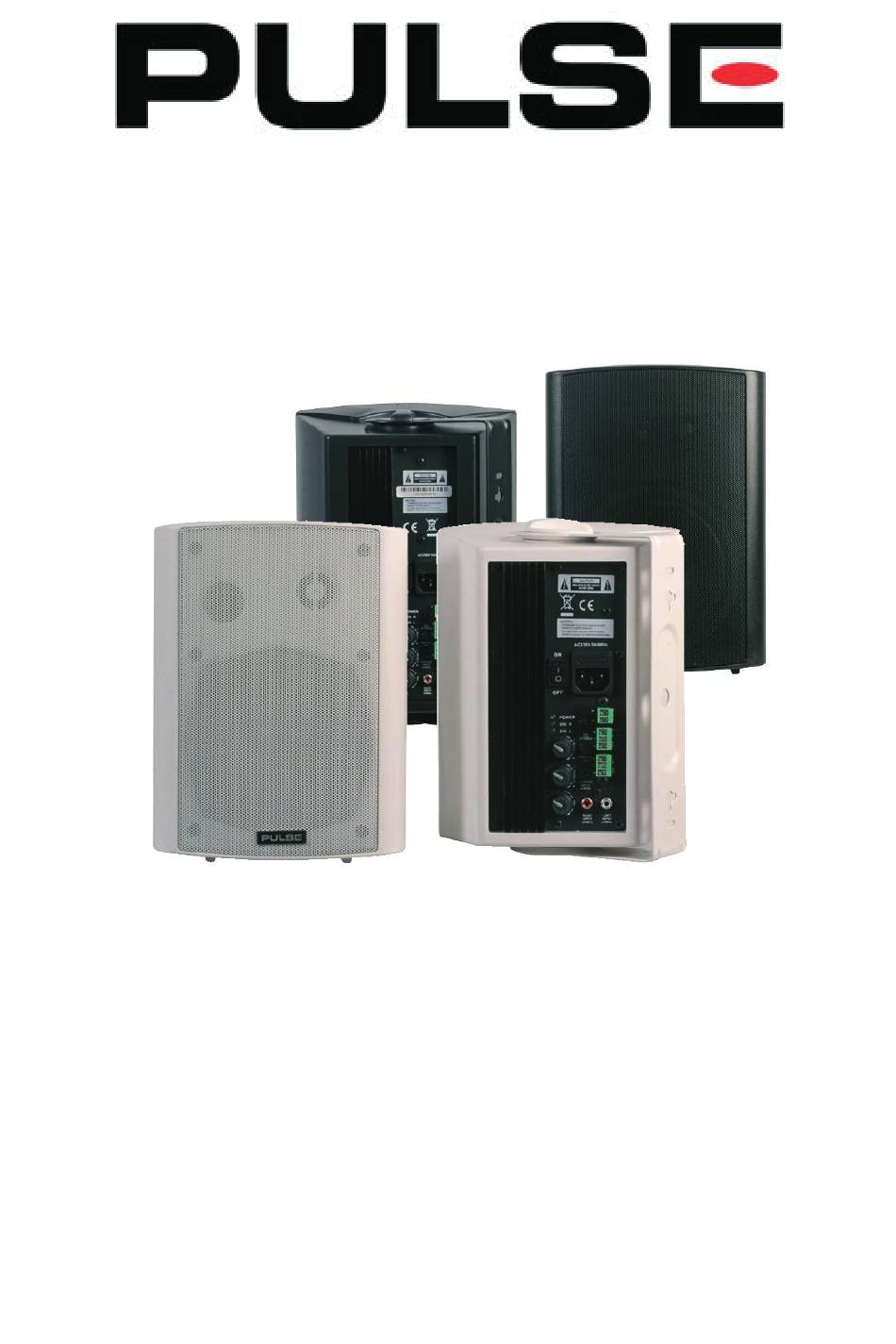

- Page 1 ACTIVE PRO SERIES WALL MOUNT SPEAKERS MODELS: LS03886 & LS03889...
-
Page 2: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply. -
Page 3: Product Overview
PRODUCT OVERVIEW Figure 1 Rear Panel INSTALLATION The speakers come complete with wall mount brackets. Care should be taken with any commercial use installation to comply with local guidelines and legislation from relevant local authorities. The fixing’s and wall should be sufficient to support a 10:1 safety factor (ie l0x the static weight of the speaker). -
Page 4: Operation
WARNING: Use only the hand wheels provided to attach the speakers to the wall mounting brackets. The use of longer bolts may contact live internal circuitry and the danger of causing electric shock and damage to the speaker. OPERATION Refer to Fig 1 Rear Panel Bass Control The bass control gives the installer the ability to cut or boost the bass (Lo) frequencies (centred at 80Hz). -
Page 5: Cleaning And Maintenance
Power Indicator This will illuminate green when the system is switched on and is connected to the mains supply. Should this light fail to illuminate this should indicate an issue with either the system or the mains supply. Signal Indicator (Right) The signal indicators illuminate and flash green to show the presence of an input signal. -
Page 6: Specification
SPECIFICATION Model ACTIVE40PRO ACTIVE50PRO 20W x 2 @ 8Ω 25W x 2@ 8Ω Power Rating (RMS) 0.5V 0.7V Input Sensitivity 80Hz-18kHz 20Hz-20kHz Frequency Response ±0.05% (80Hz-18kHz/1W) ±0.05% (20Hz-20kHz/1W) >200 @80/400Hz >200 @80/400Hz Damping Factor 30V/US 30V/US Conversion Rate >75dB >75dB Channel Separation >95dB >95dB...
