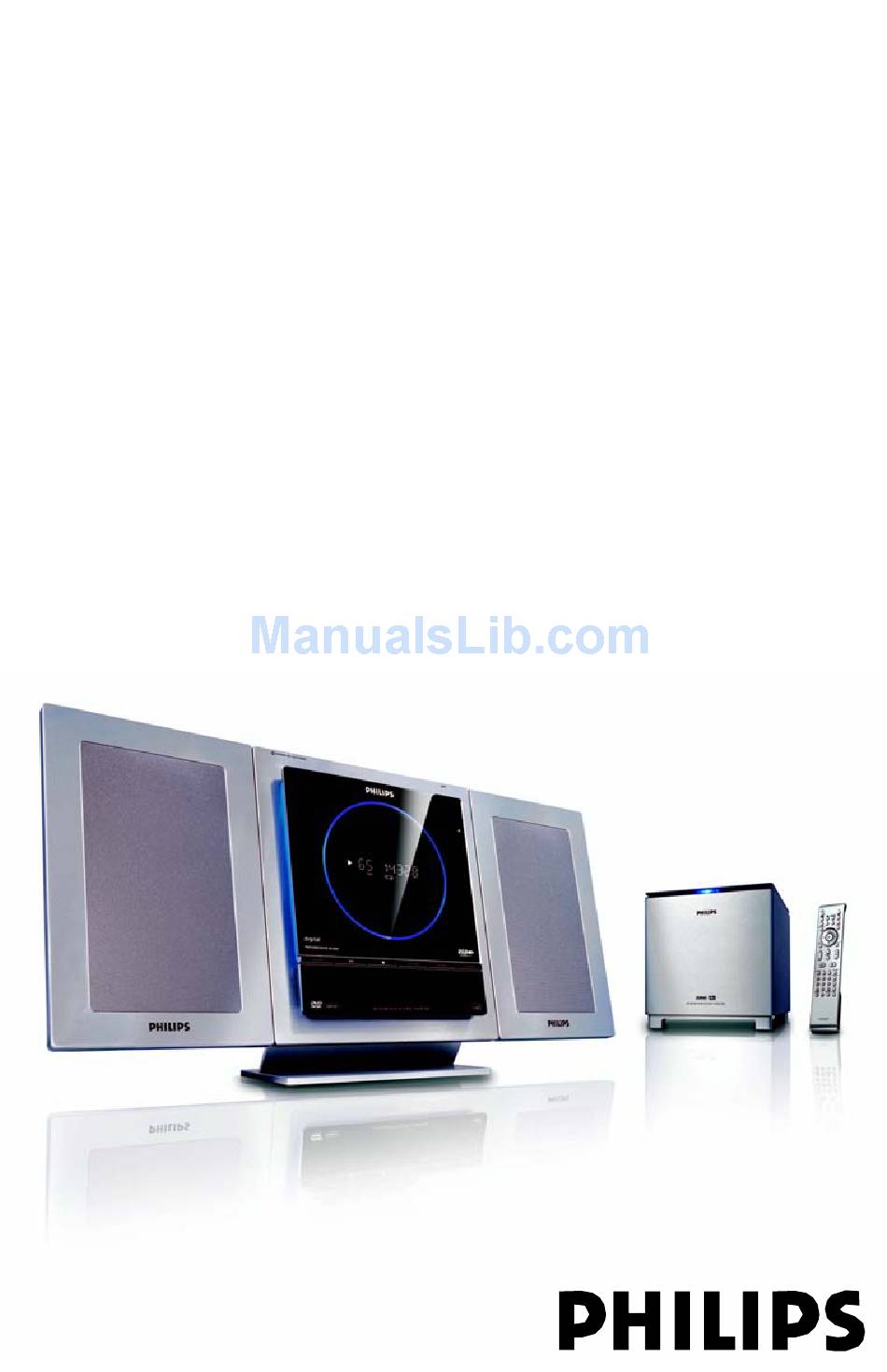

- Page 1 MCD288 DVD Micro Theatre User manual Manuel d'utilisation Manual del usuario Benutzerhandücher Gebruikershandleidingen Manuale per l'utente Användarhandböckerna Brugermanual...
- Page 2 See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio MCD510 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven...
- Page 4 ™ ∞ & ª ¡ £ º ⁄ • ≤ § ≥...
- Page 5 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
- Page 6 Language Code Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian...
- Page 7 Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
-
Page 8: Table Of Contents
Contents General Information Features ... 10 Discs for playback ... 10 Supplied accessories ... 11 Environmental information ... 11 Care and safety information ... 11 Installation Step 1: Connecting speakers ... 13 Step 2: FM antenna connection ... 13 Step 3: Connecting TV ... 14-16 Using A/V OUT jack Using the video box Step 4: Placing the set and speakers ... - Page 9 System Menu Options Basic operations ... 31 SYSTEM SETUP ... 31-33 TV SYSTEM SCREEN SAVER TV TYPE PASSWORD RATING DEFAULT DIVX(R) VOD registration code LANGUAGE SETUP ... 33 VIDEO SETUP ... 33-34 BRIGHTNESS CONTRAST SATURATION AUDIO SETUP ... 34 DIGITAL OUT DOWNMIX 3D PROCESSING LPCM...
-
Page 10: General Information
General Information Features Your DVD Micro Theatre with 2.1 channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology. Other features include: Built-in Dolby Digital decoder, supporting Incredible Surround and DSC sound setting. -
Page 11: Supplied Accessories
Supplied accessories – A/V cord (R/W/Y) – Component video cables (red/blue/green) – FM wire antenna – External video box – Power cord – 15-pin D-Sub cable (with one end fixed on the main set) – Stand – Remote Control and two AAA batteries –... -
Page 12: Installation
Installation AC power cord Speaker (right) IMPORTANT! – The type plate is located at the rear of the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. – Never make or change any connections with the power switched on. -
Page 13: Step 1: Connecting Speakers
Step 1: Connecting speakers Place the main set with the front side facing down on a flat and firm surface. Then remove the detachable cover on the back of the set to expose the terminals available for connection. Connect the two front speaker cables to the SPEAKER OUT terminals: right speaker to "R"... -
Page 14: Step 3: Connecting Tv
Installation Step 3: Connecting TV IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your TV. – Connect the DVD system directly to the TV. Using AV OUT jack S-VIDEO AUDIO TV IN VIDEO IN... - Page 15 Using Component Video jacks (Y Pb IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required. Use component video cables (red/blue/green) to connect the COMPOENT VIDEO OUTPUT (Pr/Cr Pb/Cb Y) jack to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.
-
Page 16: Step 4: Placing The Set And Speakers
Installation Step 4: Placing the set and speakers After finishing all rear connections, mount the detachable cover on the back of the set until hearing a click to avoid cable clutter. Align the side marked PRESS4 of the stand to the slots at the bottom of the set. -
Page 17: Using The Vcr For Recording Dvds
Using the VCR for recording DVDs Connect the end of the supplied AV cord with only one connector to the A/V OUT jack of the DVD system. For the other end, connect the video output connector (yellow) to the VIDEO IN jack on the VCR and the audio connectors (white/ red) to the corresponding audio input jacks on the VCR. -
Page 18: Connecting A Usb Device Or Memory Card
Installation Connecting a USB device or memory card IMPORTANT! – Before connecting the USB plug, first slide down the movable baffle as shown on Page 3 to expose the By connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system. -
Page 19: Controls
Controls on the system ECO POWER/STANDBY ON B – to switch the system on or to Eco power/normal standby mode. iR sensor – infrared sensor for remote control. PROGRAM – DVD/VCD/CD/MP3-CD/USB: enters the program menu. – Picture CD: during playback, to select a slide show mode. - Page 20 Controls 9 OK – to exit or confirm the selection. í/ë – Disc: skips to the previous/next chapter/title/ track. – Tuner: selects a preset radio station. – In DISC/USB mode, to stop playback or clear a program. – In DISC/USB mode, to start or interrupt playback.
-
Page 21: Preparations
IMPORTANT! – Make sure to complete the preparation procedures before operating the system. Step 1: Inserting batteries into the Remote Control Open the battery compartment. Insert two AAA batteries following the indications (+/-) inside the compar tment. Close the cover. Using the Remote Control to operate the Player Aim the Remote Control... -
Page 22: Step 3: Setting Video Preference
Preparations Step 3: Setting video preference IMPORTANT! – Make sure you have completed all the necessary connections. (See "Connections-Connecting TV".) Turn on the TV set and set it to the correct Video-In channel. ➜ You may go to channel 1 on your TV set, then press the channel button repeatedly until you see the Video In channel. -
Page 23: Setting Up Progressive Scan Feature
Preparations Setting up Progressive Scan feature (for Progressive Scan TV only) The progressive scan display twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality. IMPORTANT! Before enabling the progressive scan feature, you must ensure:... -
Page 24: Step 4: Setting Language Preference
Step 4: Setting language preference You can select your preferred language settings so that this DVD Micro System will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the language set by default will be used instead. -
Page 25: Basic Functions
Switching the system on/off ● Press ECO POWER/STANDBY-ON B (STANDBY B on the remote). ➜ “HELLO” is displayed briefly. The system will switch to the last selected source. ● Press DISC, TUNER or AUX on the remote. ➜ The system will switch to the selected source. To switch the system to standby mode ●... -
Page 26: Disc Operations
Video In channel. (See "Setting up the TV".) Press STANDBY-ON 2 (STANDBY 2 on the remote). ➜ You should see the blue Philips DVD background screen on the TV. Insert a disc into the slot loader. ➜ Make sure the label side is facing you. -
Page 27: Slow Motion
Zoom (DVD/VCD/JPEG) Zooming allows you to enlarge or reduce the video image during playback. Press ZOOM repeatedly to enlarge or reduce the playback video image. Press 22/33/5/4 to pan across the TV screen. Differnt play modes: SHUFFLE and REPEAT (DVD/VCD/CD/MP3/WMA) ●... -
Page 28: Forward/Reverse Searching
Disc Operations Forward/Reverse Searching (DVD/VCD/ CD/MP3/WMA) Press TUNING 22/33 (2/3 on the remote) during playback to select the required speed: X2, X4, X8 or X20 (backward or forward). ➜ Sound will be muted. To return to normal speed, press PLAY/ PAUSE 2;. -
Page 29: Playing Mp3 Disc
Playing MP3/WMA/JPEG Disc IMPORTANT! – You have to turn on your TV and set to the correct Video In channel. (See "Setting up the TV".) Playing MP3/WMA disc General operation Load an MP3/WMA disc. ➜ A data disc menu appears on the TV screen and playback starts automatically from the first track. -
Page 30: Special Jpeg Features
Disc Operations Special JPEG features Zoom picture (JPEG) ● During playback, press ZOOM repeatedly to display the picture with different scales (2, 3, 4, 1/ 2, 1/3, 1/4 and OFF). ● Use 2/3/5/4 to view the zoomed picture. Slide show playback modes (JPEG) ●... -
Page 31: System Menu Options
Basic operations Press SYSTEM MENU to enter the Setup Menu. Press 2/3 to select a page to be set. Press 5/4 to highlight an option. Enter its submenu by pressing 3 or OK. Move the cursor by pressing 5/4 to highlight the selected item. -
Page 32: Rating
System Menu Options RATING Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level. The rating levels are from 1 to 8 and are country dependent. -
Page 33: Divx(R) Vod Registration Code
DIVX(R) VOD registration code Philips provides you the DivX Demand) registration code that allows you to rent and purchase videos using the DivX service. For more information, visit us at www.divx.com/ vod. In SYSTEM SETUP page, press 3 4 to highlight DIVX(R) VOD, then press 3 or OK to enter its submenu and press OK again to confirm. -
Page 34: Brightness
System Menu Options BRIGHTNESS Adjusts the brightness level. Range: 0-12. CONTRAST Adjusts the contrast level. Range: 0-12. Adjusts the hue level. Range: -6-+6. SATURATION Adjusts the saturation level. Range: 0-12. AUDIO SETUP The options included in AUDIO SETUP page are: "DIGITAL OUT", "DOWNMIX", "3D PROCESSING", "LPCM"... -
Page 35: Radio Reception
Tuning to radio stations Press SOURCE on the set repeatedly or TUNER on the remote to select FM tuner source. Press and hold TUNING 22/33 (2/3 on the remote) and release the button. ➜ The radio automatically tunes to a station with sufficient reception. -
Page 36: Rds
Radio Reception Radio Data System is a service that allows FM stations to show additional information. If you are receiving a RDS station, station name are displayed. Scrolling through different RDS information ● Press CLOCK/RDS briefly and repeatedly to scroll through the following information (if available): –... -
Page 37: External Sources
Using a non-USB device Connect the system's AUX-IN jack to the AUDIO OUT jacks on another audio/visual device (such as a VCR, Laser Disc player or cassette desk) using a "single-to-double" cinch cable (with one end providing a 3.5" connector for connection to the AUX-IN jack while the other end providing two white/red connectors for connection to the other device's AUDIO... - Page 38 External Sources How to organize your MP3/WMA files on the USB mass storage device This Hi-Fi system will browse the MP3/WMA files in the folders/sub-folders/titles order. Example: Root Title 001 Title 002 Title 003 Album 01 Title 001 Title 002 Title 003 Album 02 Album 03...
-
Page 39: Clock/Timer
Clock setting See "Preparations-Step 2: Setting the clock". Timer setting ● The system can be used as an alarm clock, whereby the last selected source is switched on at a set time (one time operation). The clock time needs to be set first before the timer can be used. -
Page 40: Specifications
... 4 Hz - 22 kHz (48kHz) ... 4 Hz - 44 kHz (96kHz) Digital Output ..SPDIF (Sony Philips digital interface) Coaxial Number of programmable tracks ... 16 Signal-to-noise ratio ... ≥ 65 dBA Channel separation ... ≥ 40 dB (1 kHz) Total harmonic distortion ... -
Page 41: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power. - Page 42 Troubleshooting Problem The DVD player does not start playback. The DVD player does not respond when buttons are pressed. The language for the sound or subtitle cannot be changed when playing a DVD. No image is output when a function is selected.
- Page 43 Problem Recording or playback cannot be made Left and right sound outputs are reversed. The remote control does not function. The timer is not working The Clock/Timer setting is erased No sound and picture Some files on the USB device are not displayed.
-
Page 44: Glossary
Glossary Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs.
