WARNING
!
You must fully read, understand and follow these warnings and
instructions (written and video)! Failure to follow these instructions
may cause serious injury or death!!
•
WHEN HUNTING FROM A TREESTAND FALLS CAUSING INJURY
OR DEATH CAN OCCUR ANY TIME AFTER LEAVING THE GROUND!
FOR THOSE REASONS ALWAYS WEAR A FALL ARREST SYSTEM (FAS)
COMPRISING A FULL BODY HARNESS AT ALL TIMES AFTER LEAVING
THE GROUND. YOU MUST STAY CONNECTED AT ALL TIMES AFTER
LEAVING THE GROUND WHILE USING ANY ELEVATED HUNTING
PLATFORM. SINGLE SAFETY BELTS AND CHEST HARNESSES ARE NO
LONGER ALLOWED AND SHOULD NEVER BE USED. IF YOU ARE NOT
WEARING A FULL BODY HARNESS THAT IS PROTECTING YOU FROM
A FALL, DO NOT LEAVE THE GROUND!
•
READ AND UNDERSTAND ALL OF THE MANUFACTURER'S WARNINGS AND INSTRUCTIONS AND USE ALL SAFETY
DEVICES PROVIDED. CONTACT SUMMIT TREESTANDS FOR ANY QUESTIONS. FAILURE TO DO SO COULD RESULT
IN INJURY OR DEATH!
•
A SIGNAL DEVICE SUCH A MOBILE PHONE, RADIO, WHISTLE, SIGNAL FLARE OR PERSONAL LOCATOR DEVICE
(PLD) MUST BE ON YOUR PERSON AND READILY AVAILABLE AT ALL TIMES! ALWAYS INFORM SOMEONE OF
YOUR HUNTING LOCATION, WHERE THE TREESTAND WILL BE LOCATED AND THE EXPECTED DURATION OF THE
HUNT!
•
DO NOT USE ANY TREESTAND UNLESS YOU ARE IN GOOD PHYSICAL SHAPE AND HAVE NO PHYSICAL
LIMITATIONS OR MEDICAL CONDITIONS WHICH MAY PREVENT YOU FROM SAFELY USING THIS PRODUCT.
ALWAYS CONSULT A PHYSICIAN IF YOU HAVE ANY QUESTIONS ABOUT YOUR PHYSICAL ABILITY TO USE THIS
PRODUCT.
•
NEVER USE A TREESTAND WHILE TAKING DRUGS, ALCOHOL OR CERTAIN PRESCRIPTION DRUGS! ALWAYS
CONSULT A PHYSICIAN IF YOU HAVE ANY QUESTION ABOUT TAKING SPECIFIC MEDICATIONS AND USING THIS
PRODUCT!
•
NEVER USE A TREESTAND DURING INCLEMENT WEATHER SUCH AS RAIN, LIGHTNING, WINDSTORMS OR ICY
CONDITIONS! END YOUR HUNT AND RETURN TO THE GROUND IF ANY OF THESE INCLEMENT CONDITIONS ARISE.
•
NEVER USE A TREESTAND WHEN FEELING ILL, NAUSEOUS, DROWSY OR DIZZY!
•
BE WELL RESTED AND NEVER HURRY. HURRYING CAUSES ACCIDENTS!
•
NEVER USE A TREESTAND ON A DEAD, LEANING, DISEASED, LOOSE BARKED TREE, ON A UTILITY POLE OR ON
TREES THAT HAVE ANY OBSTRUCTIONS THAT MAY LIMIT TREESTAND USE! NEVER RELY ON A TREE BRANCH
FOR SUPPORT!
•
NEVER JUMP OR BOUNCE ON A TREESTAND TO SECURE IT TO THE TREE!
•
PULL UP A BOW, BACKPACK, FIREARM OR OTHER EQUIPMENT ONLY AFTER BEING SECURE IN THE TREESTAND.
FIREARMS MUST BE PULLED UP UNLOADED, CHAMBER OPEN AND MUZZLE DOWN!
•
UNDER NO CIRCUMSTANCE SHOULD YOU EVER RELEASE THE CABLE FROM THE PLATFORM OR SEAT CLIMBER TO
MAKE ADJUSTMENTS ONCE YOU ARE OFF THE GROUND!!!
•
NEVER MODIFY YOUR STAND IN ANY WAY BY MAKING REPAIRS, REPLACING PARTS, OR ALTERING, ADDING OR
ATTACHING ANYTHING TO IT EXCEPT IF EXPLICITLY AUTHORIZED IN WRITING BY THE MANUFACTURER!
•
PRACTICE INSTALLING, ADJUSTING AND USING YOUR TREESTAND AT GROUND LEVEL PRIOR TO USING IT AT
ELEVATED POSITIONS!
•
INSTRUCTIONS (WRITTEN AND VIDEO) SHOULD BE KEPT IN A SAFE PLACE AND REVIEWED AT LEAST ANNUALLY.
IT IS THE RESPONSIBILITY OF THE TREESTAND OWNER TO FURNISH THE COMPLETE INSTRUCTIONS TO ANY
PERSON WHO BORROWS OR PURCHASES THE TREESTAND! THIS SUMMIT TREESTAND IS DESIGNED TO BE USED
AS A COMPLETE SYSTEM - NEVER LOAN OR SELL ONLY A PORTION OF THE CLIMBING TREESTAND SYSTEM.
•
BEFORE EACH USE OF YOUR SUMMIT TREESTAND, ALWAYS INSPECT THE TREESTAND AND HARNESS FOR ANY
DAMAGE, CRACKS, TEARS, CABLE WEAR OR ABRASION THAT MAY HAVE OCCURRED IN TRANSPORTING /
STORING YOUR TREESTAND. DO NOT USE IF ANY DAMAGE IS FOUND! CONTACT CUSTOMER SERVICE FOR THE
APPROPRIATE REPAIR / REPLACEMENT PROCEDURE!
•
DO NOT LEAVE YOUR TREESTAND OUTDOORS OR STORE IT OUTDOORS WHEN IT IS NOT BEING USED! ANY
STAND TUBING THAT IS ALLOWED TO FILL WITH RAINWATER AND FREEZE WILL RUPTURE OR BURST - DO NOT
USE YOUR TREESTAND IF THIS OCCURS!
INSTRUCTIONS
You MUST also view the enclosed DVD
BEFORE using your new treestand!!
W E I G H T L I M I T S
300 LBS. TOTAL*

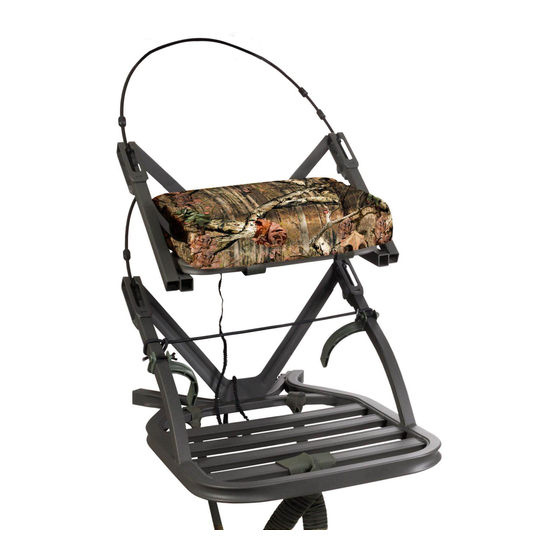

RAZOR - 81068
OPENSHOT DELUXE- 81079
DO NOT EXCEED THIS LIMIT!
(* Includes all gear)
Stand minimum and maximum
tree size: 8-20" diameter
FORM# 18003
Advertisement
Related Manuals for Summit Razor SS
Summary of Contents for Summit Razor SS
- Page 1 IT IS THE RESPONSIBILITY OF THE TREESTAND OWNER TO FURNISH THE COMPLETE INSTRUCTIONS TO ANY PERSON WHO BORROWS OR PURCHASES THE TREESTAND! THIS SUMMIT TREESTAND IS DESIGNED TO BE USED AS A COMPLETE SYSTEM - NEVER LOAN OR SELL ONLY A PORTION OF THE CLIMBING TREESTAND SYSTEM.
- Page 2 SUPPORT STRUT / KEYHOLE BRACKET 10641 SHORT SHANK BUSHING 10693 1/4” TALL METAL BUSHING Summit products are manufactured under one or more of the following US Patents: 5,937,969; 5,971,104; 5,975,242; 5,979,603; 6,125,966; 6,182,792; 6,397,973; D,417,011; D,420,147; D,575,411 Summit Bucksteps are Patent Pending www.summitstands.com...
-
Page 3: Tools Required
71079 - ACCESSORY PACKET CONTENTS DESCRIPTION 10640 LONG SHANK BUSHING 85052 STIRRUPS (2), BUNGEE W/ HOOK, HARDWARE 83054 SUMMIT 4 POINTS SAFETY HARNESS W/ 1 ATTACHED SRS STRAP 10641 SHORT SHANK BUSHING HARNESS SAFETY STRAP 18001 WRITTEN HARNESS INSTRUCTIONS 30283 1”... - Page 4 CLIMBING BAR (continued) 2” BOLT AND LOCK NUT 3. Position the Razor Seat Bar so that the small welded- - WRENCH TIGHTEN on bracket is facing up (figure 3). Slide the climbing bar BRACKET ends into the U-Brackets and secure with one 2” bolt FACING UP and one lock nut per side - Shown in figure 4.
- Page 5 FOAM SEAT (continued) 1. Position the seat inside of the seat climber frame. 2. Wrap the seat strap webbing over the frame from the inside out as shown in figure 9. 3. Turn the three bar slide slightly sideways and push it through the metal D buckle that is sewn onto the end of the strap (figure 10).
-
Page 6: Setup And Use
OPENSHOT / RAZOR SHARED ASSEMBLY RAPIDCLIMB STIRRUPS STIRRUP 1. Position the stirrup as shown in figure 17. The curved end of the stirrup should face down and in - toward the center of the platform. 2. Once positioned secure with the supplied bolt and wing nut as shown in figure 18. - Page 7 30, DO NOT USE THE TREESTAND since the cable can release resulting in a user to fall! Contact summit to obtain the proper corrective action. 6. If necessary, go to the other side of the tree and...
- Page 8 ALWAYS refer to the written safety harness instructions for proper use of your safety harness. If you purchased a Razor SS, you must first position the climbing bar in order to sit on it and climb. Position the climbing bar so that the keyhole slot in the support strut will fit over the head of the bolt as shown in figure 34.
- Page 9 4. To begin climbing, raise your seat climber up to RAZOR OPENSHOT just below waist height and grasp the upright arms very firmly as shown in figure 41 Razor and figure 42 OpenShot. WARNING DO NOT TIP YOUR WEIGHT ONTO YOUR TOES unless you are ready to move the platform.
- Page 10 WARNING NEVER DISCONNECT FROM YOUR SAFETY HARNESS OR SAFETY LINE ONCE YOU LEAVE THE GROUND!! 1. When you get to your hunting height (do not climb higher than 15 feet; it is unnecessary) and you have assured that your treestand is level, position your seat climber slightly below waist level.
- Page 11 BACKPACKING THE RAZOR Your treestand is designed to “nest” together as one unit making it easy to transport. 1. Un-buckle the backpack strap tether from the seat climber yolk and Re-clip it around the perimeter tubing of the platform. 2. Start with the seat climber portion of the stand, set it on its end as shown in figure 49.
-
Page 12: Maintenance And Care
It is expressly understood that Summit’s liability for its products, whether due to breach of warranty, negligence, strict liability, or otherwise, is limited to the repair of the product, as stated above, and Summit will not be liable for any other injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit, or damage to material, arising in connection with the sale, installation, use of, inability to use, or the repair or replacement of Summit’s products.
