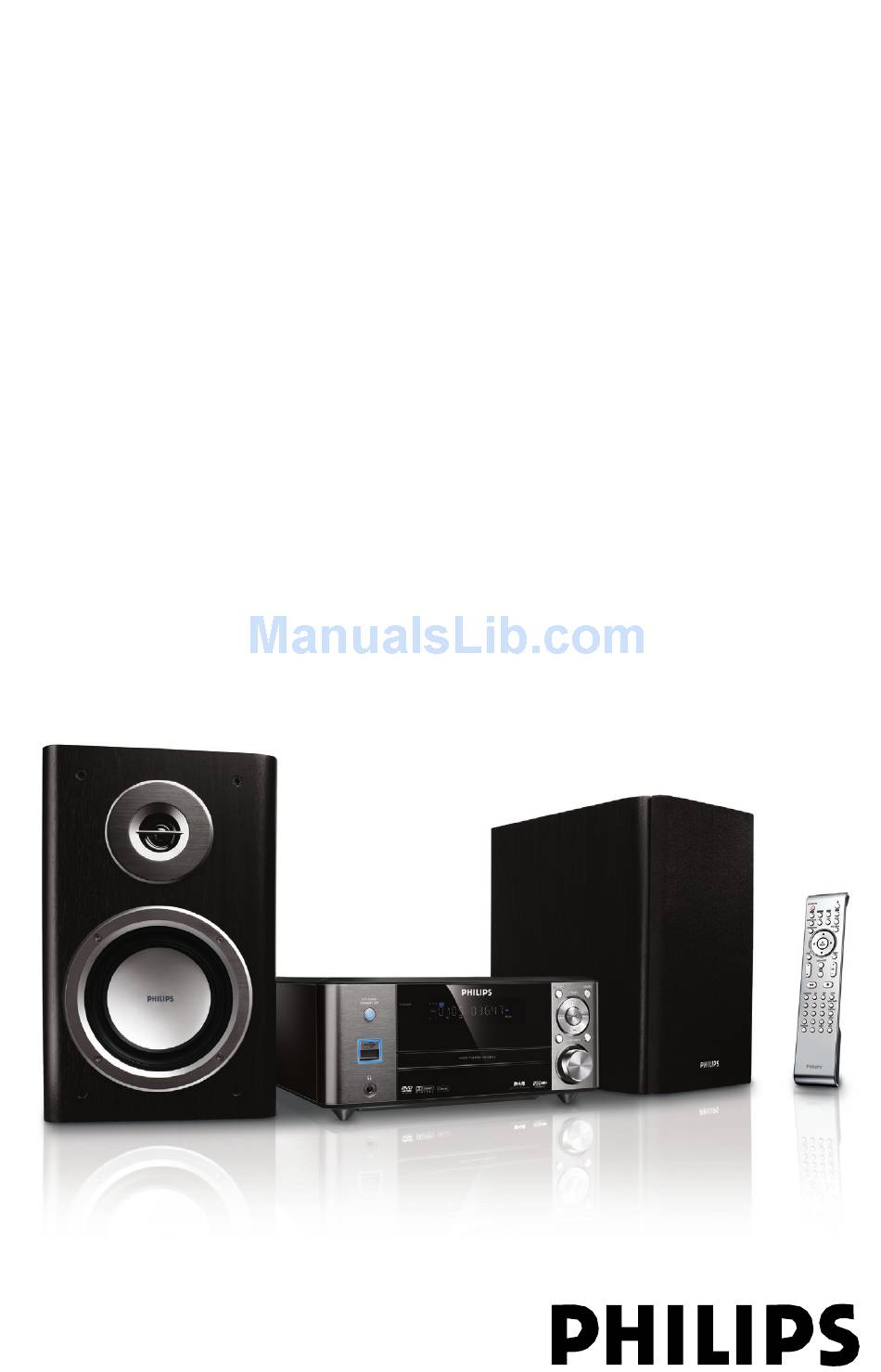

- Page 1 DVD Micro Theatre Register your product and get support at www.philips.com/welcome User manual Brugervejledning Brukerhåndbok MCDB710...
- Page 2 Important notes for users in the U.K. Mains plug This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fix new fuse which should be a BS1362 3 Amp, A.S.T.A.
- Page 3 Manufactured under license from Dolby Laboratories. "Dolby", "Pro-logic", “Pro-logic II” and the double- D symbol are trademarks of Dolby Laboratories. MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS, INC. US PAT. NO 5,451,942,5,956,674, 5,974,380, 5,978,762 AND OTHER WORLDWIDE This product incorporates copyright protection technology that is protected by method claims of certain U.S.
- Page 4 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.
- Page 5 Index English ------------------------------------------------ 6 Dansk ----------------------------------------------- 35 Bokmål --------------------------------------------- 64...
-
Page 6: Table Of Contents
Contents General Information Supplied accessories ... 8 Environmental information ... 8 Installation ... 8 Maintenance ... 8 Hearing Safety ... 9 About Digital Audio Broadcasting (DAB) ... 9 Connections Step 1: Placing speakers ... 10 Step 2: Connecting TV ... 10 Using SCART jack ... - Page 7 SATURATION ... 24 AUDIO SETUP ... 24 DIGITAL OUT ... 24 DOWNMIX ... 24 3D PROCESSING ... 25 LPCM ... 25 NIGHT MODE ... 25 DAB Reception Tuning to DAB for the first time ... 26 Tuning to a station ... 26 Tuning to a secondary station ...
-
Page 8: General Information
General Information Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. This product complies with the radio interference requirements of the European Community. Supplied accessories – Remote control with two AAA batteries –... -
Page 9: Hearing Safety
Hearing Safety Listen at a moderate volume. ● Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. -
Page 10: Connections
Connections IMPORTANT! – The type plate is located at the bottom of the system. – For users in the U.K.: please follow the instructions on page 2. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. -
Page 11: Using Component Video Jacks (Y Pb Pr)
Using Component Video jacks (Y Pb Pr) IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required. Use component video cables (red/blue/green - not supplied) to connect the DVD system's Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV. -
Page 12: Using An Accessory Rf Modulator
(labeled as 75 ohm or RF In), you will need an RF modulator in order to view DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. RF coaxial cable to TV... -
Page 13: Additional: Connecting Additional Equipment
Additional: Connecting additional equipment IMPORTANT! – Some discs are copy-protected. You cannot record the disc through a VCR or digital recording device. – When making connections, make sure the colour of cables matches the colour of jacks. – Always refer to the owner’s manual of the other equipment for complete connection and usage details. -
Page 14: Functional Overview
Functional Overview DVD player and power amplifier ECO POWER/STANDBY-ON y – switches on the system or puts it on to Eco power/normal standby mode. Display – shows the current status of the DVD player. ÉÅ – starts or interrupts disc playback. –... -
Page 15: Remote Control
Remote control ECO POWER/STANDBY-ON y – switches on the system or puts it on to Eco power/normal standby mode. Numeric Keypad (0-9) – inputs a track/title/chapter number of the disc. – selects a preset DAB radio station directly. ™ ∞ &... - Page 16 Functional Overview VOL +/- – adjusts the volume upward/downward. – adjusts the hours and minutes in clock/timer setting mode. – selects a source in timer setting mode. MODE/SCAN – selects various repeat modes or the shuffle play mode for a disc. –...
-
Page 17: Getting Started
Switch the DVD system on and then select DISC source. (See “Switching the system on/off ”). Turn on the TV and set to the correct video-in channel. You should see the blue Philips DVD background screen on the TV. Getting Started... -
Page 18: To Deactivate Progressive Manually
Getting Started To deactivate Progressive manually ● When the distorted sign still appears on the TV, it may be due to the connected TV does not accept progressive signals, and progressive is set by mistake. You must reset the unit to interlace format. Turn off your TV progressive scan mode or turn on to interlaced mode (refer to your TV user manual). -
Page 19: Basic Operations
Switching the system on/off ● Press ECO POWER/STANDBY-ONB. ➜ “Welcome to PHILIPS Audio” is displayed briefly. The system will switch to the last selected source. ● Press DISC, FM/DAB, USB or AUX on the remote control. ➜ The system will switch to the selected source. -
Page 20: Disc Operations
Video In channel. (See “Setting up the TV”). Press ECO POWER/STANDBY-ON y. ➜ You should see the blue Philips DVD background screen on the TV. Press 0 to open the disc tray and load in a disc, then press the same button again to close the disc tray. -
Page 21: Resuming Playback From The Last Stopped Point
Resuming playback from the last stopped point (DVD/VCD/CD) ● In stop mode and when a disc has not been removed, press ÉÅ. To cancel resume mode ● In stop mode, press 9 again. Zoom (DVD/VCD/DivX/JPEG) Zooming allows you to enlarge or reduce the video image during playback. -
Page 22: Changing The Audio Channel
Disc Operations Changing the Audio Channel (for VCD /DivX only) ● Press AUDIO to select the available audio channels provided by the disc (Mono Left, Mono Right or Stereo). Subtitles (DVD) ● Press SUBTITLE repeatedly to select different subtitle languages. Playing MP3/WMA/JPEG Picture disc General operation... -
Page 23: System Menu Options
Basic operations Press SYSTEM MENU to enter the Setup Menu. Press 2/3 to select a page to be set. Press 5/4 to highlight an option. Enter its submenu by pressing 3 or OK/ ENTER. Move the cursor by pressing 5/4 to highlight the selected item. -
Page 24: Default
System Menu Options DEFAULT Setting the “DEFAULT” function will reset all options and your personal settings to the factory defaults and all your personal settings will be erased. Caution! – When this function is activated, all settings will be reset to factory defaults. DIVX[R] VOD In SYSTEM SETUP page, press 3/4 to highlight DIVX[R] VOD, then press 3 or OK/ENTER... -
Page 25: 3D Processing
3D PROCESSING 3D processing provides a virtual surround sound experience using just two speakers. ➜ OFF, CONCERT, CHURCH, PASSIVE, WIDE and LIVE LPCM If you connect the DVD Player to a PCM compatible receiver via the coaxial terminal, you may need to adjust 'LPCM'. Discs are recorded at a certain sampling rate. -
Page 26: Dab Reception
DAB Reception Tuning to DAB for the first time ● Press SOURCE on the front panel of the system or press FM/DAB on the remote control repeatedly to select the DAB source. ➜ The system will start a quick scan to search for all available Band III channels automatically. -
Page 27: Pty (Program Type)
PTY (Program type) Displays the content type (e.g., Classic, Pop, News, etc.) Data Rate and mode Displays the transmission rate of broadcasting in bits per second (kbps) and the audio status of the current service in stereo or mono. Multiplex name Specifies the multiplex of current service. -
Page 28: Other Functions
Other Functions Radio Reception Tuning to radio stations Press ECO POWER/STANDBY-ON y to switch on the last selected source. Press SOURCE (FM/DAB on the remote) to select TUNER (FM) mode. Press and hold ¡1 / 2™ on the system (or 2 / 3 on the remote control) until the frequency indication starts to change, then release. -
Page 29: Setting The Clock
Setting the clock In Standby mode, press and hold CLOCK on the remote control until the time flashes on the display. ➜ ”CLOCK SET” is displayed briefly. Then, the hour digits flash on the display screen. Turn VOLUME -/+ clockwise or anticlockwise or press VOL +/- on the remote to set the hours. -
Page 30: Using A Usb Mass Storage Device
Other Functions Using a USB mass storage device By connecting a USB mass storage device to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system. Playing a USB mass storage device Compatible USB mass storage devices With the Hi-Fi system, you can use: –... -
Page 31: Specifications
Amplifier Rated output power ... 2 x 50W RMS Frequency response ... 20 - 20000Hz, - 3dB Signal to noise ratio ... > 65dB Aux input ... 1V RMS 20kohm Disc Laser type ... Semiconductor Disc diameter ... 12cm/8cm Video decoding ... MPEG-1 / MPEG-2 / Divx Video DAC ... -
Page 32: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. - Page 33 The aspect ratio of the screen cannot be changed even though you have set the TV shape. No sound or distorted sound. The micro DVD player does not start playback. The DVD micro system does not respond when the buttons are pressed. Cannot activate some features, such as Angles, Subtitles, or multi-language Audio.
- Page 34 Troubleshooting The remote control does not function. The display is dark. Low hum or buzz sound. Low bass response. Unable to select Progressive Scan No sound and picture Some files on the USB device are not displayed. “NO USB” appears on the display. ✔...
- Page 35 Meet Philips at the Internet http://www.philips.com MCDB710 CLASS 1 LASER PRODUCT Printed in China PDCC-JS-WP-0821...
