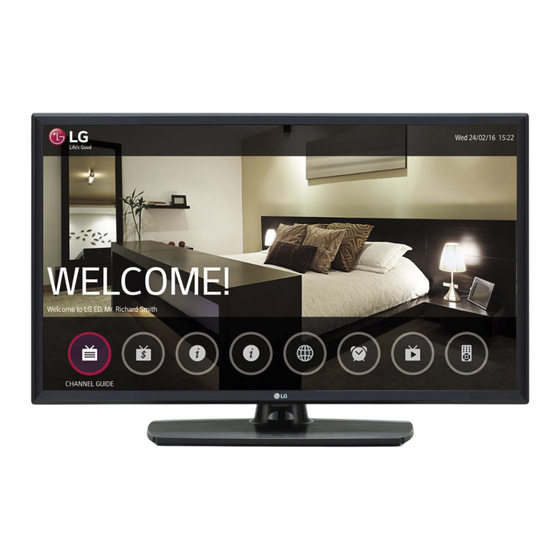

LED TV
LU34*

Advertisement

Table of Contents
loading

Summary of Contents for LG LU34 Series

  • Page 1 / Típusfüggő / In base al modello / Zależnie od modelu / Dependendo do modelo / În funcţie de model / В зависимости от модели / U zavisnosti od modela / Ovisno o modelu / Odvisno od modela / En función del modelo / Modele bağlı olarak değişkenlik gösterebilir / Залежно від моделі www.lg.com...
  • Page 3 32LU34* 43/49LU34* 32LU34* 43/49LU34*...
  • Page 4 ANTENNA/ CABLE IN HDMI IN USB IN H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT...
  • Page 5 OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN...
  • Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
  • Page 7 HDMI-DVI IN RGB IN RGB IN HDMI IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MON AUDIO R AUDIO OUT AUDIO OUT DVI OUT RGB OUT...
  • Page 9 32LU341H-ZA 6.05 4.85 43LU341H-ZA 80.8 11.2 49LU341H-ZA 1110 81.1 14.5 11.3...
  • Page 10 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *SAC35974154* Copyright © 2018 LG Electronics Inc. All Rights Reserved.
  • Page 11 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 12 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
  • Page 13: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.
  • Page 14: Lifting And Moving The Tv

    Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV Please note the following advice to prevent the TV from being scratched may occur.
  • Page 15: Attaching The Tv To A Desk

    Attaching the TV to a Desk Using the Kensington security system (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ The Kensington security system connector is located at the rear of the backward direction, potentially causing injury or damaging the product.
  • Page 16: Mounting To The Wall

    LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please...
  • Page 17: Satellite Dish

    Connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and Connect various external devices to the TV and switch input modes to other external devices. select an external device. For more information of external device’s •...
  • Page 18: External Speakers

    External Speakers Network Wired network connection This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication. Connect the LAN port of the Modem or Router from Pro:Centric server to the LAN port on the TV.
  • Page 19: Using Button

    Using Button Adjusting the Angle of the TV to suit view You can simply operate the TV functions, using the button. Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚...
  • Page 20: Control Buttons

    Selects Radio, TV and DTV programme. Number buttons Enters numbers. Accesses the saved programme list. Returns to the previously viewed programme. Adjusts the volume level. Accesses your favourite programme list. Resizes an image. Mutes all sounds. - Pressing and holding the button accesses the Accessibility menu.
  • Page 21: Troubleshooting

    Troubleshooting Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. The software version can be updated for improvement in performance. •...
  • Page 22: Specifications

    Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-S/S2 PAL/SECAM B/G, D/K, I Television system DVB-T/T2 SECAM L DVB-C DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz Channel coverage UHF IV : 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950~2,150 MHz...
  • Page 23 HDMI/DVI-DTV supported mode HDMI/DVI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical Resolution 640 x 480 Frequency (kHz) Frequency (Hz) 31.50 60.00...
  • Page 24: Supported Photo Formats

    Supported Photo Formats Supported Audio Formats File Extension Item Resolution Item Info type SOF0 : Baseline Bit rate 32 Kbps - 320 Kbps Available File SOF1 : Extend Sequential Type Sample freq. 16 kHz - 48 kHz SOF2 : Progressive Support MPEG-1, MPEG-2, Layer2, Layer3 .jpeg, .jpg,...
  • Page 25: Supported Video Formats

    Video MPEG-2, MPEG-4 Part2, XViD, H.264/AVC LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, .avi...
  • Page 26 IR CODES •  This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER)  (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button   Remote control Button Remote control Button Remote control Button  /  Remote control Button Remote control Button 10-19  Number Key 0-9 Remote control Button Remote control Button Remote control Button 8F  Remote control Button Remote control Button   Remote control Button    Remote control Button Remote control Button   ...
  • Page 27: External Control Device Setup

    EXTERNAL CONTROL DEVICE Type of Connector : D-Sub 9-Pin Male SETUP RS-232C Setup •  Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control  device (such as a computer or an A/V control system) to control the  product’s functions externally. Pin name Connect the serial port of the control device to the RS-232C jack on the  product back panel. 3.5 V RXD (Receive data) •  RS-232C connection cables are not supplied with the product. TXD (Transmit data) IR OUT from TV GND  No Connection No Connection (5 V available in some models) No Connection No Connection (12 V available in some models) RS-232C IN (CONTROL & SERVICE) (*Not Provided)
  • Page 28: Communication Parameters

    RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal)     PC  01. Power 00 to 01      2  3  02. Aspect Ratio (See p. 4)     3  2  03. Screen Mute (See p. 5)     5  5  04. Volume      4  6 ...
  • Page 29: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 01.  Power (Command: k a) ►To control Power On/Off of the set.   (Depending on Model) Transmission [k][a][  ][Set ID][  ][Data][Cr] Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] Data 00 : Power Off  01 : Power On [Command 1] : First command to control the TV. (j, k, m or x) [a][ ][Set ID][ ][OK/NG][Data][x] [Command 2] : Second command to control the TV. ►To Show TV is Power On/Off.   [Set ID] : You can adjust the set ID to choose desired monitor ID number  in option menu. Adjustment range is 1 to 99. When selecting Set ID  Transmission ‘0’ ,  every connected set is controlled. Set ID is indicated as decimal (1  [k][a][ ][Set ID][ ][FF][Cr] to 99) on menu and as Hexa decimal (0 x 0 to 0 x 63) on transmission/ receiving protocol. [Data] : To transmit command data. Transmit  ‘ FF’ data to read status of  [a][ ][Set ID][ ][OK/NG][Data][x] command. [Cr] : Carriage Return *  Similarly, if other functions transmit ‘0 x FF’ data based on this for- mat, Acknowledgement data feed back presents status about each ...
  • Page 30 05.  Volume Control (Command: k f) 03.  Screen Mute (Command: k d) ►To select screen mute on/off. ►To adjust volume.     ►You can also adjust volume with the volume buttons on remote    Transmission control. [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][f][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Video mute off Data Min : 00 to Max : 64           01 : Screen mute on (Picture off) *  Refer to Real data mapping           10 : Video mute on [f][ ][Set ID][ ][OK/NG][Data][x] [d][ ][Set ID][ ][OK/NG][Data][x] *  In case of video mute on only, TV will display On Screen Display(OSD).  06.  Contrast (Command: k g) But, in case of Screen mute on, TV will not display OSD. ►To adjust screen contrast.   You can also adjust contrast in the PICTURE menu. 04.  Volume Mute (Command: k e) ►To control volume mute on/off. Transmission   You can also adjust mute using the MUTE button on remote control. [k][g][ ][Set ID][ ][Data][Cr] Transmission Data Min : 00 to Max : 64 [k][e][ ][Set ID][ ][Data][Cr] * ...
  • Page 31 12.  Remote Control Lock Mode (Command: k m) 08.  Colour (Command: k i) ►To adjust the screen Colour. ►To lock the front panel controls on the monitor and remote control.     You can also adjust colour in the PICTURE menu. Transmission [k][m][ ][Set ID][ ][Data][Cr] Transmission [k][i][ ][Set ID][ ][Data][Cr] Data 00 : Lock off 01 : Lock on Data Min : 00 to Max : 64 *  Refer to Real data mapping [m][ ][Set ID][ ][OK/NG][Data][x] [i][ ][Set ID][ ][OK/NG][Data][x] *  If you are not using the remote control, use this mode. When main  power is on/off, external control lock is released. *  In the standby mode, if key lock is on, TV will not turn on by power  09.  Tint (Command: k j) on key of IR & Local Key. ►To adjust the screen tint.   You can also adjust tint in the PICTURE menu. 13.  Balance (Command: k t) Transmission ►To adjust balance.   [k][j][ ][Set ID][ ][Data][Cr] You can also adjust balance in the AUDIO menu. Data Red : 00 to Green : 64 *  Refer to Real data mapping Transmission [k][t][ ][Set ID][ ][Data][Cr] Data L : 00 to R : 64...
  • Page 32: Power Saving Function

    15.  Energy Saving (Command: j q) 17.  Equalize (Command : j v) ►To reduce the power consumption of the TV. You can also adjust  ►To adjust equalize.     Energy Saving in PICTURE menu. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving MSB                                                                                                                    LSB Level Function Description Data Low  Frequency Power 7 6 5 Frequency 4 3 2 1 0 Step Low  Minimum Power 0 0 0 1st Band 0 0 0 0 0 0(decimal) Low ...
  • Page 33: External Input

    22.  Input select (Command: x b) Channel data range Min : 00 Max : 270F (0 to 9999) (Main Picture Input) ►To select input source for main picture.   Transmission [a][ ][Set ID][ ][OK/NG][Data][x] [x][b][ ][Set ID][ ][Data][Cr] 19.  Programme Add/Skip (Command: m b) Data   Structure ►To set skip status for the current Programme.   MSB                                                                                                                     LSB Transmission [m][b][ ][Set ID][ ][Data][Cr] External Input Input Number Data 00 : Skip 01 : Add External Input Data [b][ ][Set ID][ ][OK/NG][Data][x] Analogue 20.  Key (Command: m c) Component ►To send IR remote key code.   Transmission [m][c][ ][Set ID][ ][Data][Cr] HDMI Data  IR CODES [c][ ][Set ID][ ][OK/NG][Data][x] Input Number Data Input1 21. ...
  • Page 34 *  Real data mapping 00 : Step 0 A : Step 10 (Set ID 10) F : Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100   6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE : Step 254 FF : Step 255...
