MINOURA Bike Cradle 4 Instruction Manual

CRADELE 4
49 44924 42220 2
We suggest wrapping
!
the hook with bar tape to
minimize discoloring of
lighter colored frames.

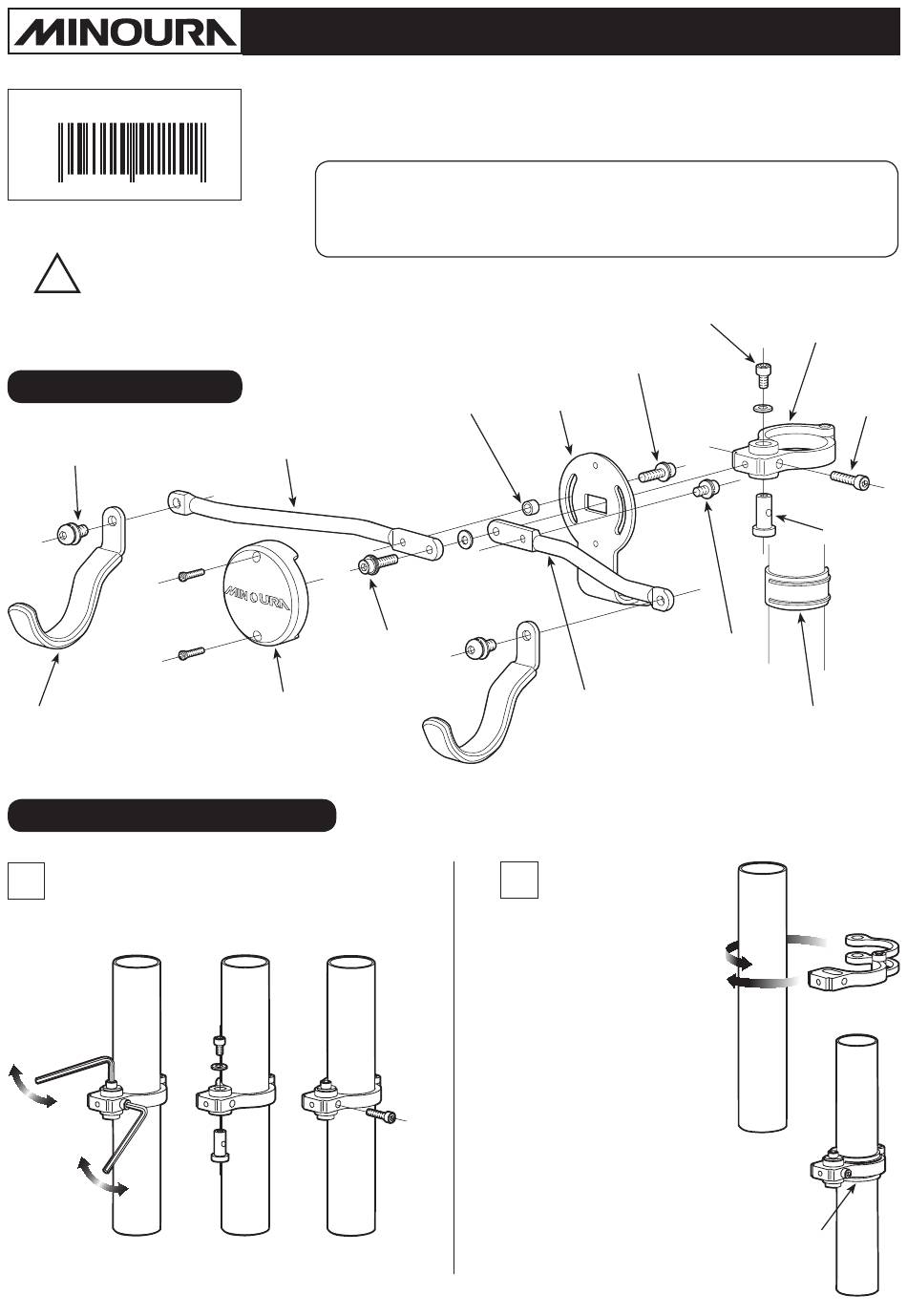

Schematics
Hook Fixing Screw
Hook
How To Install Cradle4
At first, remove the Pivot-Pin, Pivot-pin Fixing
1
Screw and Clamp Tightening Screw to open the
clamp (see Fig. A).
Extra Bike Hanger Kit
Bike Cradle 4's arm has different shape from Bike Cradle 3. It's the bent type
in order to enable to place the bike further from the pillar to avoid conflicting
with the pedal.
<Applicable Tube Diameter: 38 – 45mm>
40mm = for BikeTower / BikePit upper pillar
45mm = for BikeTower / BikePit lower pillar, P-500 / 600 / 700 pillar
Left Side Arm (foreside)
Arm Connecting
Screw
Cradle Cap
Required Tool: M5 Hex Wrench
(Fig. A)
Bike Cradle 4
Left Arm Angle
Adjusting Screw
Spacer Collar
(Left side only) Main Bracket
Right Side Arm
(backside)
2
Widely open the clamp then
wind arond the pillar.
Make sure the single fatter arm
is located on the right side, and
two narrower arms are located
on the left side (see Fig. B).
Opposite combination doesn't
work.
If the pillar diameter is smaller
than 43mm, install the supplied
plastic Shim first, then wind the
clamp over the shim (see Fig. C).
Make sure you install the Shim
in correct direction. Dual rail
must fit to the single arm side.
- 3 -
instructions manual
(ver.1.1 2014/8)
Pivot-Pin
Fixing Screw
Clamp
Right Arm
Angle Adjusting
Screw
Shim
(use if the pillar diameter is
smaller than 43mm)
(not supplied)
Shim
(Fig. C)
Clamp
Tightening
Screw
Pivot-Pin
(Fig. B)
