MINOURA Extra Bike Cradle 3 Instruction Manual

CRADELE 3
4 9 4 4 9 2 4 4 2 2 1 7 2 4 9 4 4 9 2 4 4 2 2 1 7 2
We suggest wrapping
!
the hook with bar tape to
minimize discoloring of
lighter colored frames.
Hook Fixing Bolt
Hook
!
How To Install the Cradle
(Cradle is not shown here for describing about the clamp band)
Required Tool:
1 x 5mm Hex Wrench
1
First, disassemble the
Clamp Band and open it so
the pillar can be installed.
Then remove the Clamp
Tightening Bolt, then the
Pivot-Pin Fixing Bolt using
an M5 hex wrench.
(see Fig. A)
2
Open the Clamp Band and
wind around the pillar (see
Fig. B).
Align all 3 holes on the arms
after closing.

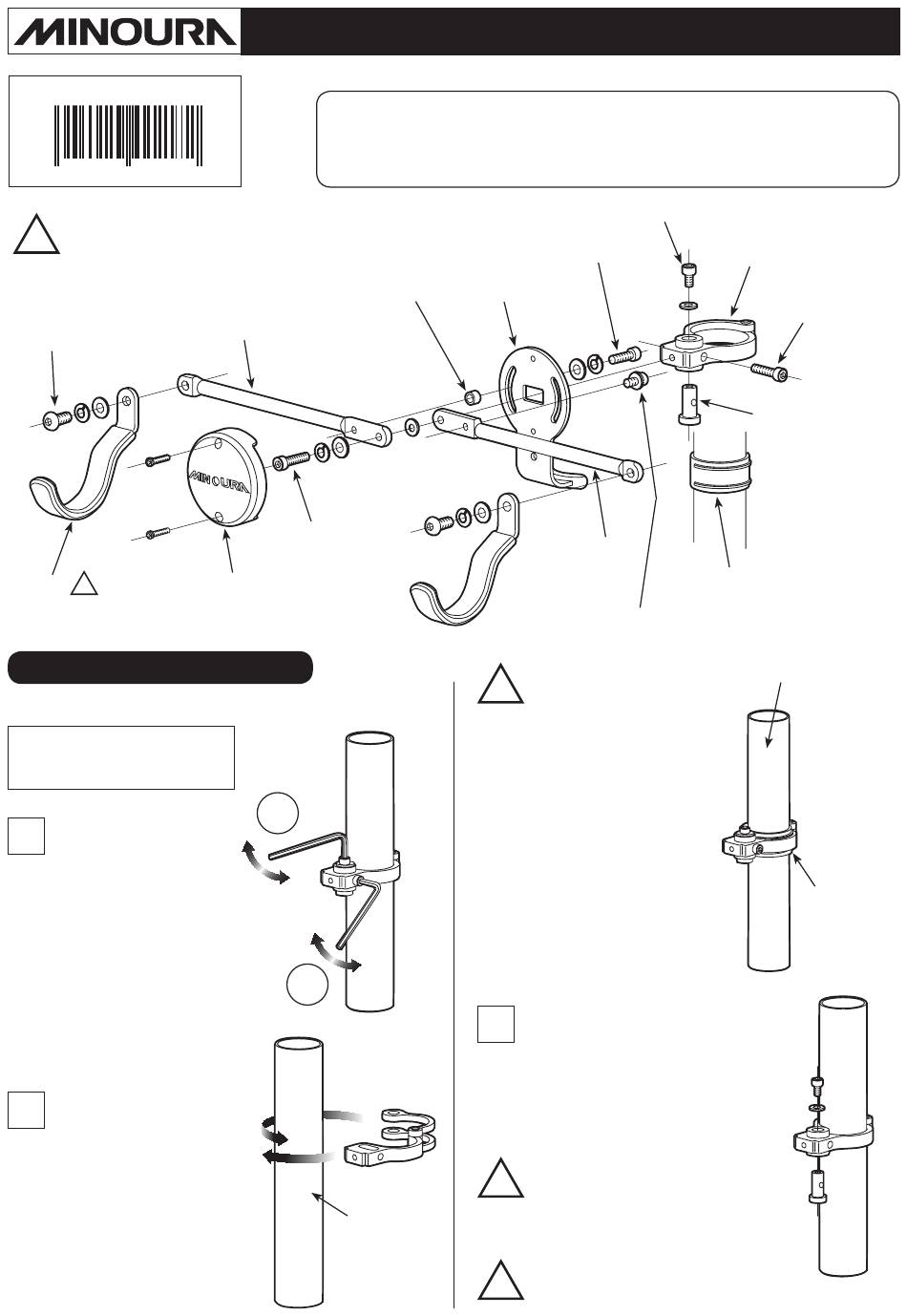

Extra Bike Cradle 3
<Applicable Tube Diameter: 38 – 45mm>
40mm = for BikeTower / BikePit upper pillar
45mm = for BikeTower / BikePit lower pillar, P-500 / 600 / 700 pillar
Metal Collar
(Left side only)
Left side Arm (foreside)
Arm Connecting
Bolt
Cradle Cap
2
1
BikeTower
lower pillar
(45mm
diameter)
(Fig. B)
Left Arm Angle Fixing Bolt
Base Plate
Right side Arm
(backside)
Right Arm Angle Fixing Bolt
!
In case of installing on
43mm or narrower diameter
pillar such as the upper
pillar of BikeTower or
BikePit, add the Plastic Shim
under the Clamp Band.
The shim is not necessary
when installing on the fatter
45mm diameter pillar.
Make sure the single side
arm sits between the double
rails on the shim.
3
(Fig. A)
Put the Pivot-Pin through all 3 holes
from the bottom side, and screw the
Pivot-Pin Fixing Bolt with a washer
into the Pivot-Pin (see Fig. D).
If you try to install the Pivot Pin
!
from the bottom, you won't be
able to tighten the bolt correctly.
Follow the instructions precisely.
Do not tighten the bolt firmly
!
yet at this moment.
– instructions manual
Pivot-Pin Fixing Bolt
Clamp Band
Clamp Tightening
Bolt
Pivot-Pin
Plastic Shim
(use on 43mm or smaller
diameter)
BikeTower upper pillar
(40mm diameter)
(ver.1.1 2014/8)
Install Shim
(Fig. C)
(Fig. D)
