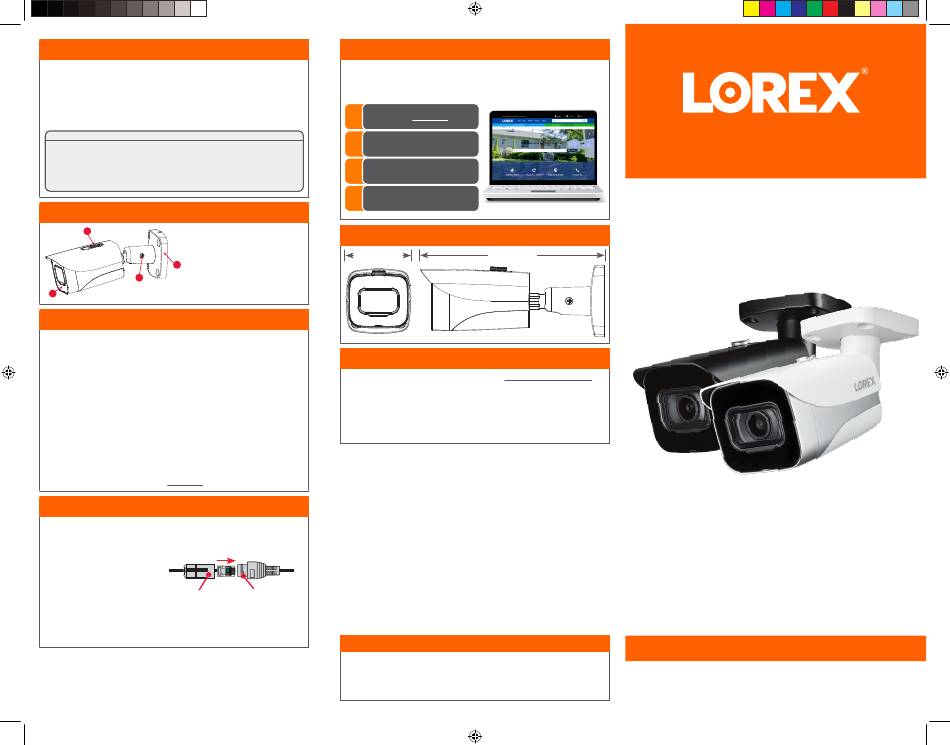

Lorex E861AB Series Quick Start Manual

Package Contents
• 4K Ultra HD Bullet IP Camera
• Mounting Kit*
• Ethernet Extension Cable with Pre-attached RJ45
Cable Gland*
* Per camera in multi-camera packs.
ATTENTION:
It is recommended to connect the camera to the NVR or an external PoE
switch. If using a DC power adapter (not included) with the camera, a
REGULATED power supply is REQUIRED for use with this camera. Use of
a non-regulated, non-conforming power supply can damage this product
and voids the warranty.
Camera Overview
B
A. Light Sensor and IR LEDs
B. Sun Shield Screw
D
C. Adjustment Screw
D. Camera Base
C
A
Safety Precautions
• Use the camera only with compatible Lorex NVRs.
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Use only a regulated power supply with the product (optional). Use of a
non-regulated, non-conforming power supply can damage the product
and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and floor-to-floor installations are sold separately (CMR type). These
and other cables are available at lorex.com.
Using the RJ45 Cable Gland (Optional)
The pre-attached RJ45 cable gland covers the camera's Ethernet
connector and the RJ45 plug to provide weather-resistance and
protection from dust, dirt and other environmental contaminants.
To use the RJ45 cable gland:
Twist the RJ45 cable gland
barrel securely onto the
RJ45 Cable
camera Ethernet connector.
Gland Barrel
NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with
silicone and/or electrical tape for additional sealing if it will be exposed
to precipitation regularly.
E861AB_QSG_EN_R2.indd 1
Resources
Visit us online for up-to-date software
and complete instruction manuals
1
Visit lorex.com
Search for the model
2
number of your product
Click on your product
3
in the search results
4
Click on the Downloads tab
Dimensions
2.8" / 70mm
Disclaimers
• For a full list of compatible recorders, visit
• Not intended for submersion in water. Installation in a sheltered
location recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the
camera changes between Day/Night viewing modes, an audible
clicking noise may be heard from the camera. This clicking is normal,
and indicates that the camera filter is working.
Camera Ethernet
Connector
Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves
the right to modify product design, specifications and prices, without
notice and without incurring any obligation. E&OE. All rights reserved.
Need Help?
7.1" / 180mm
lorex.com/compatibility.
E861AB_QSG_EN_R2
4K Ultra HD Bullet IP Camera
Quick Start Guide
English Version 2.0
E861AB SERIES
www.lorex.com
2019-08-06 3:51:01 PM
