Dremel 18500 Assembly Instructions

Read and understant all instructions. Failure to follow
WARNING
!
all instructions may result in serious personal injury.
To avoid accidents, always turn the tool off and dis-
WARNING
!
connect the tool from the power supply before
installing tool to attachment.
The stamped rails may have sharp edges. Be careful
WARNING
!
in handling the rails to prevent from being cut.
Fully assemble and tighten all the fasteners required for this stand.
Also, remember to occasionally check the stand and make sure it is still
tight. A loose stand is unstable and may shift in use and cause injury.
Before operating, make sure the entire unit is placed
WARNING
!
on a solid, flat, level surface. Serious injury could occur
if tool is unstable and tips.
Never stand on tool or its stand or use as ladder or
WARNING
!
scaffolding. Serious injury could occur if the tool is
tipped or the cutting tool is accidentally contacted. Do not store materials
on or near the tool such that it is necessary to stand on the tool or its stand
to reach them.
Use only Dremel replacement parts. Any others may
WARNING
!
create a hazard.
UNPACKING AND CHECKING CONTENTS
Separate all parts from packing material and check against the list below. If
any parts are missing or damaged, do not continue assembly until all the
proper parts are obtained from a Dremel Service Center.
IMPORTANT! If any parts are missing, or if you require any assistance
with these instructions, please contact the Dremel™ Consumer Service
1-800-437-3635
at: or check our website at www.Dremel.com.
5
6
10
2610923764 07/04
1-800-4 Dremel
www.dremel.com
PO Box 1468 Racine, WI 53401-1468 USA
8
9
8
4 4
9 9
7
3
1
For use with Dremel Scroll Station Model 1800.
TOOLS REQUIRED
13mm Wrench
CONTENTS
Ref. Qty. Description
1 4 Leg
2 2 Bottom Brace, Long
3 2 Bottom Brace, Short
4 2 Top Brace, Long
5 2 Top Brace, Short
6 32 Shoulder Bolt, 13mm
7 35 Locknut
8 3 Shoulder Bolt, 1-13mm" (Scroll Station Mounting)
9 3 Washer (Scroll Station Mounting)
10 4 Leg Pad
ASSEMBLY

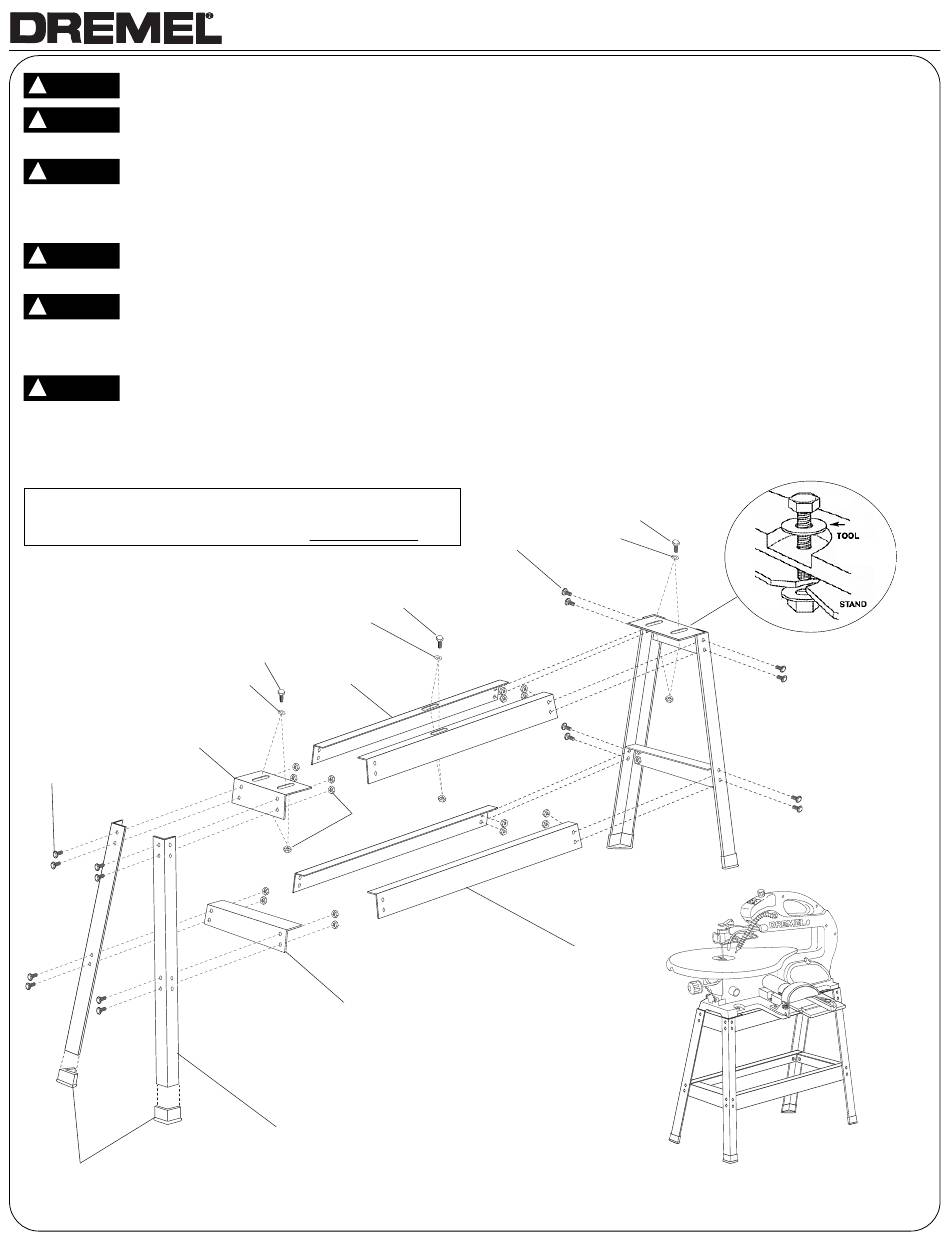

Assemble as shown in the illustration below.
• Assemble hardware with nuts to the inside.
• Assemble all braces to the inside of legs with flange facing up.
• After mounting scroll station to leg assembly, adjust legs so scroll station
is level and tighten all hardware securely.
8
9
6
2
Leg Stand Model 18500
Part No. 2615018500
Printed in China
