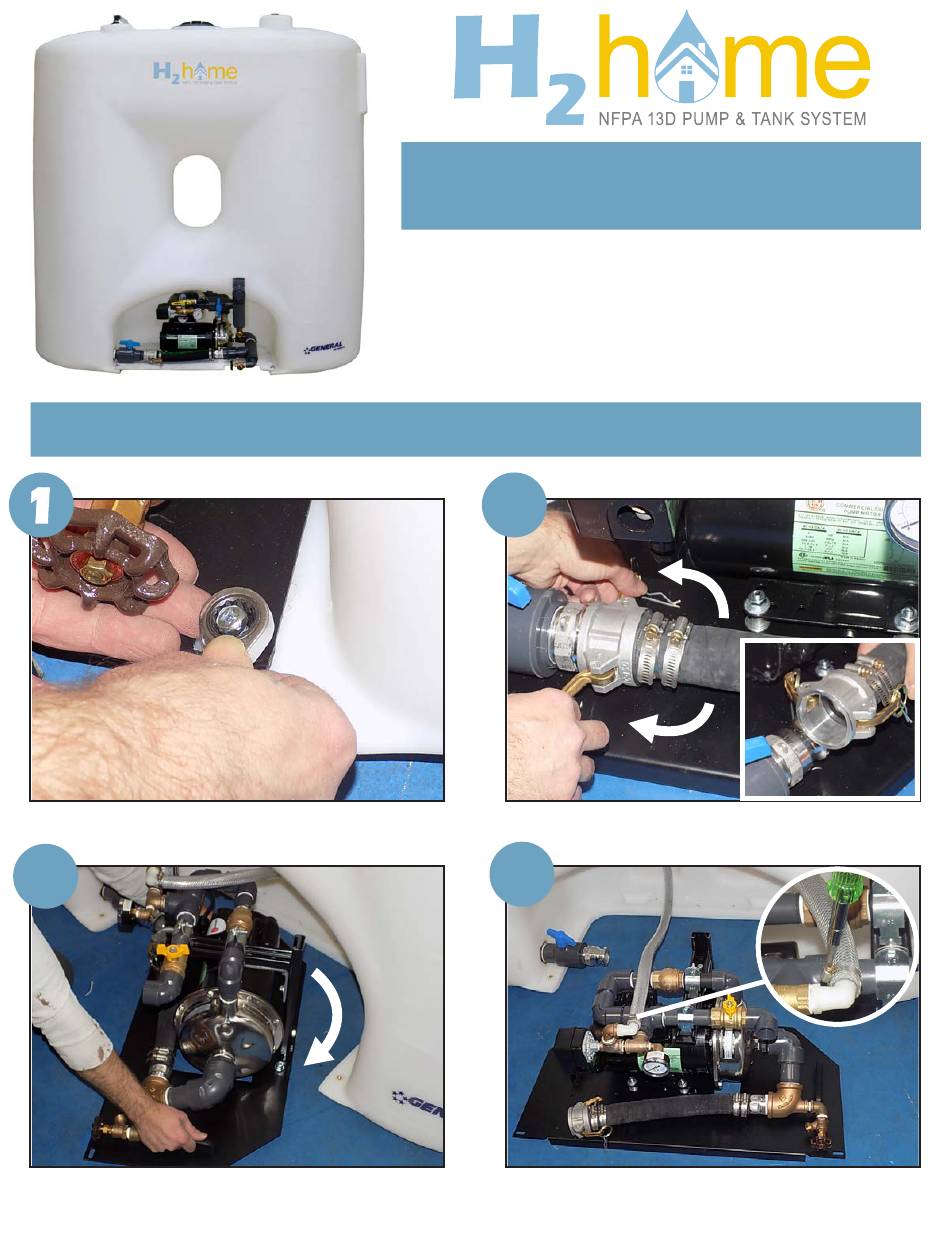

Remove the bolts on both sides of base plate.
3
Slide the right side of pump assembly out first using
the handles on the sides of the base plate.
PUMP ASSEMBLY REMOVAL &
INSTALLATION INSTRUCTIONS
The H2hOme pump assembly can be easily removed for
transporting and servicing the unit. The following instructions
describe how to remove / reinstall the pump assembly and
riser manifold kit. For full instructions regarding installation,
operation and maintenance procedures, please refer to the
H2hOme manual.
Pump Assembly Removal
2
Loosen clamps on cam fitting & disconnect hose.
4
Continue to pull the pump assembly out by the base
plate handles & disconnect the test hose.
TM
