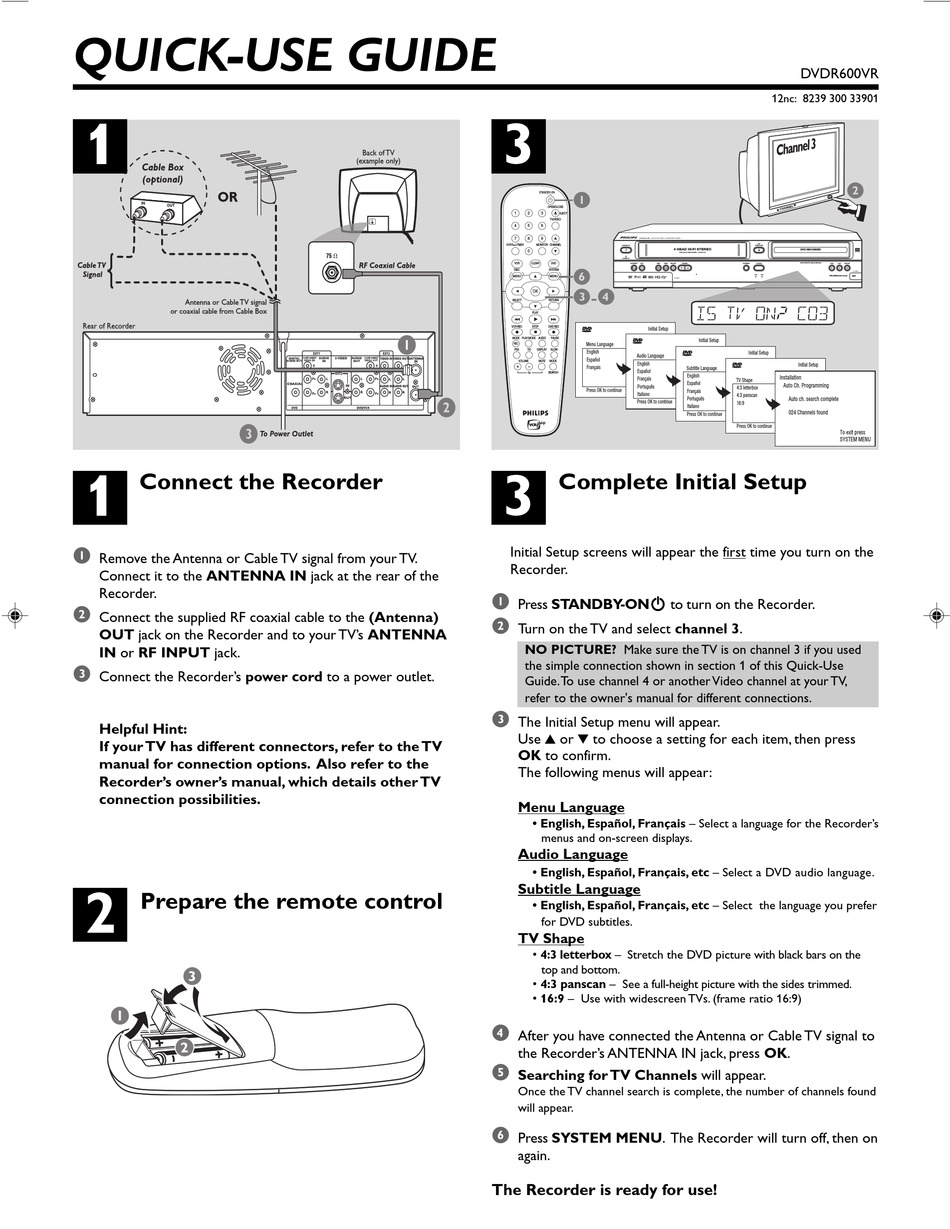

QUICK-USE GUIDE
1
Antenna or Cable TV signal
or coaxial cable from Cable Box
Connect the Recorder
1
1
Remove the Antenna or Cable TV signal from your TV.
Connect it to the ANTENNA IN jack at the rear of the
Recorder.
2
Connect the supplied RF coaxial cable to the (Antenna)
OUT jack on the Recorder and to your TV's ANTENNA
IN or RF INPUT jack.
3
Connect the Recorder's power cord to a power outlet.
Helpful Hint:
If your TV has different connectors, refer to the TV
manual for connection options. Also refer to the
Recorder's owner's manual, which details other TV
connection possibilities.
2

Prepare the remote control

3
1
2
To Power Outlet
3
1
STANDBY-ON
OPEN/CLOSE
1 2 3
EJECT
TV/VIDEO
4 5 6
7 8 9
VCR Plus+/TIMER MONITOR CHANNEL
STANDBY-ON
0
POWER ON
VCR CLEAR DVD STOP/EJECT PLAY
6
DISC SYSTEM
MENU MENU
3-4
OK
SELECT RETURN
PLAY
VCR REC STOP DVD REC ~
MODE PLAY MODE AUDIO PAUSE
~
Menu Language
REC
FSS T/C DISPLAY SLOW
English
Audio Language
Español
VOLUME MUTE MODE
English
Français
Español
SEARCH
TV
Français
Português
Press OK to continue
Italiano
Press OK to continue
Complete Initial Setup
3
Initial Setup screens will appear the first time you turn on the
Recorder.
1
Press STANDBY-ON2
2
Turn on the TV and select channel 3.
NO PICTURE? Make sure the TV is on channel 3 if you used
the simple connection shown in section 1 of this Quick-Use
Guide. To use channel 4 or another Video channel at your TV,
refer to the owner's manual for different connections.
3
The Initial Setup menu will appear.
Use 3 or 4 to choose a setting for each item, then press
OK to confirm.
The following menus will appear:
Menu Language
• English, Español, Français – Select a language for the Recorder's
menus and on-screen displays.
Audio Language
• English, Español, Français, etc – Select a DVD audio language.
Subtitle Language
• English, Español, Français, etc – Select the language you prefer
for DVD subtitles.
TV Shape
• 4:3 letterbox – Stretch the DVD picture with black bars on the
top and bottom.
• 4:3 panscan – See a full-height picture with the sides trimmed.
• 16:9 – Use with widescreen TVs. (frame ratio 16:9)
4
After you have connected the Antenna or Cable TV signal to
the Recorder's ANTENNA IN jack, press OK.
5
Searching for TV Channels will appear.
Once the TV channel search is complete, the number of channels found
will appear.
6
Press SYSTEM MENU. The Recorder will turn off, then on
again.
The Recorder is ready for use!
DVDR600VR
12nc: 8239 300 33901
DVD
OPEN/CLOSE
4 HEAD HI-FI STEREO
DVD RECORDER
ONE TOUCH RECORDING · LONG PLAY
REW F.FWD RECORD CHANNEL D.DUBBING SOURCE DVD+RW/+R RECORDING
IR VCR DVD
IS TV ON? CO3
Initial Setup
Initial Setup
~
Initial Setup
~
Initial Setup
Subtitle Language
English
Installation
TV Shape
Español
Auto Ch. Programming
4:3 letterbox
Français
4:3 panscan
Português Auto ch. search complete
16:9
Italiano
024 Channels found
Press OK to continue
Press OK to continue
2 2 to turn on the Recorder. 2 2
2
STOP PLAY RECORD
PROGRESSIVE SCAN DV
To exit press
SYSTEM MENU
