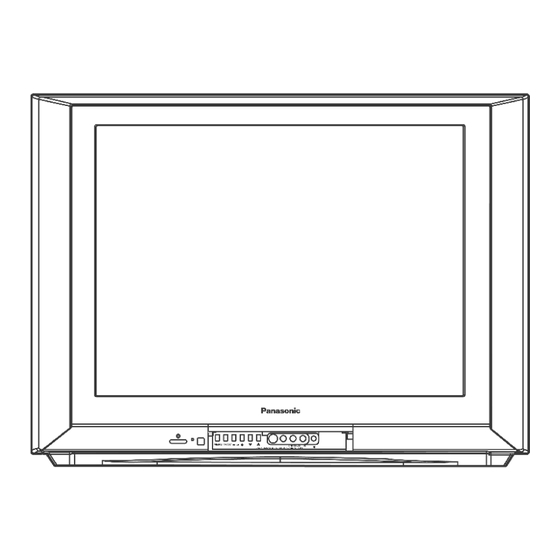

TX-29E220T Specifications are subject to change without notice. Mass and dimensions shown are approximate. CONTENTS Page Page 1 Safety Precautions 4.4. White Balance (Market Mode CHK 4) 1.1. General Guide 4.5. Adjustment of CRT VRS 1.2. Leakage Current Cold Check 5 Conductor Views 1.3.
TX-29E220T 1 Safety Precautions 1.3. Leakage Current Hot Check (See Fig. 1) 1.1. General Guide 1. Plug the AC cord directly into the AC outlet. Do not use an 1. It is advisable to insert an isolation transformer in the AC isolation transformer for this check.
TX-29E220T 3 Market Mode Function Outline: MPU controls the functions switching for each ICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Market Mode. 1. Selection of Market Mode Adjust the VOLUME “zero” and set OFF TIMER Button to 30 min. Then, simultaneously press the RECALL Button on the remote control and the VOLUME DOWN button - the TV set.
TX-29E220T 4 Adjustment Procedure 4.1. Adjustment Procedure 4.1.1. +B Voltage 4.1.3. High Voltage Item / preparation Item / preparation 1. Operate the TV set. 1. Receive the crosshatch pattern. 2. Set control as follows : 2. Set to 0 Beam.
TX-29E220T 4.2. Colour Purity 4.3. Convergence 1. Set Bright and Contrast controls to their maximum 1. Apply a crosshatch pattern signal and set Contrast control positions. to the maximum position. 2. Operate the TV set over 60 minutes. 2. Adjust Bright control to obtain a clear pattern.
TX-29E220T 4.4. White Balance (Market Mode CHK 4) Preparation 1. Receive a colour bar signal with colour “OFF”, and operate Note: the TV set for more than 30 minutes. Write down the original value for each address adjustment before adjusting anything.
TX-29E220T 4.5. Adjustment of CRT VRS NOTE: FOR FLAT CRT ONLY PREPARATION 1. Set DY to CRT not to tilt up and down left and right deflection. 2. Set CY to CRT and set CY magnet primarily. Pur Mg : Set Pur Mg that 2 magnets are (top position) VRS Mag : Set VRS Mg that 2 magnets are (horizontal position) only 21”, 25”...
TX-29E220T 8.1. Replacement Parts List Ref. Part No. Part Name & Description Remarks C125 ECJ2VC1H331J C 330PF, J, 50V Ref. Part No. Part Name & Description Remarks C126 ECJ2VC1H561J C 560PF, J, 50V C130 ECJ2VB1H103K C 0.01UF, K, 50V A68LZU185X-D...
Page 38
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C1719 ECJ1VB1H103K C 0.01UF, K, 50V C2060 ECJ2VF1C334Z C 0.33UF, Z, 16V C1720 ECJ1VB1H103K C 0.01UF, K, 50V C2061 ECJ2VF1C334Z C 0.33UF, Z, 16V...
Page 39
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C361 ECJ2VC1H180J C 18PF, J, 50V C826 ECKW3D681KBP C 680PF, K, 2KV C362 ECJ2VF1H104Z C 0.1UF, Z, 50V C827 ECQM4103RJZ P 0.01UF, 400V...
Page 40
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D3201 MTZJ8.2C ZENER DIODE IC1105 C0EBJ0000288 D3202 MTZJ8.2C ZENER DIODE IC1106 C0EBE0000388 D3204 B0BC022A0007 DIODE IC1108 C0ZBZ0000893 D3205 MTZJ8.2C ZENER DIODE IC1501 C1AB00002065...
Page 41
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks L810 J0JKB0000034 EMI FILTER R101 ERJ6GEYJ101 M 100OHM,J,1/10W L838 EXC3BB102H CHIP BEAD CORE R1010 ERJ6GEYJ472 M 4.7KOHM,J,1/10W L865 EXCELSA35B BEAD CORE R1011 ERJ6GEYJ473...
Page 42
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1167 ERJ6GEYJ101 M 100OHM,J,1/10W R1516 ERJ3GEYJ101 M 100OHM,J,1/16W R1168 ERJ6GEYJ101 M 100OHM,J,1/10W R1519 ERJ6GEYJ101 M 100OHM,J,1/10W R1169 ERJ6GEYJ101 M 100OHM,J,1/10W R1522 ERJ6ENF75R0 M 75OHM, 1/10W...
Page 43
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1751 ERJ3GEYJ244 F 240KOHM,J, 1/16W R3027 ERJ6GEY0R00 M 0OHM,J,1/10W R1752 ERJ3GEYJ560 M 56OHM,J,1/16W R3030 ERJ6GEYJ103 M 10KOHM,J,1/10W R1755 ERJ3GEYJ471 M 470OHM,J,1/16W R3031 ERJ6GEYJ103...
Page 44
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R3189 ERJ6GEYJ184 M 180KOHM,J,1/10W R4804 ERJ6GEYJ272 M 2.7KOHM,J,1/10W R3190 ERJ6GEYJ101 M 100OHM,J,1/10W R4805 ERJ6ENF1331 M1.33KOHM, 1/10W R3191 ERJ6GEYJ101 M 100OHM,J,1/10W R4806 ERJ6ENF3320 M 332OHM, 1/10W...
Page 45
TX-29E220T Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R869 ERJ6GEYJ152 M 1.5KOHM,J,1/10W ERJ6GEY0R00 M 0OHM,J,1/10W R871 ERJ6GEY0R00 M 0OHM,J,1/10W ERJ6GEY0R00 M 0OHM,J,1/10W R882 ERJ6GEYJ153 M 15KOHM,J,1/10W ERJ6GEY0R00 M 0OHM,J,1/10W R883 ERJ6GEYJ473...
