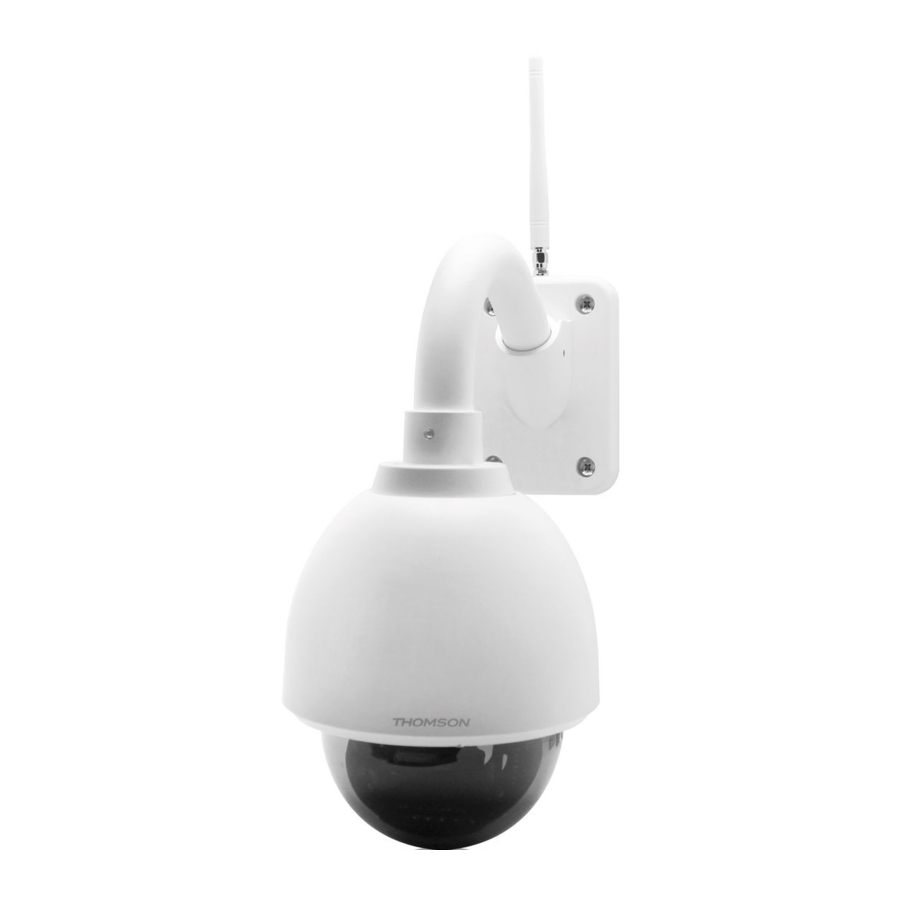

- Page 1 960p WiFi PTZ dome IP camera 923W DSC - PLAY ref. 512393 www.thomsonbox.eu www.thomsonsecurity.eu...
-
Page 2: Table Of Contents
2.3 - Example: programming an email alert to be sent when motion is detected E - uSiNg ThE prOduCT ON A SMArTphONE F - uSiNg ThE prOduCT ON A COMpuTEr ViA ThE ThOMViEW SOFTWArE g - uSiNg ThE prOduCT WiTh A ThOMSON NETWOrK VidEO rECOrdEr... - Page 3 h - uSiNg ThE prOduCT WiTh A ThOMBOX 1 - pairiNg modE 2 - usagE 3 - takiNg aNd storiNg photos oN thE sErVEr i - rESET J - FAQ K - TEChNiCAL ANd LEgAL iNFOrMATiON 1 - gENEral charactEristics 2 - warraNty 3 - hElp aNd adVicE 4 - product rEturNs/aftEr-salEs sErVicE...
-
Page 5: A - Safety Instructions
HD 960p WiFi pTZ Dome ip Camera A - SAFETy iNSTruCTiONS 1 - OPERATING PRECAUTIONS 3 - RECYCLING • The cameras must not be installed where the This logo denotes that devices which are lens filter may be vulnerable to scratching and no longer in use must not be disposed dirt. of as household waste as they are likely • The camera connection is not to contain hazardous substances which designed for outside installation and should not... -
Page 6: B - Product Description
HD 960p WiFi pTZ Dome ip Camera B - prOduCT dESCripTiON 1 - CONTENTS OF THE KIT 1 Camera 5 Antenna 2 Mains adapter 6 RJ45 cable for wired connection to the network 3 Wall plugs for mounting the camera 7 CD-ROM containing the ThomView software 4 Screw for attaching the camera 2 - CAMERA front view 1 Lens 6 Audio output (red) infrared lights for night vision 7 Wired input/output (1,2 inputs and 3,4 outputs) 3 Antenna socket... -
Page 7: C - Installation
HD 960p WiFi pTZ Dome ip Camera C - iNSTALLATiON 1 - MOUNTING AND INSTALLING THE CAMERA • Mount the camera using suitable screws and wall plugs for the type of surface (the screws and plugs supplied are suitable for solid walls). • Make sure the camera is properly secured to prevent it from falling. 2 - CONNECTING THE CAMERA • Connect the network cable to a modem/router. In most cases, the camera is immediately detected by the modem/router which gives it Internet access. Do not connect your camera to your computer. This will not provide it with access to the internet. camera Modem/router connected to the internet Mains adapter Note: a wired connection is compulsory when starting up, even if you wish to use a WiFi connection later. -
Page 8: D - Configuration
HD 960p WiFi pTZ Dome ip Camera d - CONFigurATiON 1 - ACCESS TO CAMERA CONFIGURATION • Insert the installation CD provided into a reader and run the IP Camera Search Tool program: This will detect your camera on the network and show its IP address. When you have finished changing the username and password, you will be asked to log back in. 2 - ACCESS TO ALL THE SETTINGS 2.1 - live video Once you have logged in with your new username and password, the camera feed will be displayed: • Double-click on its name to open the camera... -
Page 9: Settings
HD 960p WiFi pTZ Dome ip Camera d - CONFigurATiON 12 Take a video of the camera image on your System: update, backup and restore current computer configuration and reboot the camera 13 Display the image full screen (double- 2.3 - Example: programming an email alert to be click on image to revert) sent when motion is detected 2.2 - settings To program an alert to be sent when motion is detected, you need 2 email addresses: the address • You can access your camera settings by of the sender which will be used by the camera,... - Page 10 HD 960p WiFi pTZ Dome ip Camera d - CONFigurATiON Connection required: indicates whether Tick the 'Activer [Enable]' box to enable connection is compulsory (authentication) motion detection to send an email. In our example using gmail: Sensitivity: At the 'haute [high]' setting, Yes (in other words: you cannot send an even the smallest movements on the email via gmail if you are not logged into your screen will set off an alert At the 'basse [low]' account). setting, only large subjects will set off an alert SMTP user name: Name you need to enter (for example: a human being, but not a dead to connect to the mailbox which will send leaf in the camera's field of vision). Adjust to the alerts. In our example using gmail, this suit the camera's field of vision and the desired is the sender address: sender-address@ objective. gmail.com Pause trigger: pause between alerts if SMTP password: The password used to motion is detected over an extended period log into sender-address@gmail.com in our Tick 'envoyer e-mail [send email]' on alert example Detection zone: when you click this button,...
-
Page 11: E - Using The Product On A Smartphone
HD 960p WiFi pTZ Dome ip Camera E - uSiNg ThE prOduCT ON A SMArTphONE The free application used to control, configure and Many of the configuration options can be accessed view the cameras remotely on your smartphone by clicking on your camera video feed: is available from the Appstore and Google Play. Download, install and run the 'ThomView' app. Although we have described how the Android app works here, the same applies to the iPhone. -
Page 12: F - Using The Product On A Computer Via The Thomview Software
HD 960p WiFi pTZ Dome ip Camera F - uSiNg ThE prOduCT ON A COMpuTEr ViA ThE ThOMViEW SOFTWArE You can only configure the camera and image Verrouillage du logiciel, [Lock software] to display as described in paragraph D - 1 - ACCESS continue broadcasting a video but disable TO CAMERA CONFIGURATION if your computer changing cameras and current settings is on the same network as your camera. 2 Historique de tous les évènements [Events The ThomView software on the CD provides an easy log] for all cameras registered to the way to connect to the camera over the internet and... -
Page 13: G - Using The Product With A Thomson Network Video Recorder
HD 960p WiFi pTZ Dome ip Camera g - uSiNg ThE prOduCT WiTh A ThOMSON NETWOrK VidEO rECOrdEr Your camera is compatible with the ONVIF protocol • When you have entered all the information into and can be paired with a network video recorder. the recorder, add the camera in the same way • Connect your camera to the network or one as you would with the original cameras. After... -
Page 14: Usage
HD 960p WiFi pTZ Dome ip Camera h - uSiNg ThE prOduCT WiTh A ThOMBOX Once the Thombox has finished searching, click on 2 - USAGE the X to close the window. Once synchronisation is complete, go to the STEP 3: Automatic configuration «Cameras» section of the Thombox interface Optional: If you have already changed the username and password for your camera before pairing (by default, «admin»... -
Page 15: I - Reset
HD 960p WiFi pTZ Dome ip Camera h - uSiNg ThE prOduCT WiTh A ThOMBOX Example: When the sensor for the desktop door opens, take a photo See our website, www.thomsonbox.eu, for more information. i - rESET If there is a problem or the login details have been lost, the camera can be reset to its default settings by pressing the Reset button on the cable on the back of the camera for 10 seconds. Settings Default value Username admin Password (none) Time Zone GMT+1 Ports http: 88 https: 443 ONVIF: 888 ftp: 21 Plug and play access Enabled Motion detection Disabled Main video stream 960p @ 30 frames per second Secondary video stream Night vision... -
Page 16: J - Faq
HD 960p WiFi pTZ Dome ip Camera J - FAQ If your problem is not covered below, please contact our technical support department. Symptoms Possible causes Solutions Network problem Check your connections. Temporarily connect using the network cable if the camera is Cannot connect to camera connected over WiFi over local area network (e.g. IP Network configuration problem Check your camera's network Cameras Search Tool) connection settings. Reset your camera if it is no longer accessible. Network configuration problem Check your device settings (box, router) The camera feed cannot be Incorrect video settings... -
Page 17: K - Technical And Legal Information
HD 960p WiFi pTZ Dome ip Camera K - TEChNiCAL ANd LEgAL iNFOrMATiON 1 - GENERAL CHARACTERISTICS Camera 12V DC/2A Power supply Ethernet 10/100, audio-MDIX, RJ45 Network interface Wireless network interface IEE 802.11b/g/n ’’ CmoS Optical sensor 0 lux Minimum luminous intensity Manual or automatic (dusk-to-dawn sensor) Night vision Range: 20m f:3.7mm ~ 14.8m, F:1.6, angle of view 70°... -
Page 18: Warranty
Complies with the 1999/5/EC Directive and its of our technicians can diagnose the source of compliance has been assessed in accordance with the problem, as it will probably be the result applicable standards: of a setting that is incorrect or an installation EN 60950-1:2006 + A11:2009 + A1:2010 + that is not to specification. If the problem is A12:2011+A2:2013 caused by the product itself, the technician EN 62311:2008 will give you an RMA number so that you can EN 301 489-1 V1.9.2 return the unit to the shop. Without this RMA EN 301 489-17 V2.2.1 number, the shop may refuse to exchange EN 300 328 V1.8.1 your product. Chambray les Tours, Alexandre Chaverot 15/09/2015 Visit our website to find out more about our Thomson range at... - Page 19 is a TECHNICOLOR S.A. brand used under licence by: Avidsen France S.A.S - 32, rue Augustin Fresnel 37170 CHAMBRAY LES TOURS - France...
