Summary of Contents for Philips HTS6100/55
- Page 1 Register your product and get support at www.philips.com/welcome DVD Home Theatre System ES_LA DVD Home Theatre System BT_BR DVD Home Theatre System HTS6100...
- Page 2 País de Origen: de Serie: LEA CUICADOSAMENTE ESTE INSTRUCTIVO AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
- Page 3 “Evite o uso prolongado do aparelho com volume superior a 85 decibéis pois isto poderá prejudicar a sua audição.” Nível de Exemplos Decibéis Biblioteca silenciosa, sussurros leves Sala de estar, refrigerador, quarto longe do trânsito Trânsito leve, conversação normal, escritório silencioso Ar condicionado a uma distância de 6 m, máquina de costura Aspirador de pó, secador de cabelo,...
- Page 4 Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc.
-
Page 5: Table Of Contents
Contents 1 Important Safety and important notice 2 Your product Features highlight Product overview 3 Connect Place the unit Connect video cables Connect subwoofer Connect radio antenna Connect audio cables/other devices Mount the DVD Home Theatre unit 4 Get started Prepare the remote control Find the correct viewing channel Start Ambisound setup... -
Page 6: Important
1 Important Safety and important notice Warning! Risk of fi re or electric shock! • Ensure that air can circulate freely through the ventilation holes on this unit. Allow at least 5~10 cm clearance around the unit. • Never expose this unit to direct sunlight, naked fl... -
Page 7: Your Product

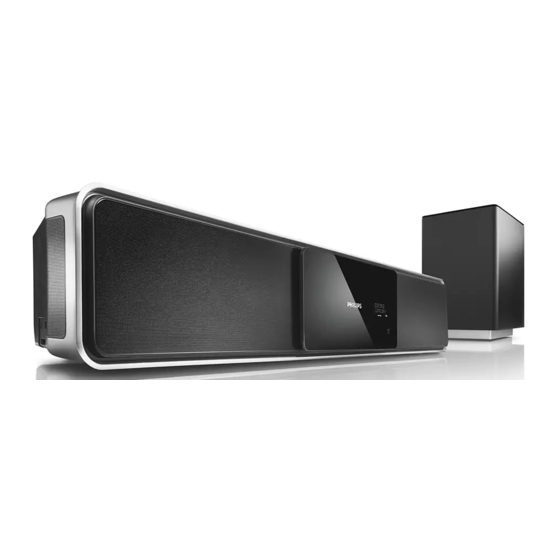

2 Your product Congratulations on your purchase, and welcome to Philips! To fully benefi t from the support that Philips offers, register your product at www.philips.com/welcome. The all-in-one SoundBar DVD Home Theatre is designed to complement your home perfectly. Enjoy the SoundBar DVD Home Theatre with... -
Page 8: Product Overview
Product overview Remote control • Turn on this unit or turn off to standby mode. • Press and hold to turn off this unit and all the HDMI CEC compliant TV/ devices (for EasyLink control only). Z (Open/Close) • Open or close the disc compartment. Source buttons •... - Page 9 x (Stop) • Stop disc play. • RADIO: erase the current preset radio station. TREBLE / BASS • Switch to treble or bass mode. Then press VOL +- to set its level setting. AUDIO SYNC • Select an audio language/channel. •...
-
Page 10: Main Unit
Main unit MP3 LINK STANDBY-ON • Turn on this unit or turn off to standby mode. • Press and hold to turn on this unit from a low power standby mode. SOURCE • Select a play media: DISC, USB, RADIO FM, RADIO AM/MW, DIGITAL INPUT, AUX1 INPUT, AUX2 INPUT, AUX3 INPUT or MP3 LINK. -
Page 11: Connect
Place the subwoofer at the corner of the room or at least one metre away from the Note • You may purchase a separate table top stand that can support both your Philips Plasma/LCD TV and this DVD Home Theatre unit from the nearest Philips retailers. -
Page 12: Connect Video Cables
Connect video cables This section describes how to connect this DVD Home Theatre unit to your TV so to enable viewing of disc play. Select the best video connection that your TV can support. • Option 1: Connect to HDMI socket (for a HDMI, DVI or HDCP-compliant TV). - Page 13 Option 1: Connect to HDMI socket HDMI OUT HDMI IN Connect a HDMI cable (supplied) from the HDMI OUT on this unit to the HDMI IN socket on your TV. Note • The HDMI connector is only compatible with HDMI compliant TVs and DVI-TVs.
-
Page 14: Connect Subwoofer
Option 3: Connect to Video (CVBS) socket Connect a composite video cable (supplied) from the VIDEO OUT socket on this unit to the video input socket on your TV. Tips • The video input socket on your TV may be labelled as A/V IN, VIDEO IN, COMPOSITE or BASEBAND. -
Page 15: Connect Radio Antenna
Connect radio antenna Stand the AM/MW loop antenna (supplied) upright to fi x its claw into the slot. Connect the AM/MW loop antenna to the AM/MW socket. Then place the AM/MW loop antenna on a shelf, or attach it to a stand or wall. - Page 16 Connect audio from cable box/ recorder/game console You can choose to connect to analogue or digital socket depending on the device capabilities. Connect to analogue sockets Connect an audio cable (not supplied) from the AUDIO IN-AUX2 or AUX3 sockets on the subwoofer to the AUDIO OUT sockets on the device.
-
Page 17: Mount The Dvd Home Theatre Unit
Connect portable media player Connect a 3.5mm stereo audio cable (supplied) from the MP3 LINK socket on this unit to the phone socket on your portable media player (such as MP3 player). Note • To listen to the audio output from this connection, press AUX/DI /MP3 LINK repeatedly until ‘MP3 LINK’... - Page 18 Position the supplied bracket on the wall, drill the screw holes and insert the rubber wall plugs (not supplied) into the holes. Tips • To mount this DVD Home Theatre unit below your TV, leave at least 10cm (4 inches) of space between the TV and the bracket.
-
Page 19: Get Started
4 Get started Prepare the remote control Push to open the battery compartment cover. Insert two batteries type R03 or AAA. Match the indications (+-) inside the battery compartment. Close the cover. Note • If you are not going to use the remote control for a long time, remove the batteries. -
Page 20: Find The Correct Viewing Channel
Find the correct viewing channel Note • Before you start, remove the door stop tag on top of the disc compartment door. Press 2 to turn on the DVD Home Theatre unit. Press DISC to switch to disc mode Turn on the TV and switch it to the correct video-in channel. - Page 21 Press B to continue. [ Room Acoustics ] menu is displayed. Room Acoustics Please select the type of walls that surround your room: Hard (Concrete, wood) Soft (Curtains, open space) Back Change Select the condition of the room, then press B. [ Room Placement ] menu is displayed.
-
Page 22: Turn On Progressive Scan
Turn on Progressive Scan If you connect this unit to TV with the component video connection (see chapter ‘Connect video cables - Option 2: Connect to component video jack’ for details), you can turn on the progressive scan output if your TV supports progressive scan. -
Page 23: Activate Easylink Control
• To enable one touch play function, a video disc must be placed in the disc compartment before operation. • Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. Map the audio inputs to the connected devices Note •... -
Page 24: Select A Play Source
Select [ OK ] in the menu, then press OK to start scanning of devices. Once complete, audio input mapping menu is displayed. Audio Input Mapping AUX1 Input AUX2 Input Other (non-HDMI) AUX3 Input Digital Input • For example, if your TV audio is connected to the AUX IN-AUX 1 sockets on this unit, select [ AUX1 Input ] and map with the TV (brand... -
Page 25: Play
5 Play Play from disc Playable discs DVD Video • Region 4 (Latin America) DVD±RW (DVD Rewritable) DVD±R (DVD Recordable) DVD+R DL (DVD+R Double Layer) CD-RW (CD-Rewritable) ReWritable CD-R (CD-Recordable) Recordable Audio CD (Compact Disc Digital Audio) Video CD • Formats 1.0, 1.1, 2.0 Super Video CD Note... -
Page 26: Play Video
Play video Note • For video disc, playback always resumes from the point where it was last stopped. To start playback from the beginning, press í while the message is displayed. Control a title Play a title. Use the remote control to control the title. Button Action Pause/ resume play. -
Page 27: Sync Audio Output With Video Play
Access DVD menu Press DISC to access disc main menu. Select a play option, then press OK. • In some menus, press number buttons to input your selection. • To return to the title menu during playback, press TITLE. Access VCD menu The PBC (Playback Control) for VCD is turned on by default in the factory. - Page 28 Quick skip play to a specifi c time During playback, press INFO. The disc status menu is displayed. Select the current elapsed playing time in the menu, then press OK. • [ TT Time ] (title time) • [ CH Time ] (chapter time) •...
-
Page 29: Play Music
Play music Note • For some commercial audio disc, playback may resume from the point where it was last stopped. To start playback from fi rst track, press í. Control a track Play a track. Use the remote control to control the track. -
Page 30: Play Photo
Play photo Play photos as slideshow This unit can play JPEG photos (fi les with .jpeg or .jpg extensions). Insert a disc or USB that contains the JPEG photos. Press DISC or USB. For a Kodak disc, the slideshow begins automatically. -
Page 31: Play From Usb Device
Play musical slideshow Play MP3/WMA music fi les and JPEG photo fi les simultaneously to create musical slideshow. The MP3/WMA and JPEG fi les must be stored on the same disc or USB device. Play MP3/WMA music. Navigate to the photo folder/album and press u to start slideshow play. -
Page 32: Play From Portable Media Player
Play from portable media player Simply connect your portable media player (e.g. MP3 player) to this unit to enjoy superb sound quality from your music collections. MP3 LINK Connect a 3.5mm stereo audio cable (supplied) from the MP3 LINK socket on this unit to the ‘headphone’... -
Page 33: Listen To Radio
First time tuning The fi rst time when you access ‘RADIO’ mode, follow the instructions to install the radio stations. Press RADIO. ’AUTO INSTALL ... PRESS PLAY’ is displayed. Press u. All detected radio stations are stored. Once complete, it tunes to the fi rst preset radio station. - Page 34 Search and store radio stations individually Press RADIO repeatedly to select ‘FM’ or ‘AM/MW’ band. Press m M. The radio frequency indication starts to change until a radio station is detected. Repeat step 2 until you tune to the radio station you wish to store.
-
Page 35: Adjust Sound
6 Adjust sound Control the volume Press VOL +- to increase or decrease the volume level. To mute the volume, press H. • To restore the volume, press H again • or press the volume button. Adjust Bass/Treble Press BASS / TREBLE. Press VOL +-repeatedly to set the level for low (BASS) or high (TREBLE) tone. -
Page 36: Select A Preset Sound Effect
Select a preset sound effect Press SOUND repeatedly to select a sound effect that most suits the video or music you play. Video / Descriptions Music / ACTION / Enhanced low and high ROCK / range for great sounding movie effects and atmosphere. -
Page 37: Adjust Settings
7 Adjust settings This section describes the various setting options of this unit. Symbol Options [ General Setup ] [ Audio Setup ] [ Video Setup ] [ Preference Setup ] General setup Press OPTIONS. [ General Setup ] menu is displayed. Press B. - Page 38 TV/devices before you can enjoy the EasyLink controls. See your TVs/devices manual for details. • Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. [ Disc Lock ] Set play restriction for a specifi c discs.
-
Page 39: Audio Setup
[ DivX(R) VOD Code ] Display the DivX® registration code. Tips • Enter this unit’s DivX registration code when you rent or purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered. -
Page 40: Video Setup
Tips • See chapter ‘Get Started - Start Ambisound setup’ for detailed information. [ HDMI Audio ] When you connect this unit and TV with HDMI cable, select the audio output setting for this connection. • [ On ] – the sound is output through both your TV and this speaker system. - Page 41 [ TV Type ] Change this setting only if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country. • [ PAL ] – for PAL-system TV. • [ NTSC ] – for NTSC-system TV. •...
-
Page 42: Preference Setup
Note • If the setting is not compatible with your TV, a blank screen appears. Wait for 15 seconds for auto recover or press HDMI repeatedly until the picture appears. [ Closed Caption ] Turn on or off display captions. •... - Page 43 [ Audio ] Select the default audio language for DVDs. [ Subtitle ] Select the default subtitle language for DVDs. [ Disc Menu ] Select the menu language for DVDs. Note • If the language you have set is not available on the disc, the disc uses its own default language.
- Page 44 • This information is required when you want to fi nd out if a newest software version is available at the Philips website that you may download and install on this unit. [ Default ] Reset all the settings of this unit to factory...
-
Page 45: Additional Information
Philips provides software upgrades to ensure that this unit is compatible with the newest formats. To check for updates, compare the current software version of this unit with the latest software version available at the Philips website. Press OPTIONS, . Preference Setup Disc Menu Parental... -
Page 46: Specifi Cations
Specifi cations Note • Specifi cation and design are subject to change without notice. Accessories supplied • Quick Start Guide • Remote control and batteries • Composite video cable (yellow) • HDMI cable • 3.5mm stereo audio cable • Power cable •... -
Page 47: Troubleshooting
If you encounter problems when using this unit, check the following points before requesting service. If the problem remains unsolved, register your product and get support at www.philips.com/welcome. • Disconnect this unit from the power outlet for a few minutes, then connect again. - Page 48 Sound No sound. No sound on HDMI connection. No sound from TV programmes. Play DivX video fi les cannot be played. The aspect ratio of the screen is not aligned with the TV display setting. DivX subtitle are not displayed correctly. The contents of the USB fl...
-
Page 49: Glossary
10 Glossary Aspect ratio Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-defi nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.
