Barco Nio Color 2MP 23" User Manual

Option de
Hide thumbs Also See for Nio Color 2MP 23":
Table of Contents

Advertisement

Quick Links

Download this manual
Nio Color 2MP 23"
User Guide
MDNC-2123 (option DE)
K5902134/01
05/07/2017

Advertisement

Table of Contents
loading

Related Manuals for Barco Nio Color 2MP 23"

Summary of Contents for Barco Nio Color 2MP 23"

  • Page 1 Nio Color 2MP 23" User Guide MDNC-2123 (option DE) K5902134/01 05/07/2017...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com...

  • Page 3: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Welcome! ..................3 What’s in the box....................4 Product overview.
  • Page 4 Table of contents K5902134 NIO COLOR 2MP 23" 05/07/2017...

  • Page 5: Welcome

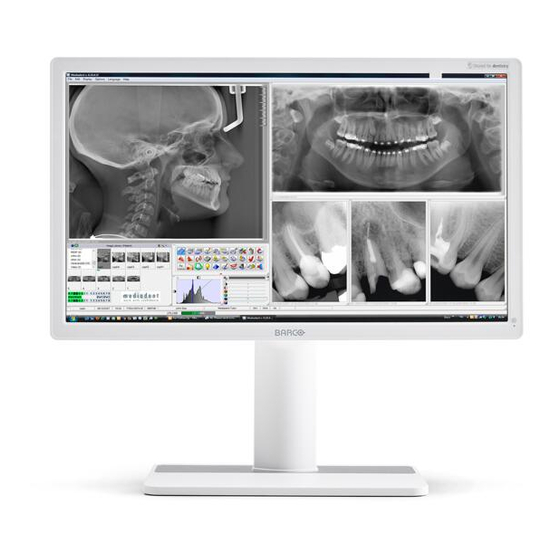

    Thank you for choosing this Nio Color 2MP 23" display! Barco’s Nio Color 2MP 23" display (MDNC-2123) has everything it takes for your dental practice. It brings sharp and bright images to your desktop in a stylish but cleanable design.

  • Page 6: What's In The Box

    1. Welcome! Gives extra advice about the described subject. What’s in the box Overview • 1x Nio Color 2MP 23" display • 1x stand base plate • 1x user guide • 1x system disc • 1x documentation disc • 1x video signal cable •...
  • Page 7 1. Welcome! 1. Stand base plate 2. Stand pillar 3. Jog dial - Push long (5 sec): to put display in standby mode - Push short: to exit standby mode to active the OSD menu to confirm selections in the OSD menu - Turn right to scroll up in the OSD menu to increase values in the OSD menu...
  • Page 8 1. Welcome! 1. Kensington security slot 2. USB-B 2.0 upstream connector 3. USB-A 2.0 downstream connectors (2x) 4. DisplayPort video input 5. Earth pin 6. DVI-D video input 7. 100 - 240 VAC mains power input (IEC C14) 8. VESA 100 mm mounting screw holes (4x) K5902134 NIO COLOR 2MP 23"...

  • Page 9: Installation

    2. Installation 2. INSTALLATION Read all the important safety information before installing and operating ARNING your monitor. Please refer to the dedicated chapter in this user guide. ARNING Sufficient expertise is required to install this equipment. All devices and complete setup must be tested before taking into operation. When the display is assembled in the medical system, take care of the fixa- AUTION tion of all cables, to avoid unwanted detachment.

  • Page 10: Cable Connections

    2. Installation Image 2-2 Cable connections To connect the cables 1. Connect one or more video source(s) to the corresponding video inputs. Use the appropriate video cable(s) to do this. The input source to be displayed can be selected in the OSD menus (see "Input source selection", page 14).

  • Page 11: Display Position Adjustment

    2. Installation Image 2-4 3. Connect the mains power input to a grounded power outlet. Image 2-5 4. If necessary for your application, earth the Nio Color 2MP 23" by connecting the earth pin to a grounded outlet by means of a yellow/green AWG18 wire (maximum admitted cable length according to national regulation requirements).

  • Page 12: Vesa-Mount Installation

    2. Installation Image 2-7 Although the display can be physically rotated to portrait position, this mode AUTION is functionally not supported. VESA-mount installation To mount the display on a VESA arm The display panel, standard attached to the stand, is compatible with the VESA 100 mm standard. 1.
  • Page 13 2. Installation 2. Use 4 M4 screws to attach the panel to a VESA approved arm. Please respect the following rule to select an appropriate screw length: = T + W + 6 mm = T + W + 14 mm Image 2-9 K5902134 NIO COLOR 2MP 23"...
  • Page 14 2. Installation K5902134 NIO COLOR 2MP 23" 05/07/2017...

  • Page 15: Operation

    To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white papers available at www.barco.com/healthcare.

  • Page 16: Standby Switching

    3. Operation Standby switching About • Push the jog dial long (5 sec) to put your display in standby mode • Push the jog dial short (1 sec) to exit standby mode and activate your display OSD menu use To open the OSD menu Shortly push the jog dial during normal operation to open the OSD menu.

  • Page 17: Luminance Adjustment

    DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications.

  • Page 18: White Point Selection

    1.8 or 2.2 respectively. • QAWeb: This setting is automatically selected when the display function is determined by Barco’s MediCal QAWeb application. Manually selecting the QAWeb display function is not recommended. The settings of the display must be adapted to suit the requirements of the visualization software.

  • Page 19: Osd Menu Language

    3. Operation 3.11 OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages avail- able for the OSD menu of your Nio Color 2MP 23". To select the language of the OSD menu 1.
  • Page 20 3. Operation K5902134 NIO COLOR 2MP 23" 05/07/2017...

  • Page 21: Maintenance

    The Nio Color 2MP 23" does not require any scheduled maintenance or calibration activities. We recom- mend to use QAWeb with the Barco default tests and frequencies to calibrate and maintain the display, or to return the display to a Barco approved maintenance organization. In any case of doubts, please contact Barco Healthcare.
  • Page 22 4. Maintenance • Alcohol/solvents at higher concentration > 70% • Strong alkalis lye, strong solvents • Acid • Detergents with fluoride • Detergents with ammonia at higher concentration > 1.6% • Detergents with abrasives • Steel wool • Sponge with abrasives •...

  • Page 23: Important Information

    5. Important information 5. IMPORTANT INFORMATION Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use.
  • Page 24 5. Important information Connections Any external connection with other peripherals must follow the requirements of clause 16 of IEC60601-1 3rd. Ed. or Table BBB.201 of IEC 60601-1-1 for the medical electrical systems. To maintain compliance with EMC Regulation, use only shielded interface cables for the connection to peripheral devices.

  • Page 25: Environmental Information

    Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 26: Biological Hazard And Returns

    Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environ- ment-friendly use period of electronic information products” of Chinese Mainland.

  • Page 27: Regulatory Information

    5. Important information Therefore use of this device in such environments is at the exclusive risk of Customer. In case this device is used where potential biological contamination cannot be excluded. Customer shall implement the decontamination process as defined in the latest edition of the ANSI/AAMI ST35 standard on each single failed Product that is returned for servicing, repair, reworking or failure investigation to Seller (or to the Authorized Service Provider).
  • Page 28 5. Important information Electromagnetic emissions The Nio Color 2MP 23" is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the Nio Color 2MP 23" should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
  • Page 29 5. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance Voltage dips, short Mains power quality < 5% U (> 95% dip in < 5% U (> 95% dip in interruptions and voltage ) for 0.5 cycle ) for 0.5 cycle should by that of a typical variations on power...
  • Page 30 5. Important information Immunity test Electromagnetic IEC 60601 Compliance level environment – Test levels guidance than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with symbol: At 80 MHz and 800 MHz, the higher frequency range applies. These guidelines may not apply in all situations.

  • Page 31: Explanation Of Symbols

    5. Important information These guidelines may not apply in all situations. Electromagnetic propagation is af- fected by absorption and reflection form structures, object and people. Explanation of symbols Symbols on the device On the device or power supply, you may find the following symbols (nonrestrictive list): Indicates compliance with Part 15 of the FCC rules (Class A or Class B) Indicates the device is approved according to the UL regulations Indicates the device is approved according to the UL regulations for Canada...
  • Page 32 5. Important information Indicates the DisplayPort connectors on the device Indicates the legal manufacturer Indicates the manufacturing date Indicates the temperature limitations for the device to safely operate within specs Indicates the device serial number Indicates the device part number or catalogue number Warning: dangerous voltage Caution Consult the operating instructions...

  • Page 33: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.

  • Page 34: Technical Specifications

    5. Important information © 2017 Barco NV all rights reserved. Patent information This product is covered under the following intellectual property rights: • European Patent 1 915 875 B1 • US Patent 7.166.829 B2 • US Patent 7.038.186 B2 Technical specifications...
  • Page 35 5. Important information Dimensions with stand (W 560 x 412~512 x 202 mm x H x D) Dimensions w/o stand (W 560 x 335 x 61 mm x H x D) Dimensions packaged (W 700 x 465 x 230 mm x H x D) Net weight with stand Option DE WP: 7.2 kg...
  • Page 36 QA software MediCal QAWeb Warranty Minimum 3 years, including 20,000 hours backlight warranty Please check the Barco Terms & Conditions for specific Warranty conditions. Operating temperature 0 °C to 40 °C (15 °C to 35 °C within specs) Storage temperature -20 °C to 60 °C...
