Identification; Specifications - Greenlee GATOR EK6IDLX Operation Manual

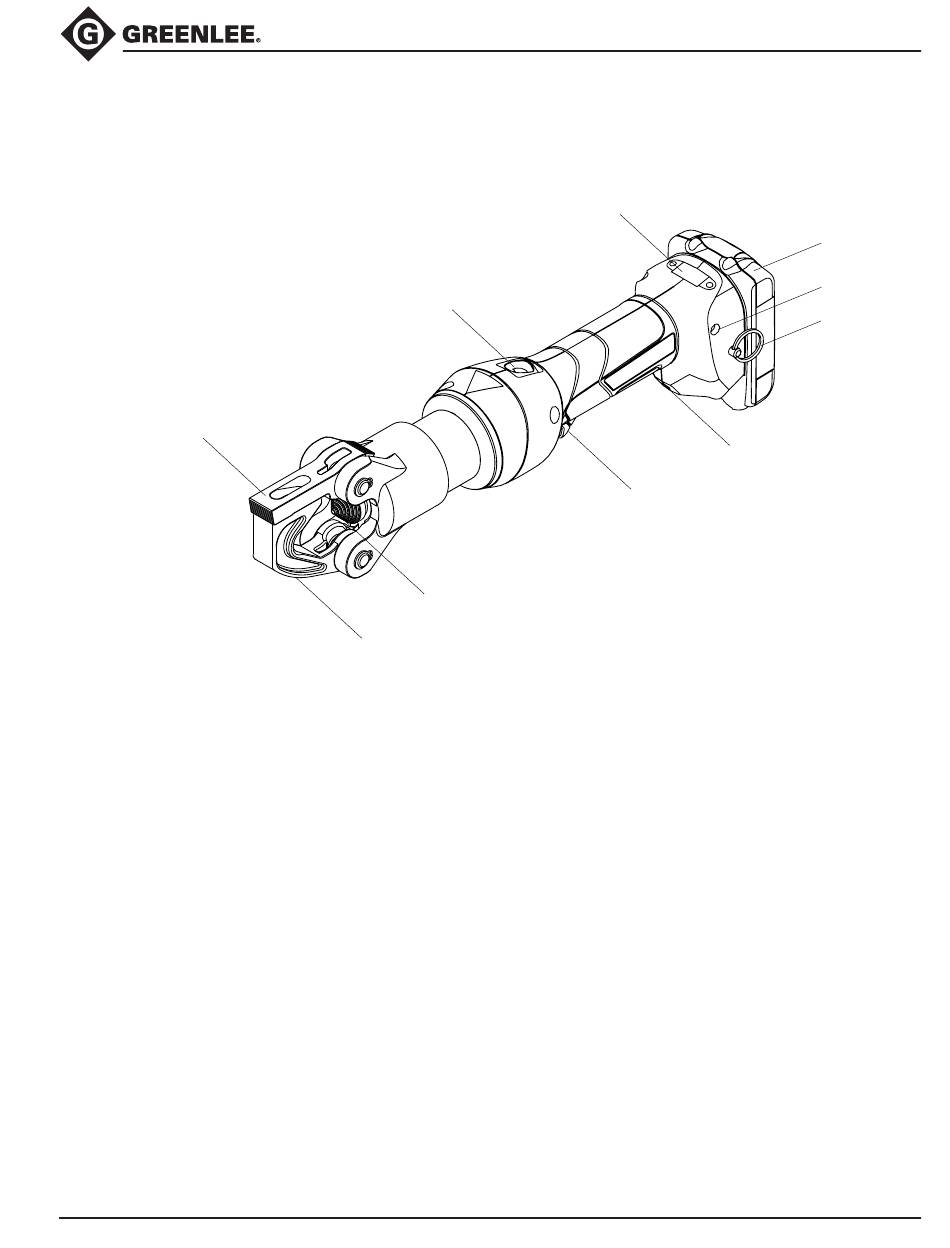

Identification

1. Indenter
2. Head
3. Latch
4. Retract Button
5. LCD Screen
6. Battery Cartridge
7. LED Indicator (red)
8. Lanyard Ring
9. LED Work Light (white)
10. Trigger
3

Specifications

Crimping Tool
Length........................................................................................................ 16.18" (411 mm)
Width ............................................................................................................. 2.95" (75 mm)
Depth ........................................................................................................... 4.92" (125 mm)
Weight ............................................................................................................. 6.4 lb (2.9 kg)
Crimping Force ...............................................................................................6 tons (53 kN)
Hydraulic Oil ......................................................... 52057878 biodegradable hydraulic fluid
Recommended Operating Temperature Range ...................5 °F to 122 °F (–15 °C to 50°C)
Crimping Capacities
Maximum Cable Size
Copper ......................................................................................................... 600 kcmil
Aluminum ..................................................................................................... 350 kcmil
Battery Charger ........................................................................ Read the instructions supplied
Battery Technology ........................................................................MAKITA
MAKITA is a registered trademark of Makita Corporation.
Greenlee Tools, Inc.
Dieless Battery-powered Crimping Tool
4
1
2
BL1815, BL1820, BL1830, BL1840, BL1850
5
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
5
9
10
with the battery charger
® ®
LXT Lithium ion
6
7
8
