Summary of Contents for Peachtree amp500
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS B Read these instructions – All the safety and operating instructions should be read before this product is operated. C Keep these instructions – The safety and operating instructions should be retained for future reference. D Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 3 S WARNING: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain readily operable. T The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”...
- Page 4 Introduction Back Panel Front Panel Troubleshooting Warranty and Repair Specifications (Rev. 09/2019)
- Page 5 Please take the time to read this manual and visit www.peachtreeaudio.com to register your amp500. We will extend the standard warranty if you do and your information will not be shared with anyone. We will only contact you with news that is relevant to your nova purchase! If you have additional questions or feedback please contact your reseller or Peachtree Audio directly.
-
Page 6: Back Panel
POWER switch OFF and removing the power cord from the AC INPUT. See the SPECIFICATIONS section for the the specific fuse values required for each amp500 model. Caution: using an improper fuse value may cause damage to the unit. Peachtree Audio accepts no responsibility for any damage caused by the use of improper fuse values. -

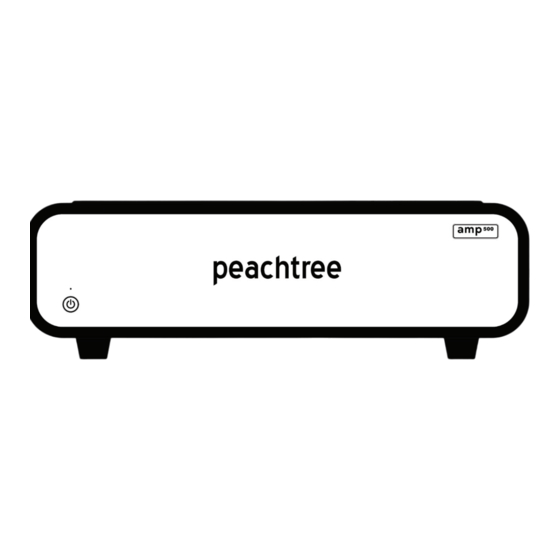

Page 7: Front Panel
Interested in the Green Movement? • The amp500 meets European RoHS standards for non-hazardous metals • The amp500 draws less than half a watt of power in standby mode • The internal power amplifier is set to minimize power consumption when head phones are used •... -
Page 8: Warranty And Repair
391-9337 to obtain a Return Authorization (RA) number prior to shipping the product. Any products received without an RA number may be misdirected and repair delayed. If a RA number is issued by Peachtree Audio, please ship the product using FedEx or UPS. Do not ship using a Postal Service. -
Page 9: Specifications
SPECIFICATIONS Compatible Speakers 2.5-16Ω Output Power (WPC, 8Ω | 4Ω, <1% THD+N, 500 l 700 AES17) Dynamic Range (A-weighted) 127dB Damping Factor (1kHz) >650 (4Ω) Frequency Response (20 - 20kHz) <+/-0.4dB Inter-Modulation Distortion (TBD) >80dB below fundamental Total Harmonic Distortion (AES17, 1kHz, 4Ω) 0.003 % Channel Separation (1kHz, 8Ω) >90dB...
