La Crosse Technology WS6811 Quick Setup Manual

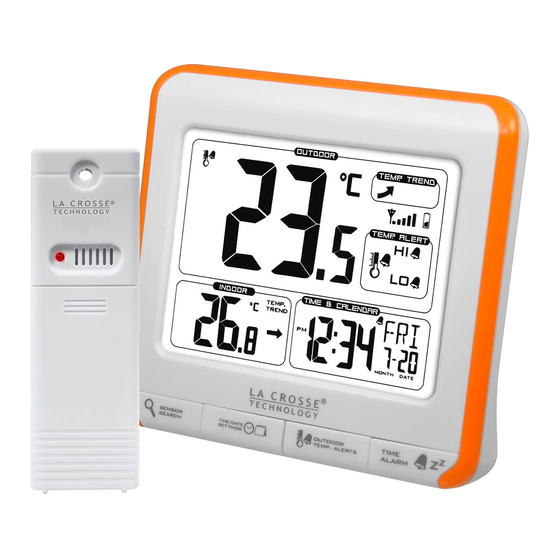

Wireless Temperature Station
WS6811 | Quick Setup Guide
The Wireless Temperature Station features manual set time, date,
alarm with snooze, indoor and outdoor temperature with high and
low outdoor temperature alarms. Large temperature digits provide
temperature at a glance. Wireless transmission range of over 300
feet (90 meters) in open air, from transmitter to temperature
station.
SETUP INSTRUCTIONS STEP BY STEP
STEP 1:
 Remove battery cover from the Temperature Station. Slide tab
down and pull out to remove the
battery cover.
 Insert 2 NEW AA batteries (not
included) into the back of the
Temperature Station. Observe the
correct polarity (see marking inside
the battery compartment).
 The Temperature Station will light up
and show, indoor temperature.
 Do Not Mix Old and New Batteries
 Do Not Mix Alkaline, Standard, Lithium or Rechargeable
Batteries
STEP 2:
 Ensure that the transmitter is within 3 meters (10 feet) of the
Temperature Station.
 Remove battery cover from transmitter: Slide the
battery cover down and lift off the front of the transmitter.
 Insert 2 NEW AA batteries into the transmitter. Observe
the correct polarity.
 Within 3 minutes the Temperature Station will show
readings in the outdoor temperature area on the LCD.
Note: Allow the Temperature Station and the transmitter to stay
within 3 meters (10 feet) of each other for the first 15 minutes of
set up.
TRANSMITTER SIGNAL STRENGTH
After the batteries are inserted, the temperature station will

search for the outdoor transmitter for 3 minutes.
The antenna symbol will flash during reception, and

temperature display will be dashes "---".
The antenna symbol will scroll during signal synchronization.

If synchronization fails once, the antenna will lose one bar.

If synchronization fails twice, the antenna will lose two bars.

If reception continuously fails to receive 5 times, the antenna

symbol will be shown as .
The antenna will show full display with successful RF

(radio frequency) reception.
TROUBLESHOOTING
If the outdoor temperature is not displayed after three minutes,

hold the SENSOR SEARCH button on the temperature station
for three seconds to search for outdoor transmitter.
Next remove the battery cover from the

transmitter then press the TX button to send
a signal.
If it still does not receive the outdoor

temperature, remove the batteries from both the temperature
station and the transmitter for 15 minutes repeat setup
instructions from step 1.
The maximum transmitting range in open air is over 300-feet (90

meters). Obstacles such as walls, windows, stucco, concrete,
and large metal objects can reduce the range.
TIME/DATE
The TIME/DATE button moves through the
program menu and confirm settings.
The UP arrow (on back) will increase a selected
value.
The DOWN arrow (on back) will decrease a
selected value.
SET TIME/DATE
Hold the TIME/DATE button for three seconds to enter time set
mode.
YEAR: The Year will flash, use the ARROW buttons to choose

the year, and press the TIME/DATE button to confirm and move
to the month.
MONTH: The Month will flash, use the ARROW buttons to

choose the month, and press the TIME/DATE button to confirm
and move to the date.
DATE: The Date will flash; use the ARROW buttons to choose

the date. Press the TIME/DATE button to confirm and move to
12/24 hour time format.
12/24-HOUR: The time format will flash, use the ARROW

buttons to choose 12-hour or 24-hour time format and press the
TIME/DATE button to confirm and move to hour.
LANGUAGE : The language will flash. Use the ARROW buttons

to select the language for weekday display (French, Italian,
Dutch, Spanish, Danish, English or German - refer to the table
hereunder) and press the TIME/DATE button to confirm and
move to hour.
1
