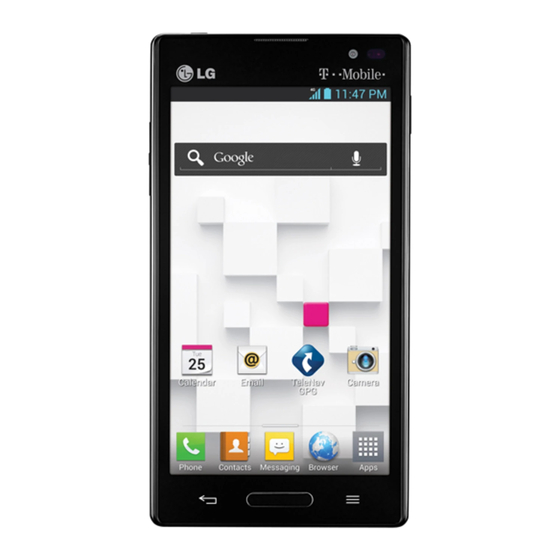

LG Optimus L9 Disassembly Manual

Hide thumbs Also See for Optimus L9:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
LG Optimus L9 - Disassemble Guide
•
TTT-9007 Small Phillips Screwdriver
•
TTT-9010 Plastic Opening Tools
•
TTT-9013 Spudger
•
Heat Gun / Blow Dryer
This guide will show you how to disassemble the LG Optimus L9 mobile phone, assisting in
making the repair of the device both simple and inexpensive. Following the steps we have
provided will help you quickly, and safely, replace not only a broken display, but also any
other internal components that may have become damaged.
You can find a full archive of fixez.com disassemble guides and videos, for numerous makes
and models of phones and tablets, by visiting http://www.fixez.com.
http://www.fixez.com/
Page 1 of 7

Advertisement

loading

Related Manuals for LG Optimus L9

Summary of Contents for LG Optimus L9

  • Page 1 • Heat Gun / Blow Dryer This guide will show you how to disassemble the LG Optimus L9 mobile phone, assisting in making the repair of the device both simple and inexpensive. Following the steps we have provided will help you quickly, and safely, replace not only a broken display, but also any other internal components that may have become damaged.

  • Page 2: Step 3 - Speaker Assembly

    • Insert the plastic opening tool into the notch in the front cover of the phone. Pry at this point to release the clips holding the back cover to the LG phone. Step 2 • With the back cover off, the battery is easily accessible.

  • Page 3: Step 6 - Rear-Facing Camera

    Step 6 – Rear-Facing Camera • Using the spudger, slightly pry up the rear facing camera’s connector from its connection in the motherboard. • You can now remove the rear-facing camera from the LG Optimus L9. http://www.fixez.com/ Page 3 of 7...
  • Page 4 Using the spudger, peel up the earpiece speaker from its housing in the phone. Do not try to remove the earpiece speaker from the LG Optimus L9; it is soldered to the motherboard. http://www.fixez.com/ Page 4 of 7...

  • Page 5: Step 11 - Headphone Jack

    LG Optimus L9–Disassemble Guide Step 10 • With all of the connections removed and the earpiece speaker pried up from its housing, the motherboard is free to be lifted and removed from the LG Optimus. Step 11 – Headphone Jack •...

  • Page 6: Step 14 - Display Assembly

    LG Optimus L9–Disassemble Guide Step 13 • The dock port assembly is held in place with a small amount of adhesive. Using the flat end of the spudger carefully peel up the entire dock port assembly and remove it from the L9.

  • Page 7: Final Layout

    LG Optimus L9–Disassemble Guide Step 16 • When the separation has started, insert the plastic opening tool in the gap and continue the separation around the perimeter of the phone. • You can now remove the display assembly from the LG Optimus L9.
