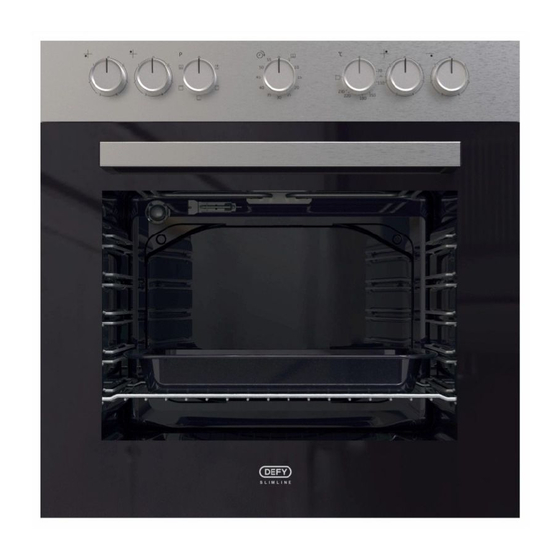

Defy Slimline Series Owner's Manual
Under counter ovens, eye level oven
Hide thumbs
Also See for Slimline Series:
- Instruction manual (20 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
OWNER'S
MANUAL
SLIMLINE
Under Counter Ovens
600 SU
- DBO 453
600 U -
DBO 451
SLIMLINE
Eye Level Oven
600 SE -
DBO 452
600 E -
DBO 450
www.defy.co.za
Part Number 068 451
PAGE 1 OF 19
All manuals and user guides at all-guides.com
You can rely on Defy. To simplify
INDEX
2
Introduction
2
Unpacking
2
Cupboard design
2
Electrical installation
3
Safety advice
4
Under-counter installation
5
Eye level installation
5
The control panel
6
Ringer timer
6
Selector switch
7
Using the oven -Baking and Grilling
8
Solid plate care guide
9
Solid plates
10 Ceran smooth top
11 Maintenance
12 Cleaning
13 Care guide for Stainless steel
15 Do's and Don'ts
16 Owner's responsibility
16 Problem check
17 Defy Service Centres
18 Warranty
19 Notes
20 Features
Advertisement
Table of Contents
Related Manuals for Defy Slimline Series
Summary of Contents for Defy Slimline Series
- Page 1 All manuals and user guides at all-guides.com OWNER’S MANUAL You can rely on Defy. To simplify SLIMLINE Under Counter Ovens 600 SU - DBO 453 600 U - DBO 451 SLIMLINE Eye Level Oven 600 SE - DBO 452 600 E -...
- Page 2 Cupboard design The appliance must be connected to the Your Defy oven is designed to give you mains through a double pole isolating • years of trouble free service, however it switch which has a minimum clearance is important that it be correctly between the contacts of 3 mm.
- Page 3 All manuals and user guides at all-guides.com Safety advice Do not place baking trays, dishes or • aluminium foil directly onto the bottom of This section contains safety instructions that the oven. The heat accumulation might will help you avoid risk of injury and damage. damage the bottom of the oven.
- Page 4 Do not discard the hob packaging before first retrieving this manual. • Defy Slimline under-counter ovens may be installed at eye level if so • desired. A wiring extension kit is available from the nearest Defy Service Centre.
- Page 5 All manuals and user guides at all-guides.com Eye-level oven installation. CUPBOARD APERTURE FOR MODEL 600SE AND 600E (MODELS 600SU AND 600U ARE OPTIONAL) + _ 3 + _ 3 Aperture 590 H x 565 W x 570 D Aperture Typical section showing + _ 3 ventilation requirements.
-
Page 6: Ringer Timer
All manuals and user guides at all-guides.com Ringer timer The ringer timer may be used for timing a cooking period of up to 60 minutes. • First wind the timer by turning the knob fully clockwise. • Return the knob to the desired time period. •... -
Page 7: Using The Oven
This product is supplied with one chromed oven shelf and an extra large roast pan. If • required, additional shelves, roast pans and broiler may be purchased from any Defy Service Centre. Set the selector knob to the desired baking mode. See descriptions on page 6. Top and •... - Page 8 SHORT PERIOD TO DRY TO INHIBIT CORROSION, PERIODICALLY APPLY SALT-FREE VEGETABLE OIL, TO CONSERVE ENERGYAND AVOID SPILLS WE RECOMMEND SEWING MACHINE OIL OR YOU KEEP A LID ON THE POT. ELECTRICAL HOT-PLATE POLISH, (AVAILABLE FROM DEFY SERVICE CENTRES) PAGE 8 OF19...
-
Page 9: Solid Plates
After cleaning, dry the plates by switching them on for a short while. • To prevent rust, periodically apply some sewing machine oil or electrical hotplate polish • available from Defy Service Centres. Extra attention is required in areas of high humidity or in close proximity to the sea. • Recommendations Use only pots with a solid level base. -
Page 10: Ceran Smooth Top
• Clean the hob with a nylon pad and ‘Smooth top cleaner’. A sample tube of cleaner is supplied with the unit and replacements are available from all Defy Service Centres. • If necessary, stubborn spills may be removed using the blade scraper provided. -
Page 11: Maintenance
All manuals and user guides at all-guides.com Maintenance. Lift-off oven door. The oven door may be removed to improve oven access during cleaning. Grasp the open door on Grasp the door on both Lift the door upwards and Open the door fully and both sides near the hinges sides near the hinges. - Page 12 All manuals and user guides at all-guides.com Cleaning. Switch off the electrical power supply before cleaning any part of the oven. General cleaning. Wipe down cabinet, door, control knobs, trims and handles with a hot soapy cloth. • Use only liquid household cleaners and avoid abrasive powders, scouring pads and •...
-
Page 13: Care Guide For Stainless Steel
All manuals and user guides at all-guides.com Care guide for stainless steel. Models 600SU and 600SE Stainless steel is not adversely affected by normal household use but because of it’s reputation for durability, it is sometimes assumed to be indestructible, and therefore subjected to misuse or even abuse. - Page 14 Buff to shine. Stubborn stains and Use a little Ceran cleaning Repeat several times rather Discolouration. paste. (available from Defy than resorting to a single Service Centres). aggressive cleaning method. Rinse and dry. Grease and fat splatter.
- Page 15 All manuals and user guides at all-guides.com OVER THE YEARS, DEFY'S SERVICE CENTRES HAVE IDENTIFIED THIS LIST OF DO'S AND DON'TS AS BEING IMPORTANT FOR CUSTOMER SATISFACTION AND SAFETY. PLEASE READ IT AND FAMILIARISE YOURSELF WITH ITS CONTENTS. Don’t Clean your appliance regularly. This Use pots which are smaller than the •...
-
Page 16: Owner's Responsibility
If you have followed the instructions and still have a problem, contact the nearest Defy Technical Support Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. -
Page 17: Defy Service Centres
Defy Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Technical Support Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it. -
Page 18: Warranty
All manuals and user guides at all-guides.com Warranty. This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance. - Page 19 All manuals and user guides at all-guides.com Notes: For future reference, record the listed information in the space below. The Serial number may be found on the label attached to the oven side trim. SERIAL No DATE OF PUCHASE PURCHASED FROM PAGE 19 OF 19...
- Page 20 Convenient minute minder. Roast pan and wire rack. Accessories for cooking convenience. You can rely on Defy. To simplify The Manufacturer strives for continuous improvements. For this reason, the text and illustrations in this book are subject to change without notice.
