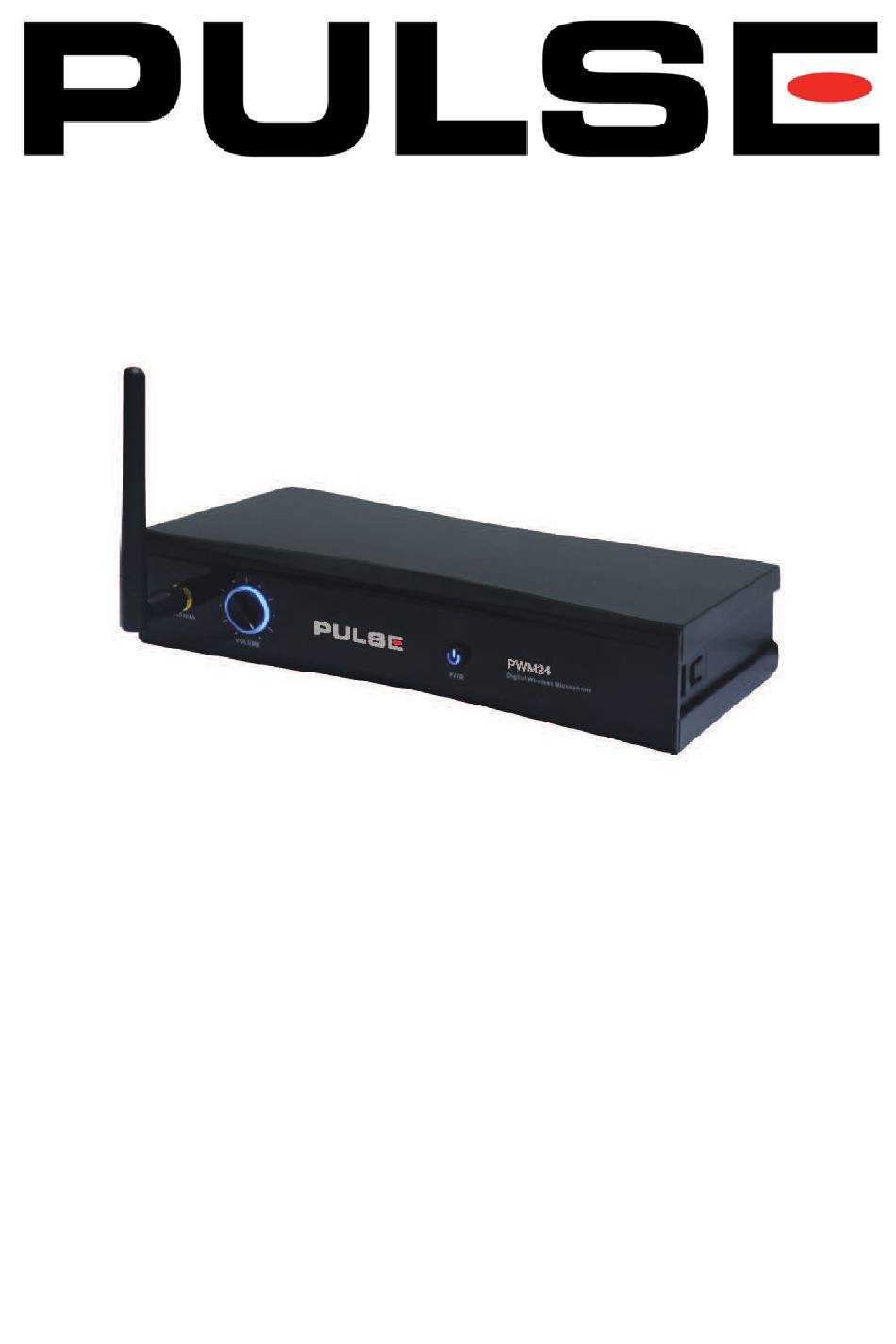

- Page 1 Models: PWM24-HH & PWM24-LAV-HSM 2.4GHz Wireless Handheld Microphone System & 2.4GHz Wireless Belt Pack Microphone System...
-
Page 2: Important Safety Information
Remove dead batteries, or if the appliance is not going to be used for a long time. • Never mix old and new batteries together or different types of batteries. • Never dispose of batteries in a fire or attempt to recharge ordinary batteries. WHAT’S INCLUDED PWM24-HH PWM24-LAV-HSM • 1 Receiver • 1 Receiver •... -
Page 3: Installation
INSTALLATION Location • To ensure the best possible performance the receiver should be at least one metre above the ground and at least one metre away from a wall or metal surface to minimise reflection. • Keep the receiver antenna away from noise sources, other digital equipment, microwave ovens and any large metal objects. - Page 4 Connect the DC plug with the supplied in-line AC adaptor. 5. Mono ¼” jack plug • TRS connection used for mono unbalanced audio. MICROPHONE TRANSMITTER CONTROLS & FUNCTIONS (PWM24-HH) 6. Power/Pair button • Power on/off the transmitter by pressing and holding the button for 0.5 seconds.
- Page 5 BELT PACK TRANSMITTER CONTROLS & FUNCTIONS (PWM24-LAV-HSM) Controls and Functions 9. Mini 4P Connector This connector is used to connect the unit with the clip to microphones, for example, the clip microphone or the lavalier (inc. in model PWM24-LAV-HSM). Pin 1 - GND Pin 3 - For guitar, bass and keyboards Pin 4 - For dynamic or condenser microphones Pin 2 - Phantom power supply for condenser microphones...
-
Page 6: Specifications
PAIRING INSTRUCTION • Power on the receiver and the handheld digital wireless microphone or the belt pack transmitter, then press and hold the pair button on them at the same time for about five seconds. • The LED of the microphone or the belt pack and the volume circle will blink to show that they are in pairing status.
