LiftMaster MyQ Retrofit (888LM + 828LM) Installation Guide
Required items for installations
Garage door compatibility

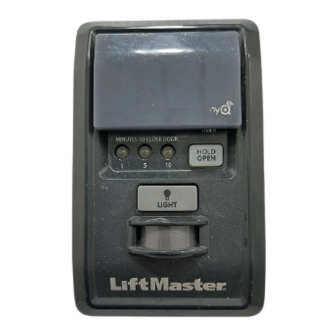

MyQ Control Panel (888LM)
MyQ Internet Gateway (828LM)
Compatible door opener
https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Garage/Liftmaster_MyQ_888LM___828LM/LiftMaster_MyQ_Re
Updated: Thu, 08 Nov 2018 18:23:35 GMT
1
Advertisement
Related Manuals for Chamberlain MyQ Retrofit 888LM
Summary of Contents for Chamberlain MyQ Retrofit 888LM
- Page 1 LiftMaster MyQ Retrofit (888LM + 828LM) Installation Guide Required items for installations Garage door compatibility MyQ Control Panel (888LM) MyQ Internet Gateway (828LM) Compatible door opener https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Garage/Liftmaster_MyQ_888LM___828LM/LiftMaster_MyQ_Re Updated: Thu, 08 Nov 2018 18:23:35 GMT...
- Page 2 Opener Quick ID LiftMaster, Chamberlain, Sears/Craftsman, Raynor and Access opener. ALL with a purple learn button with purple antenna wire. MOST with an orange/red learn button with gray antenna wire. The following models are incompatible: LiftMaster compatible brands made after 1998 •...
- Page 3 Connect LiftMaster Internet Gateway 1. Connect Ethernet cable to router and the internet gateway. 2. Connect power to the internet gateway. 3. When the internet gateway connects to the internet, the green light stops blinking and lights solid. If the green light does not light solid, check the power, router, and internet connections to the internet gateway.
- Page 4 828LM LED guide LED color Description The Gateway has an IP address Green blinking from the router, but is not connected to the internet. The Gateway has an active internet Green solid connection. Infrequent blinking indicates data traffic. The Gateway has learned at least one MyQ device.
- Page 5 4. Click Equipment. 5. Click emPower Devices. 6. Click LiftMaster. 7. Click Add Gateway. 8. In the Serial Number field, enter the 828LM Internet Gateway’s serial number. 9. After a few minutes, the LiftMaster equipment page should show the Internet Gateway in the equipment list. https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Garage/Liftmaster_MyQ_888LM___828LM/LiftMaster_MyQ_Re Updated: Thu, 08 Nov 2018 18:23:35 GMT...
- Page 6 10. On the LiftMaster equipment page, click Add Device under Device Commands for the Internet Gateway to add a garage door opener to. This puts the Internet Gateway into learn mode so that MyQ Control Panel (888LM) can be added. A yellow light should turn on at the 828LM Internet Gateway. Note: If the yellow light does not turn on, click Update Device List &...
- Page 7 c. Verify Garage Door Control and LiftMaster Integration are selected as add-ons to the account's service package. 4. Tap Equipment. 5. Tap LiftMaster Devices. 6. Tap Add Gateway. 7. In the Serial Number field, enter the 828LM Internet Gateway’s serial number. 8.
- Page 8 10. After the yellow light is on at 828LM Internet Gateway, go to the MyQ Control Panel (888LM) and push the learn button twice. ◦ On the 888LM Control Panel, the red LED turns on. ◦ On the 828LM Internet Gateway, the LED turns blue once the device is learned in. 11.
-
Page 9: Troubleshooting
◦ On the 828LM Internet Gateway, the LED turns blue once the device is learned in. 9. Return to the Garage page and click Check for New Devices. 10. Repeat steps 6-9 if initially unsuccessful. Also, verify the model number of the garage door opener to verify it is compatible. - Page 10 Complete list of compatible garage door openers https://answers.alarm.com/ADC/Partner/Installation_and_Troubleshooting/Garage/Liftmaster_MyQ_888LM___828LM/LiftMaster_MyQ_Re Updated: Thu, 08 Nov 2018 18:23:35 GMT...
