22in Recycler® Lawn Mower
Model No. 20066—Serial No. 270000001 and Up
Model No. 20067—Serial No. 270000001 and Up
Introduction
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
You may contact Toro directly at www.Toro.com for
product and accessory information, help finding a dealer,
or to register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model and

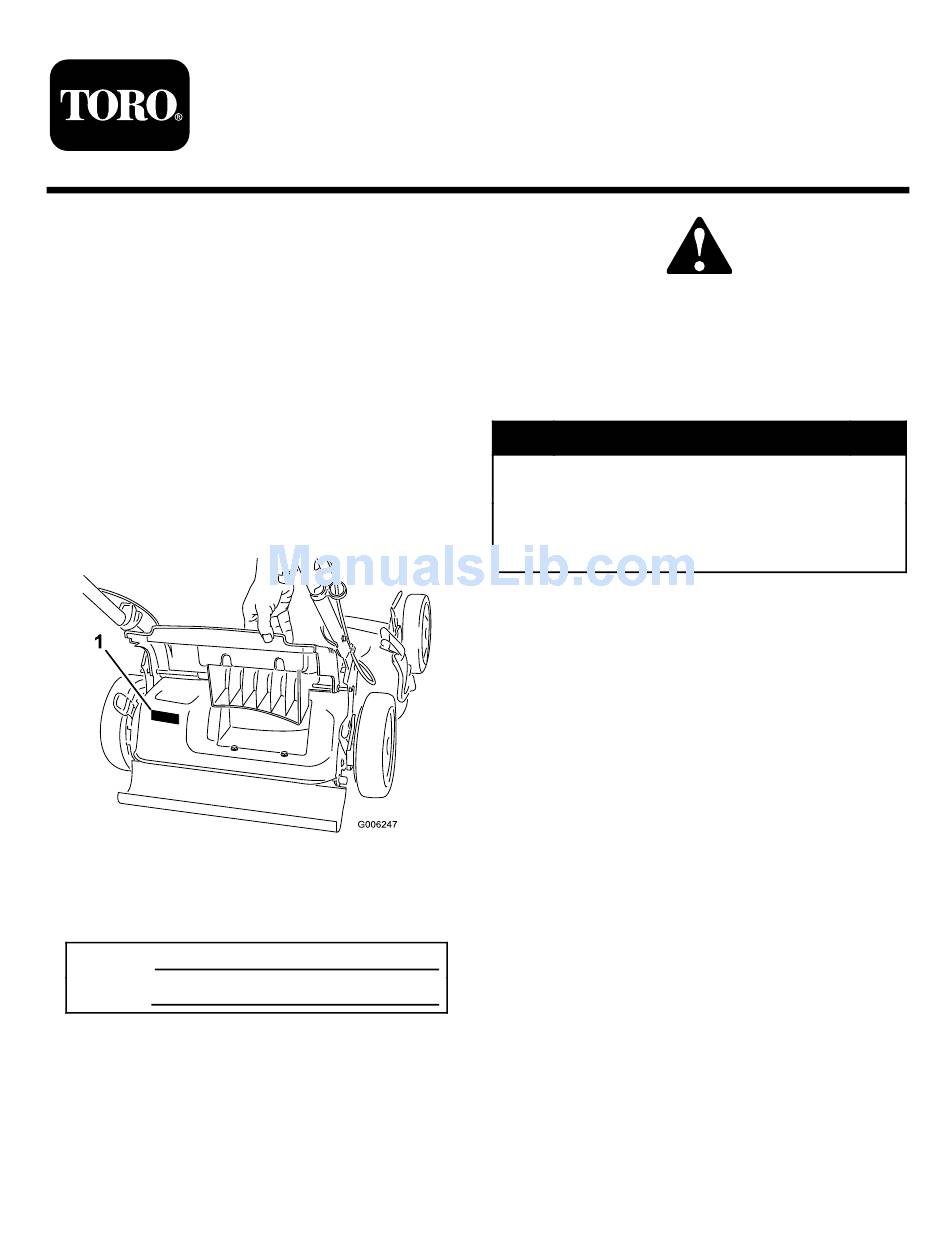

serial numbers of your product ready. Figure 1 identifies the
location of the model and serial numbers on the product.
Figure 1
1. Model and serial number plate
Write the product model and serial numbers in the space
below:
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or
death if you do not follow the recommended precautions.
© 2007—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Figure 2
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
Important: This engine is not equipped with a
spark arrester muffler. It is a violation of California
Public Resource Code Section 4442 to use or operate
the engine on any forest-covered, brush-covered, or
grass-covered land. Other states or federal areas may
have similar laws.
This spark ignition system complies with Canadian
ICES-002
The enclosed Engine Owner's Manual is supplied
for information regarding the US Environmental
Protection Agency (EPA) and the California Emission
Control Regulation of emission systems, maintenance,
and warranty. Replacements may be ordered through
the engine manufacturer.
For models with stated engine horsepower, the gross
horsepower of the engine was laboratory rated by the engine
manufacturer in accordance with SAE J1940. As configured
to meet safety, emission, and operating requirements, the
actual engine horsepower on this class of lawn mower will
be significantly lower.
Register at www.Toro.com.
Form No. 3358-405 Rev A
Operator's Manual
Warning
CALIFORNIA
Proposition 65 Warning
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Toro 20066
Summary of Contents for Toro 20066
- Page 1 Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. Figure 1 identifies the location of the model and serial numbers on the product.
-
Page 2: General Operation
Safety This lawn mower meets or exceeds the CPSC blade safety requirements for walk-behind rotary lawn mowers and the B71.1 specifications of the American National Standards Institute in effect at the time of production. Read and understand the contents of this manual before you start the engine. -
Page 3: Safety And Instructional Decals
• Extinguish all cigarettes, cigars, pipes, and other sources of ignition. • Use only an approved gasoline container. • Never remove gas cap or add fuel with the engine running. Allow engine to cool before refueling. • Never refuel the machine indoors. •... - Page 4 104-7403 Model 20067 only 112-8868...
- Page 5 1. Warning—read the Operator’s Manual for information on charging the battery; contains lead; do not discard. 2. Read the Operator’s Manual. 105-1295 108-4791 Model 20067 only 104-7953 Model 20067 only...
-
Page 6: Unfolding The Handle
Setup Important: Remove and discard the protective plastic sheet that covers the engine. 1. Unfolding the Handle Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cables when folding or unfolding the handle. -
Page 7: Product Overview
Figure 7 2. Insert the fuse into the fuse holder (Figure 8). Figure 8 Note: Your mower comes with a fuse in the owner’s packet and another fuse in the battery box. 3. Install the battery cover. 4. Charging the Battery Model 20067 only Refer to Charging the Battery in the Maintenance section. -
Page 8: Operation
Operation Filling the Fuel Tank Gasoline is extremely flammable and explosive. A fire or explosion from gasoline can burn you and others. • To prevent a static charge from igniting the gasoline, place the container and/or mower directly on the ground before filling, not in a vehicle or on an object. -
Page 9: Adjusting The Cutting Height
Adjusting the Cutting Height Adjusting the cutting height may bring you into contact with the moving blade, causing serious injury. • Stop the engine and wait for all moving parts to stop. • Do not put your fingers under the housing when adjusting the cutting height. If the engine has been running, the muffler will be hot and can severely burn you. -
Page 10: Starting The Engine
Starting the Engine 1. Firmly push in the primer 3 times with your thumb, holding the primer in for a second before releasing it each time (Figure 14). Figure 14 Note: If the air temperature is below 55°F (13°C), firmly push the primer in 5 times. 2. -
Page 11: Using The Self-Propel Drive
Check the grass bag frequently. If it is damaged, install a new Toro replacement bag. If the side discharge chute is on the mower, remove it and lock the side discharge door (refer to Removing the Side Discharge Chute) before bagging the clippings. -
Page 12: Side-Discharging The Clippings
Figure 20 3. Lower the rear door. Removing the Grass Bag To remove the bag, reverse the steps above. Side-discharging the Clippings Use the side discharge for cutting very tall grass. If the bag is on the mower, remove it before side-discharging the clippings. -
Page 13: Operating Tips
• For best performance, install a new blade before the cutting season begins. • Replace the blade when necessary with a Toro replacement blade. Cutting Grass • Cut only about a third of the grass blade at a time. Do... -
Page 14: Recommended Maintenance Schedule(S)
• Alternate the mowing direction. This helps disperse the clippings over the lawn for even fertilization. • If the finished lawn appearance is unsatisfactory, try one or more of the following: – Replace the blade or have it sharpened. – Walk at a slower pace while mowing. –... -
Page 15: Preparing For Maintenance
Preparing for Maintenance 1. Stop the engine and wait for all moving parts to stop. 2. Disconnect the spark plug wire from the spark plug and hook it onto the retaining post (Figure 24) before performing any maintenance procedure. Figure 24 3. -
Page 16: Lubricating The Wheel Gears
Figure 29 5. Install the dipstick securely. 6. Dispose of the used oil properly at a local recycling center. Charging the Battery Model 20067 only Warning CALIFORNIA Proposition 65 Warning Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. -
Page 17: Adjusting The Self-Propel Drive Cable
Figure 32 4. Remove the blade, saving all mounting hardware (Figure 32). 5. Install the new blade and all mounting hardware (Figure 33). Figure 33 Important: Position the curved ends of the blade to point toward the mower housing. 6. Use a torque wrench to tighten the blade bolt to 60 ft-lb (82 N⋅m). -
Page 18: Cleaning The Mower
Cleaning the Mower The mower may dislodge material from under the mower housing. • Wear eye protection. • Stay in the operating position (behind the handle) when the engine is running. • Do not allow bystanders in the area. For best results, clean the mower soon after you have completed mowing. -
Page 19: Folding The Handle
Folding the Handle Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cables when folding or unfolding the handle. • If a cable is damaged, contact an Authorized Service Dealer. 1. -
Page 20: The Toro Total Coverage Guarantee
If you think that your Toro Product contains a defect in materials or workmanship, or if a normal, able-bodied adult can no longer start your product’s engine in one or two pulls, follow this procedure: Contact any Authorized Toro Service Dealer to arrange service at their dealership. To locate a dealer convenient to you, refer to the Yellow Pages of your telephone directory (look under “Lawn Mowers”) or access our website at www.Toro.com.
