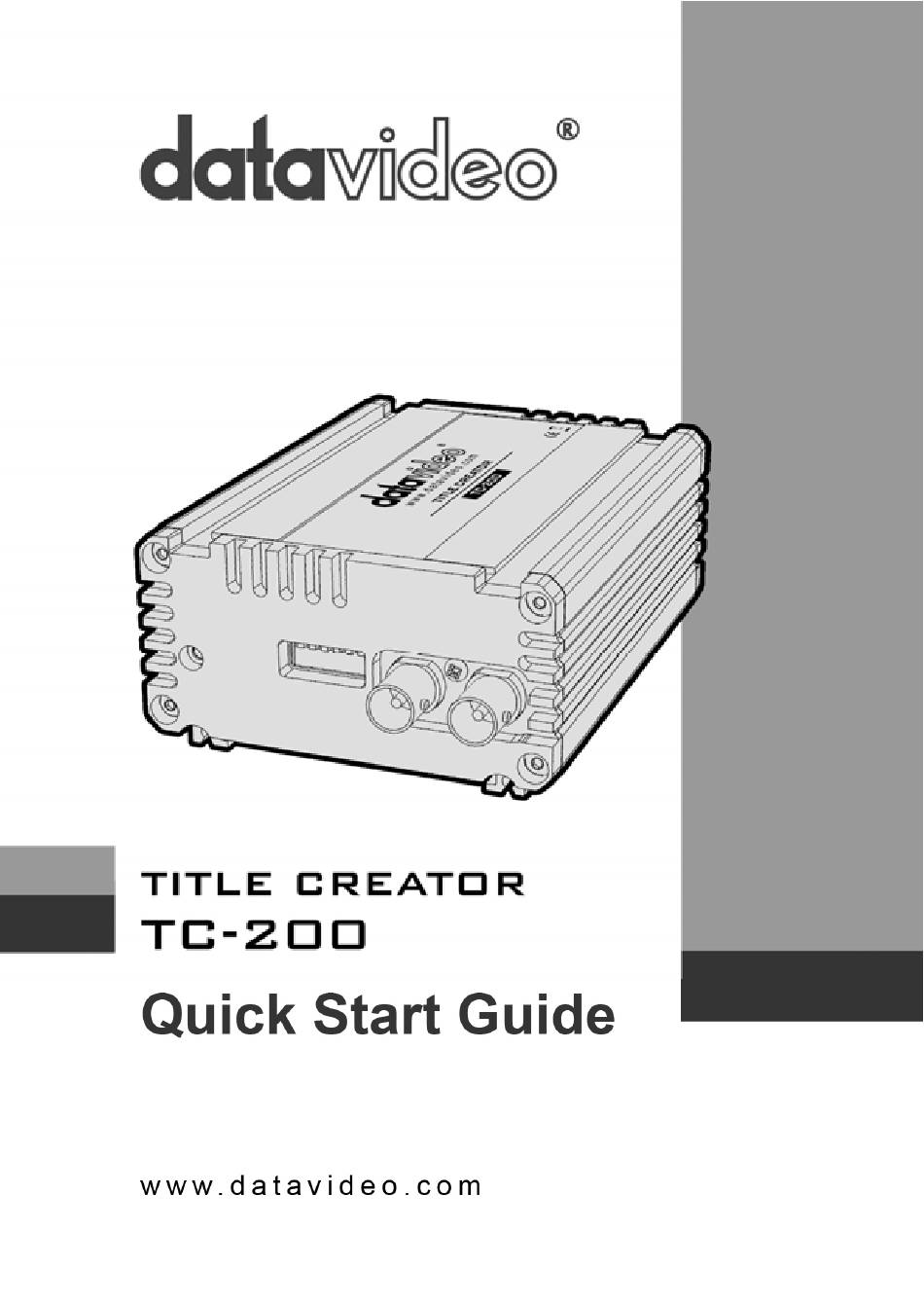

Datavideo TC-200 Quick Start Manual
  1. Manuals
  2. Brands
  3. Datavideo Manuals
  4. Inverter
  5. TC-200
  6. Quick start manual
Datavideo TC-200 Quick Start Manual

Datavideo TC-200 Quick Start Manual

Title creator
Hide thumbs Also See for TC-200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Datavideo TC-200

Summary of Contents for Datavideo TC-200

  • Page 2 SCHEMA CABLAGE GENERATEUR CARATERE MONITEUR HDSDI 1080 I HDSI TC-200 DATAVIDEO HDMI avec sortie HDMI + logiciel CG-200 WIN XP/7/8 CEV.FR...

  • Page 3: Guide De Démarrage Rapide

    WINDOWS XP ou WINDOWS 7 Processeur à 3 GHz 2 Go de RAM Boîte TC-200 dispose de 3 modes de travail 1. entrée HDMI est CG ; SDI en est vidéo en direct, donc sorties SDI est la vidéo en direct et la superposition CG (2 signal identique, Référence avec le signal interne...
  • Page 4 DC In pour la prise de courant. Installer CG-200 Se connecter à l'ordinateur portable ou PC TC-200 utilisations réseau Ethernet et utilise ensuite le contrôle logiciel du CG-200 toutes les fonctions. Etape 1: cliquez sur l'icône pour installer le logiciel CG-200 Etape 2: Logiciel installation étape par étape la CG à...
  • Page 5 Concepts Le concept principal de CG-200 est page – zone d'écran initialement transparent qui contient des frames – objets rectangulaires que vous pourrez affichée individuellement. Page peut être enregistrée dans un fichier de disque et chargée plus tard dans son ensemble ou en partie. Nombre maximal de cadres page est actuellement 256.
  • Page 6 Sources texte sont : Texte de l'image – texte entré lorsque le cadre a été créé est utilisé comme-est, sans aucune modification. Horloge – %1 % variable dans le texte de l'image est remplacé par heure et la date système actuelle. %1 % variable n'est pas trouvée, l'ensemble du texte serait remplacé.
  • Page 7 o ANSI/OEM – le fichier texte utilise le ANSI 7 bits ou 8 bits OEM encodage. Ne convient pas pour les caractères chinois. o UNICODE/UNICODE Big-Endian – fichier texte utilise le codage de 16-bit UNICODE Little-Endian ou Big - Endian. Le bloc-notes de Windows utilise ce format.

  • Page 8: Interface Utilisateur

    Arrêté – vue n'est pas affichée sur la sortie HDMI. Jouer – vue est affichée sur la sortie HDMI. Compteur de vues Affichage temps est compté, déplacement de texte et/ou animation joue. En pause – vue est affichée sur la sortie HDMI. Compteur de temps affichage frame est arrêté. Déplacement de texte et/ou animation reste en pause.
  • Page 9 Fichier Nouveau – Commencez avec le mode page vide. Ouvert – ouvert page fichier. Enregistrer – Enregistrer la vue actuelle dans un fichier de page. Enregistrer en tant que – Enregistrer la vue actuelle dans un fichier de page avec un nouveau nom.
  • Page 10 4:3. Remarque Il y a 2 paramètres nécessaire à vérifier avant d'utiliser les TC-200 dans l'ordinateur portable. Overscan : Conception de CG-200 par défaut repose sur l'overscan. Si le paramètre se trouve dans la carte VGA, la mise doivent être modifiées pour surbalayage comme ci-dessous.

  • Page 11: Packing List

    - 3 GHz Processor - 2 GB RAM TC-200 Box has 3 modes to work 1. HDMI input is CG ; SDI In is live video so SDI outputs is the live video and CG overlay (2 identical signal , Reference with the internal signal ) 2.
  • Page 12 Install CG-200 TC-200 uses Ethernet Network connect to Laptop or PC, and then uses CG-200 Software control the all functions. Step1: Please click the icon to install CG-200 Software Step2: Step by Step install the CG software to finish. Step3: When finished, please double click the icon to execute the software.
  • Page 13 Typical Link Map...

  • Page 14: Connections And Controls

    Connections & Controls Front Panel Mode Select The mode switching is performed by means of a 6 key dip switches. About DIP switch modes please see the TC-200 Settings. SDI Output BNC connect for SDI Output (Fill source & Key source).

  • Page 15: Rear Panel

    Rear Panel HD/SD - SDI Input BNC connect tor for SDI Input. PC Input (HDMI) Video input from PC (by HDMI cable). Ethernet Port (RJ-45) 100/10M base Ethernet Network interface.  FW upgrade  Remote control (not available yet) DC In Socket Connect the supplied 12V PSU to this socket.
  • Page 16 TC-200 Settings Mode switching is by program or DIP switches on the hardware unit. The mode switching is performed by means of a 6 key dip switches.  The first 3 key-switchers Supported modes: SDI In: HDMI in (from PC)

  • Page 17: Technical Details

    CG-200 Function reference Technical details Exact 1920x1080 pixel-to-pixel output is required on HDMI channel, otherwise separation of picture and alpha channels wouldn’t work properly! Unfortunately some graphic adapter drivers enable over scan or underscan mode by default. This leads to either black borders at the edges of the picture or zoomed picture with parts of it not visible at all.
  • Page 18 Concepts CG-200 main concept is page – initially transparent screen area that contains objects – rectangular objects that can be individually displayed. Page can be saved to a disk file and loaded later as a whole or partially. Maximum number of objects on page is currently 256.

  • Page 19: Object Properties

    Object properties Background Color: Change color by choosing from the palette or defining exact RGB values. Transparency: Change background transparency from 0% (completely opaque) to 100% (completely transparent). Text Transparency: Change text transparency from 0% (completely opaque) to 100% (completely transparent). Movement: Fixed –...
  • Page 20 Default format string is %H:%M which translates to hours and minutes in 24-hr format. Format string options are: %a - Abbreviated weekday name %A - Full weekday name %b - Abbreviated month name %B - Full month name %c - Date and time representation appropriate for locale %d - Day of month as decimal number (01 - 31) %H - Hour in 24-hour format (00 - 23) %I -...
  • Page 21 Text in this object is updated every second. Text file – %1% variable in object text will be replaced by specified file contents. If %1% variable is not found, whole text would be replaced. CSV file – each variable in object text will be replaced by value of the corresponding column in CSV file.
  • Page 22 Text formatting CG-200 uses Windows RTF component as fully functional text editor. Text inside each object can be edited in WYSIWYG style. Standard Cut/Copy/Paste and multilevel Undo commands are supported. Text editor follows well-known Microsoft Word UI approach. Font (character) formatting includes selecting font name and size, bold, Italic and/or underline options, changing text and background color.
  • Page 23 Presentation In CG-200 each object follows presentation (display) sequence that starts when play command is given. All times are measured in seconds and thousands of a second (milliseconds). Timing is accurate down to 20 msec. (50 Hz PAL mode) or 17 m sec (60 Hz NTSC mode). Presentation sequence: Start delay –...
  • Page 24 Commands Each object on a page is in one of the following states: Stopped – object is not displayed on HDMI output. Playing – object is displayed on HDMI output. Object display time counter is ticking, moving text and/or animation is playing. Paused –...
  • Page 25 Adding pictures and animations CG-200 supports following image file formats: PNG, with optional transparency / alpha-channel TGA, with optional transparency / alpha-channel GIF, with optional transparency CG-200 supports following animation file formats: GIF, with optional transparency TXT – text file with each line containing picture file name and optional duration in msec, separated with a semicolon.

  • Page 26: User Interface

    User interface CG-200 follows Microsoft recommended design guidelines for SDI (Single Document Interface) applications. Frequently used commands are available on the toolbars and as keyboard shortcuts. Right-click context menus are available for selected object, selected text inside the object and page files list. Main window consists of a left panel with page files list and right panel with current page view.
  • Page 27 Menus File  New – start with empty page view.  Open – open saved page file.  Save – save current view as a page file.  Save As – save current view as a page file with a new name. ...
  • Page 28 All Objects play/pause/end/stop – control all objects playback.  About – display program information, version number and copyright. Settings  Language – select UI language.  Run initial setup wizard – setting TC-200 to the initial.  Preferences – change preferences.
  • Page 29 Preferences This window lists application configuration and preferences:  Mode – HDMI output mode. This setting must match input setting in the hardware.  HDMI connection – select which video output to use (if PC has more than one video output). Auto should work for most configurations.
  • Page 30 Note There are 2 settings need to be checked in laptop before using TC-200. Overscan: CG-200 default design is based on overscan. If you can find the setting in VGA card, the setting should be changed to overscan as below.

  • Page 31: Specification

    Specification Frame text Clock Text Source Text file CSV file File Format JPG, PNG, BMP, TGA, GIF Animation Format HDMI input x 1 HD-SDI input x 1 I / O HD-SDI output x 1 LAN port x 1 CG overlay : HDMI input is CG; SDI in is live video Genlock mode HDMI input is CG;...
